DHP200 Head-end processor
Headend Processor

DHP200 Head-end processor

RF output (F type): 16/32 channels of multiplexing, scrambling and modualtion.. Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable. RF output (F type): 8/16 channels of multiplexing and modulation.

Key Specifications

  • HEVC/H.265 MPEG-4 AVC/H.264
  • FEC/ Convolution Rate 1/2, 2/3, 3/4, 5/6, 7/8
  • 4*1080P-60/59.94 4*1080P-60,4*1080P-59.94
  • 4*1080I-50 4*1080P-50,4*1080P-25
  • 4*1080I-60/59.94 4*1080P-60,4*1080P-30
  • 4*720P-60/59.94 4*720P-60,4*720P-59.94
  • 4*2160P_25/30/29.97 2*2160P_25/30/29.97
  • Standard DVB-S
Request Quote WhatsApp

Overview

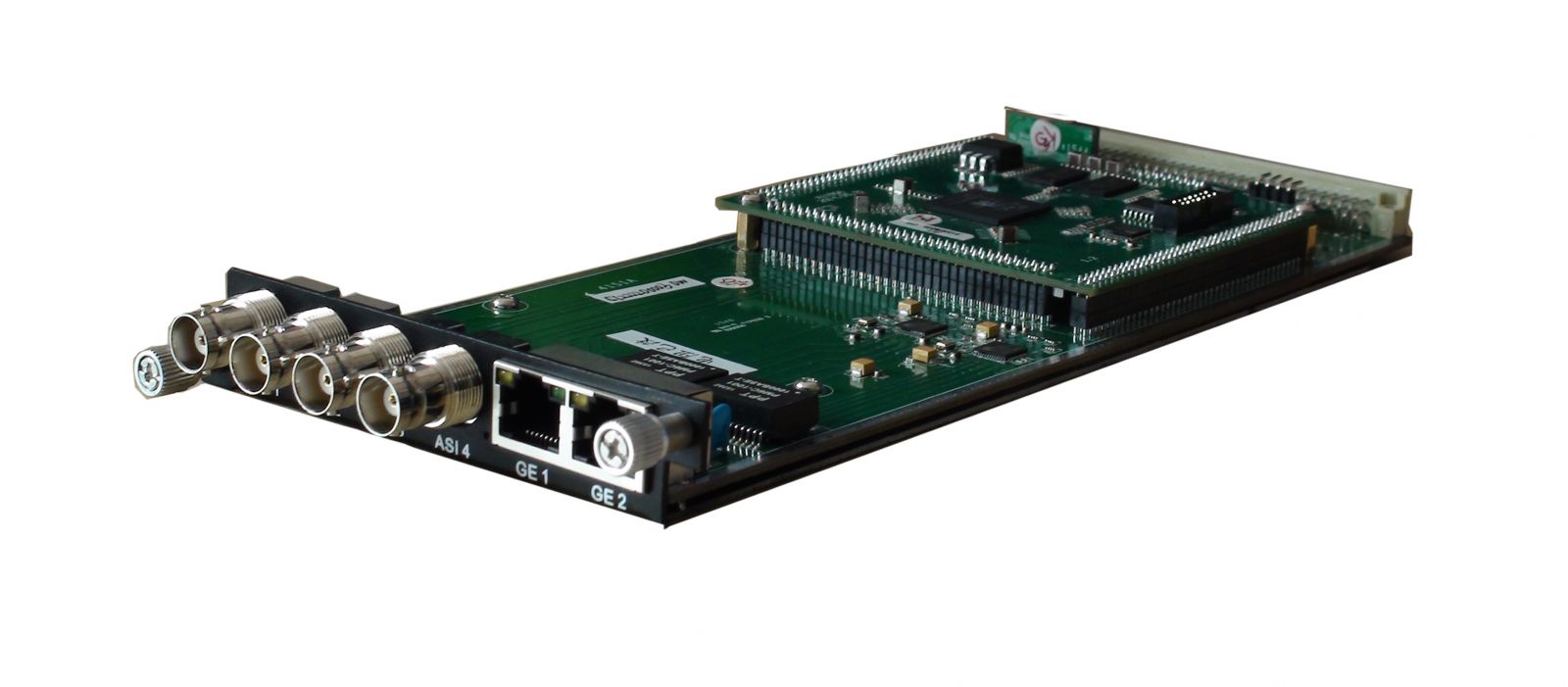

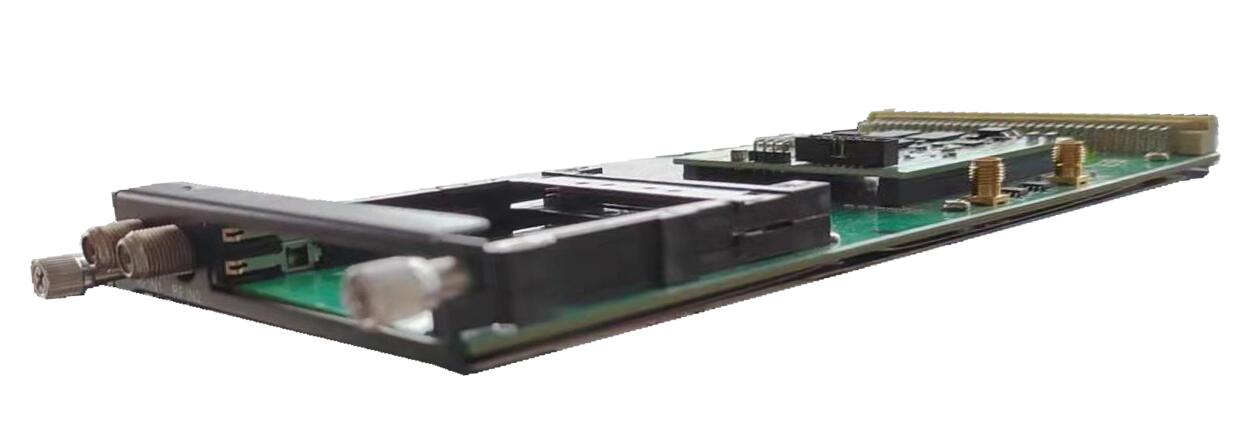

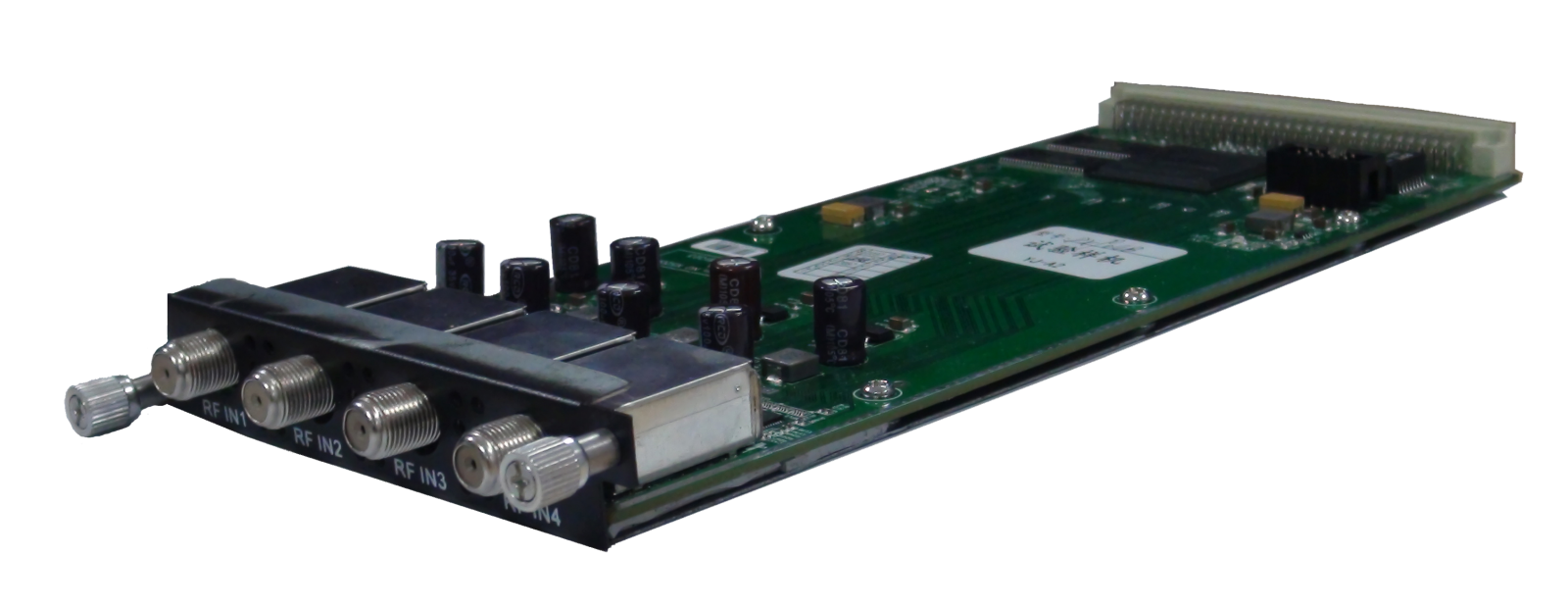

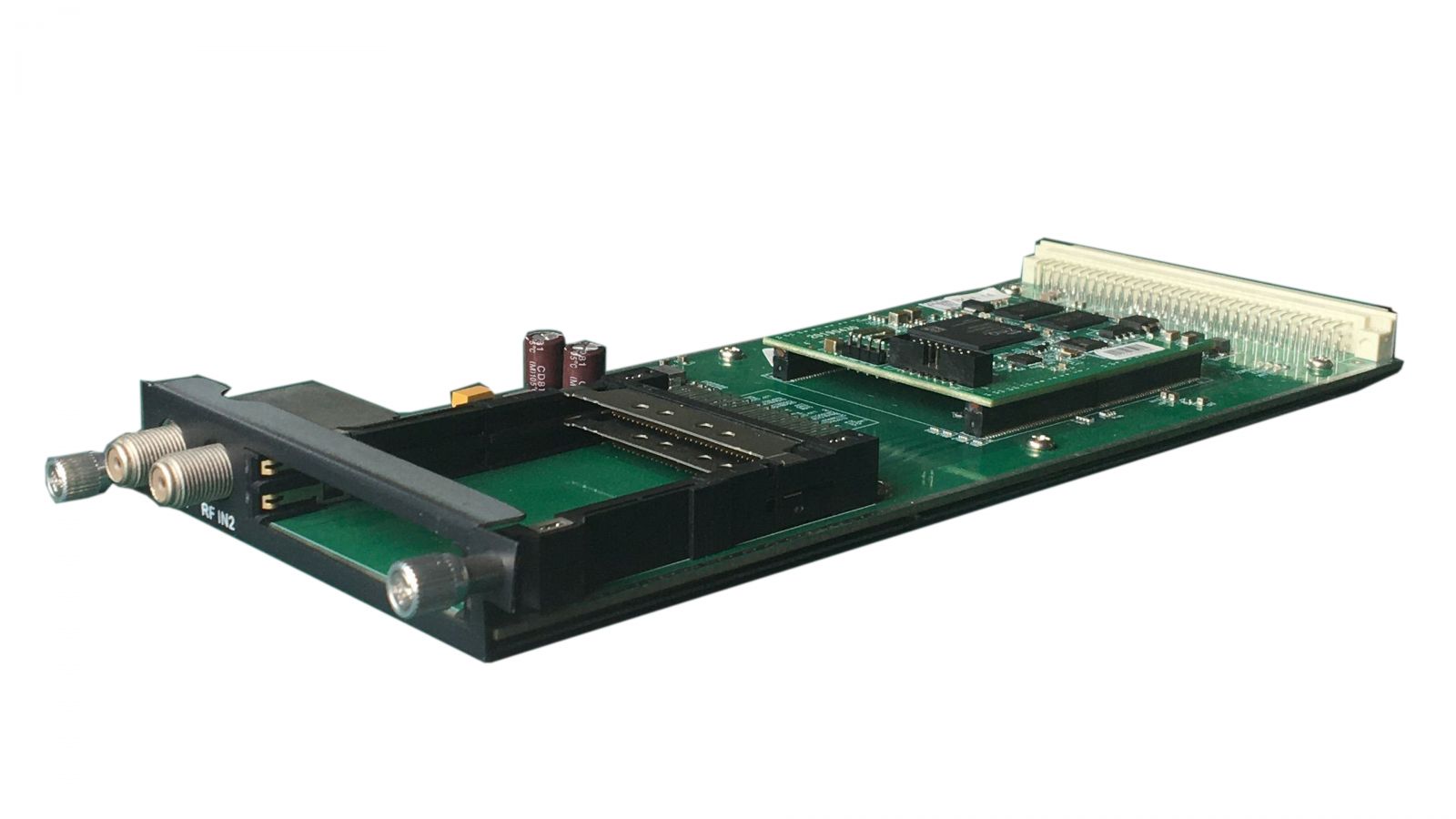

DHP200 DTV head-end processor is the newest generation of professional head-end processing equipment. This 1-U case comes with 3 independent module slots, and it can be combined with different modules as your head-end system according to your operation requirements. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing. DHP200 head-end processor brings a whole new level of intelligence and high performance to the network at a cost effective price. Carrier 1~24 out thru RF1, 25~48 thru RF2, each RF supports 384M bandwidth Key Features: Modularized plug-in design, 1U chassis and 3 slots; Support flexible combination of any different type of modules; Maximum 800M data processing; Support 1 GE bi-direction (Data port), RJ45 interface; Support Web management, Update via web Specifications: Video format: HEVC/H.265 & MPEG 4 AVC/H.264; Video format: HEVC/H.265 & MPEG 4 AVC/H.264; Video/Audio Out: 4 HDMI output with 1 channel stereo audio embedded in each port; Video Format: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+

Full Specifications

HEVC/H.265 MPEG-4 AVC/H.264
4*1080P-60/59.94 4*1080P-60,4*1080P-59.94
4*1080I-50 4*1080P-50,4*1080P-25
4*1080I-60/59.94 4*1080P-60,4*1080P-30
4*720P-60/59.94 4*720P-60,4*720P-59.94
HEVC/H.265 MPEG-4 AVC/H.264
4*1080P-60/59.94 4*1080P-60,4*1080P-59.94
4*1080I-50 4*1080P-50,4*1080P-25
4*1080I-60/59.94 4*1080P-60,4*1080P-30
4*720P-60/59.94 4*720P-60,4*720P-59.94
HEVC/H.265 MPEG-4 AVC/H.264
4*1080I-50 4*1080P-50
4*1080I-60/59.94 4*1080P-60/59.94
HEVC/H.265 MPEG-4 AVC/H.264
4*2160P_25/30/29.97 2*2160P_25/30/29.97
Standard DVB-S
Outer coding RS Coding
Inner coding Convolution
Constellation QPSK
FEC/ Convolution Rate 1/2, 2/3, 3/4, 5/6, 7/8
