DHP200A 10G IP QAM Modulator
48/96 non-adjacent carrier outputs, 384Mbps bandwidth for each RF port. 48/96 non-adjacent QAM carrier outputs (48 channels out per card). 48 IP output over UDP/RTP/RTSP, 2*100/1000M self-adaption, Ethernet Ports,…
Key Specifications
- QAM Channel 48/96 non-adjacent carrier outputs, 384Mbps bandwidth for each RF port
- Constellation 16, 32, 64 , 128, 256QAM
- J.83B/C Constellation :64/256QAM
- Output Level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
- Symbol Rate 3600~7000Ksps, 1ksps stepping5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
- Transmission Rate Max 960Mbps for each GE input, andMax 9600Mbps for each 10G SFP+/SFP input
- Transport Protocol TS over UDP/RTP, unicast and multicast, IGMP V2/V3
- Mux Max PIDs Remapping
Overview

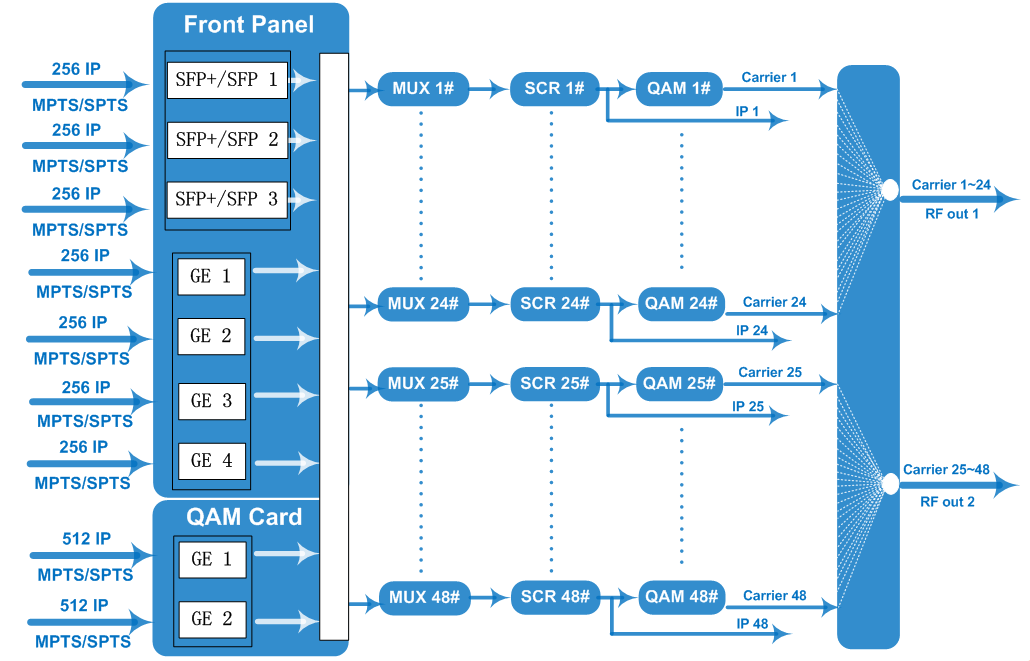

DHP200A 10G IP QAM processor is an all-in-one device developed by DEXIN. It integrates multiplex, scrambler and modulator in one body with 48 (or 96) DVB-C QAM channels output through 2 (or 4) RF ports. With 10G switch built in, it can process both 10G optical signal and normal gigabit electronic signal to work as traditional QAM modulator. The device is equipped with 1 (or 2) 48ch QAM card and characterized with dual RF output ports on each card to broaden the bandwidth for QAM carriers. Its high density helps operators to save cost to the most extent. Key Features: Support 3 SFP+ (10G)/SFP(1G) ports and 4 GE ports for input & output from front panel; High density, modularized plug-in design, 1U chassis with two 48-channel QAM cards, each; card has 2 GE for input & output; Support multiplexer and scrambler with 6 CAS Simul-cryption; 48/96 non-adjacent QAM carrier outputs (48 channels out per card); Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing; Web-based Network management Specifications: High density, modularized plug-in design, 1U chassis with two 48-channel QAM cards, each card has 2 GE for input & output
Full Specifications
| Transmission Rate | Max 960Mbps for each GE input, andMax 9600Mbps for each 10G SFP+/SFP input |
| Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
| Mux | Max PIDs Remapping |
| Functions | PID remapping (auto/manually optional) |
| Scrambling | Max simulcrypt CA |
| Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 |
| Connection | Local/remote connection |
| Constellation | J.83A |
| J.83B/C | Constellation :64/256QAM |

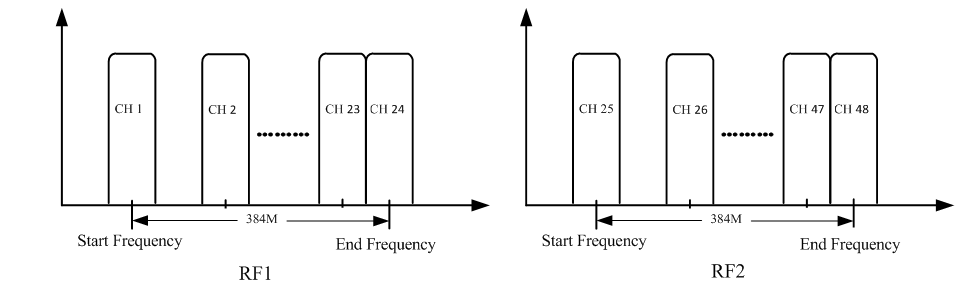

| QAM Channel | 48/96 non-adjacent carrier outputs, 384Mbps bandwidth for each RF port |
| Symbol Rate | 3600~7000Ksps, 1ksps stepping5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM) |
| Constellation | 16, 32, 64 , 128, 256QAM |
| FEC | RS (204, 188) |
| RF Range | 50~960MHz, 1kHz stepping |
| Output Level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
| MER | ≥ 40dB |
| System | Network management software (NMS) supporting |
| General | Demission |
| Weight | 5kg |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
