DHP200D 10G IP QAM Processor
RJ45 GE ports input & output from daughter cards (32/48QAM). 32/48/64 IP output over UDP/RTP/RTSP, unicast/multicast,. Maximum 112 non-adjacent QAM carriers output.
Key Specifications

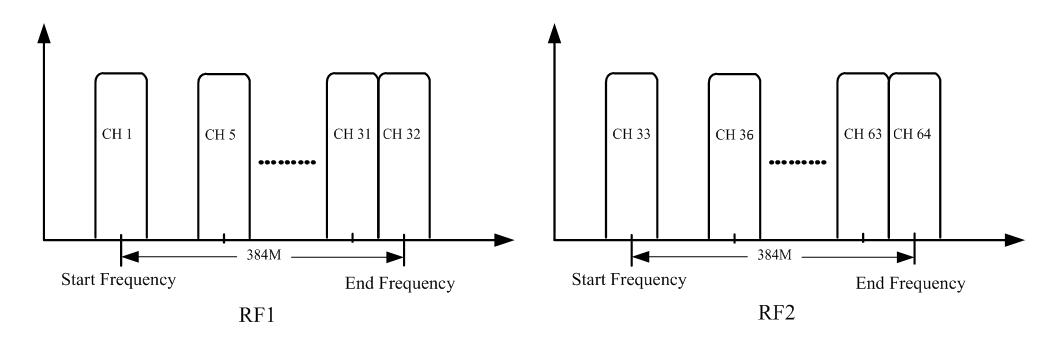

- QAM Channel 32/48/64/96/112 non-adjacent carriers output,384Mbps bandwidth for each RF port
- Input from Daughter Card 2*512 IP in from 2 GE ports (SFP port optional)--32/48 QAM
- Input Input from Front Panel
- Constellation 16, 32, 64, 128, 256QAM
- J.83B/C Constellation :64/256QAM
- Output Level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
- Symbol Rate 3600~7000Ksps, 1ksps stepping5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
- Transmission Rate Max 9600Mbps for each 10G SFP+/SFP input
Overview

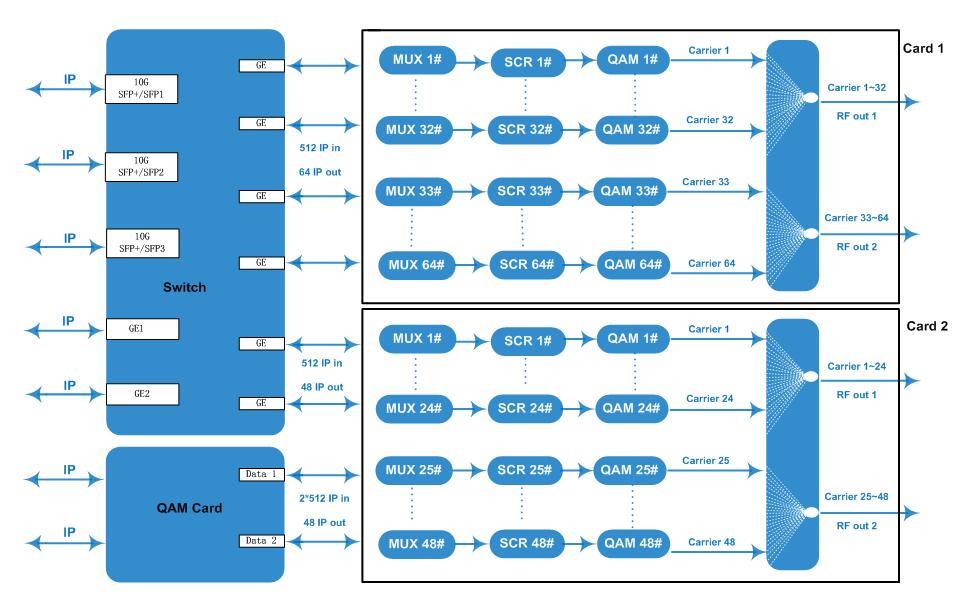

DHP200D 10G IP QAM processor is an all-in-one device developed by DEXIN which integrates multiplexer, scrambler and modulator in one body with maximum 112 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signal to work as a traditional QAM modulator. This processor is equipped with 2 card slots to load 32ch or 48ch or 64ch QAM card. Its high density helps operators to save cost to the most extent. Key Features: Support 3 SFP+ (10G)/SFP(1G) ports and 2 GE ports input & output from the front panel, or; RJ45 GE ports input & output from daughter cards (32/48QAM); High density, modularized plug-in design, 1U chassis with max 2 QAM cards; Support multiplexer and scrambler with 6 CAS Simul-cryption; Maximum 112 non-adjacent QAM carriers output; Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing; Web-based Network management; Support 3 SFP+(10G)/SFP(1G) ports and 2 GE ports input & output from the front panel, or RJ45 GE ports input & output from daughter cards (32/48QAM); High density, modularized plug-in design, 1U chassis with max 2 QAM cards
Full Specifications
| Input | Input from Front Panel |
| Input from Daughter Card | 2*512 IP in from 2 GE ports (SFP port optional)--32/48 QAM |
| Transmission Rate | Max 9600Mbps for each 10G SFP+/SFP input |
| Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
| Mux | Max PIDs Remapping |
| Functions | PID remapping (auto/manually optional) |
| Scrambling | Max simulcrypt CA |
| Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 |
| Connection | Local/remote connection |
| Constellation | J.83A |
| J.83B/C | Constellation :64/256QAM |
| QAM Channel | 32/48/64/96/112 non-adjacent carriers output,384Mbps bandwidth for each RF port |
| Symbol Rate | 3600~7000Ksps, 1ksps stepping5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM) |
| Constellation | 16, 32, 64, 128, 256QAM |
| FEC | RS (204, 188) |
| RF Range | 50~960MHz, 1kHz stepping |
| Output Level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
| MER | ≥ 40dB |
| System | Web-based Network management |
| General | Dimension |
