DHP200E 10G IP QAM Processor
32/48/64/80/96/112/128/144/160/176/192 non-adjacent carriers output, 384Mbps bandwidth for each RF port. 32/48/64 IP output over UDP/RTP/RTSP, unicast/multicast,. corresponding SFP port and GE port) and 2 SFP ports…
Key Specifications

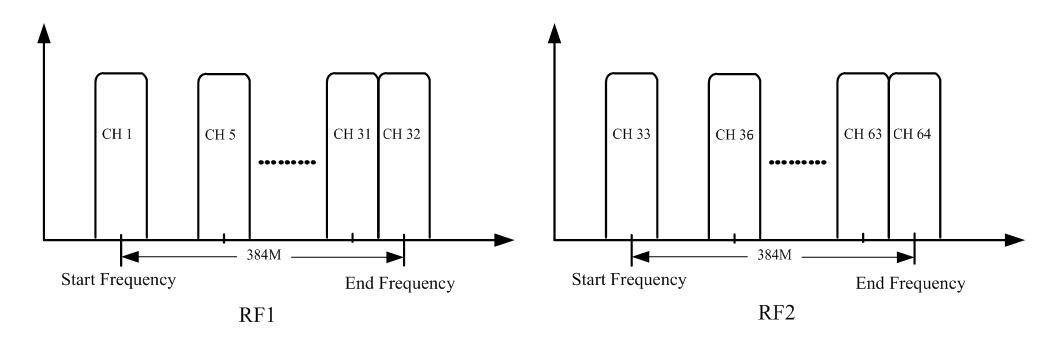

- QAM Channel 32/48/64/80/96/112/128/144/160/176/192 non-adjacent carriers output, 384Mbps bandwidth for each RF port
- Input IP Input
- Constellation 16, 32, 64, 128, 256QAM
- J.83B/C Constellation :64/256QAM
- Output Level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
- Symbol Rate 3600~7200Ksps, 1ksps stepping5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
- Transmission Rate Max 9600Mbps for each 10G SFP+ input/Max 960Mbps foreach GE and SFP input, internal data communication ismaximum 4 GE per card
- Transport Protocol TS over UDP/RTP, unicast and multicast, IGMP V2/V3
Overview

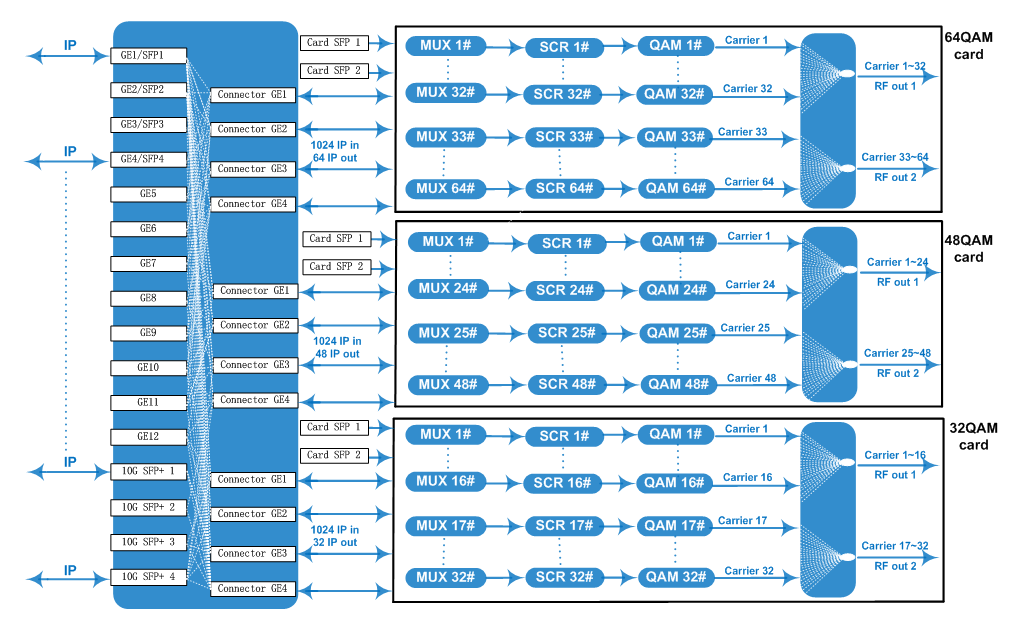

DHP200E 10G IP QAM processor is an all-in-one device developed by DEXIN which integrates multiplexer, scrambler and modulator in one body with maximum 192 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signals to work as a traditional The processor is equipped with 2 cards slots to load 32/48/64 ch QAM card depends on the carriers license inside. Also it is optional with maximum 3 cards inside.Its high density helps operators to save cost to the most extent. Key Features: Support 4 SFP+ (10G)/4 SFP(1G) ports and 12 GE ports input & output from the front panel,; SFP port 1-4 and GE port 1-4 are in the same working group (choose one to use from the; corresponding SFP port and GE port) and 2 SFP ports input(optional) per daughter card (32/48/64; High density, modularized plug-in design, 1U chassis with max 3 QAM cards; Support multiplexer and scrambler with max 6 CAS Simultaneous Encryption; Maximum 192 non-adjacent QAM carriers output if with 3 cards inside; Flexible combination of 32QAM/48QAM/64QAM card by license; Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing; Input Port/IP Backup function
Full Specifications
| Input | IP Input |
| Transmission Rate | Max 9600Mbps for each 10G SFP+ input/Max 960Mbps foreach GE and SFP input, internal data communication ismaximum 4 GE per card |
| Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
| Mux | Max PIDs Remapping |
| Functions | PID remapping (auto/manually optional) |
| Scrambling | Max simulcrypt CA |
| Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 |
| Connection | Local/remote connection |
| Constellation | J.83A |
| J.83B/C | Constellation :64/256QAM |
| QAM Channel | 32/48/64/80/96/112/128/144/160/176/192 non-adjacent carriers output, 384Mbps bandwidth for each RF port |
| Symbol Rate | 3600~7200Ksps, 1ksps stepping5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM) |
| Constellation | 16, 32, 64, 128, 256QAM |
| FEC | RS (204, 188) |
| RF Range | 50~960MHz, 1kHz stepping |
| Output Level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
| MER | ≥ 40dB |
| System | Web-based Network management |
| General | Dimension |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
