DHP300 DTV head-end processor
RF output (F type): 16/32 channels of multiplexing, scrambling and modualtion.. Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable. RF output (F type): 8/16 channels of multiplexing and modulation.
Key Specifications
- HEVC/H.265 MPEG-4 AVC/H.264
- Output Per Module 1 MPTS after multiplexing
- TS Processing Number Support 1 TS (MPTS/SPTS) input from each module, and maximum bit rate is 350Mbps
- Multiplexing Support multiplexing function:It can mux TSs from different modules to one TS and output through one module or GE1/GE2 port
- IP Data Transport One-way Transport:GE1/GE2 support output maximum 8 MPTS & 512 SPTS
- 4*1080P-60/59.94 4*1080P-60,4*1080P-59.94
- 4*1080I-50 4*1080P-50,4*1080P-25
- 4*1080I-60/59.94 4*1080P-60,4*1080P-30
Overview

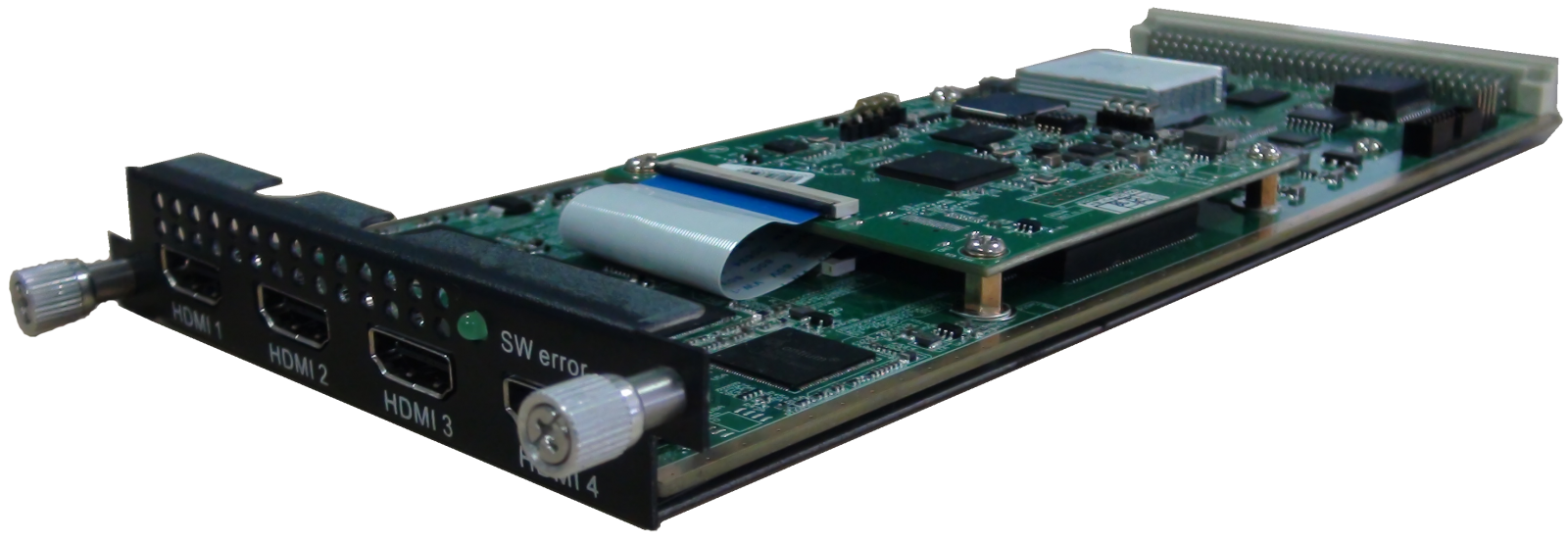

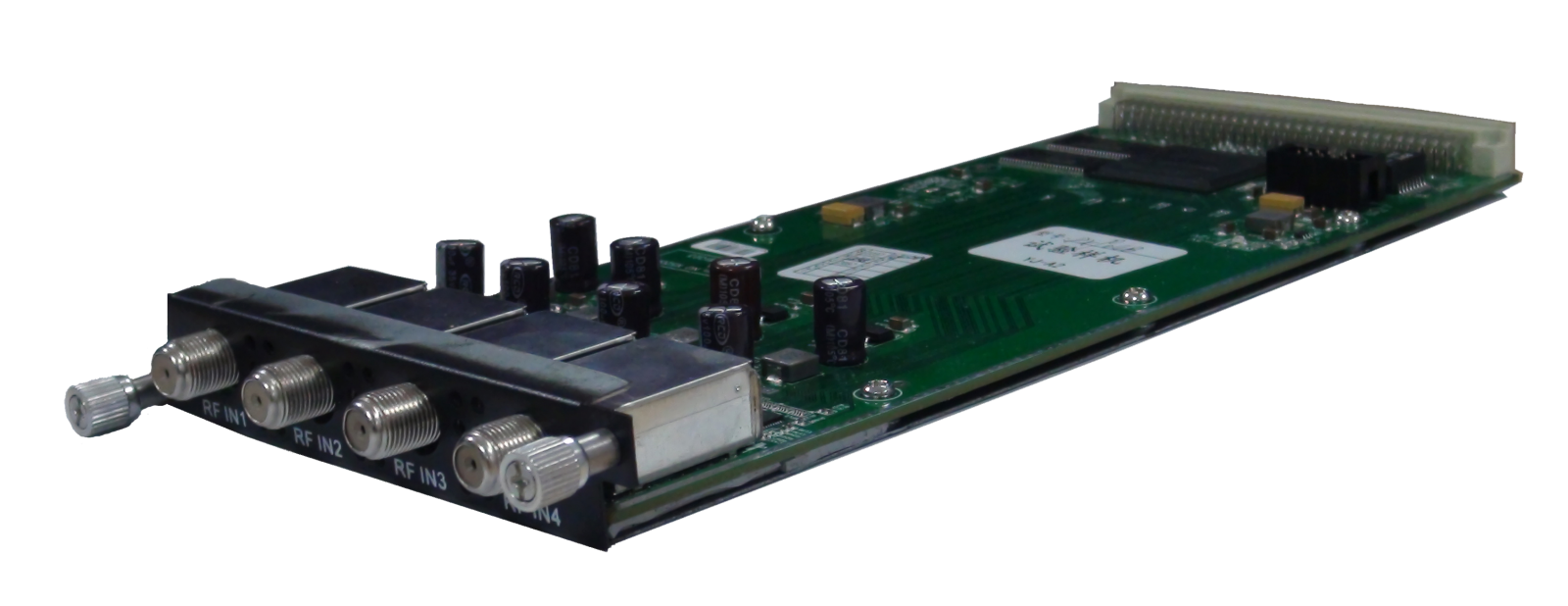

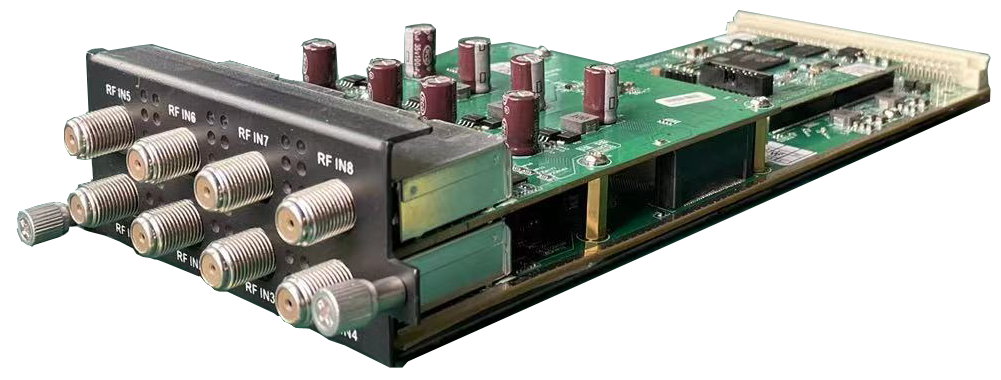

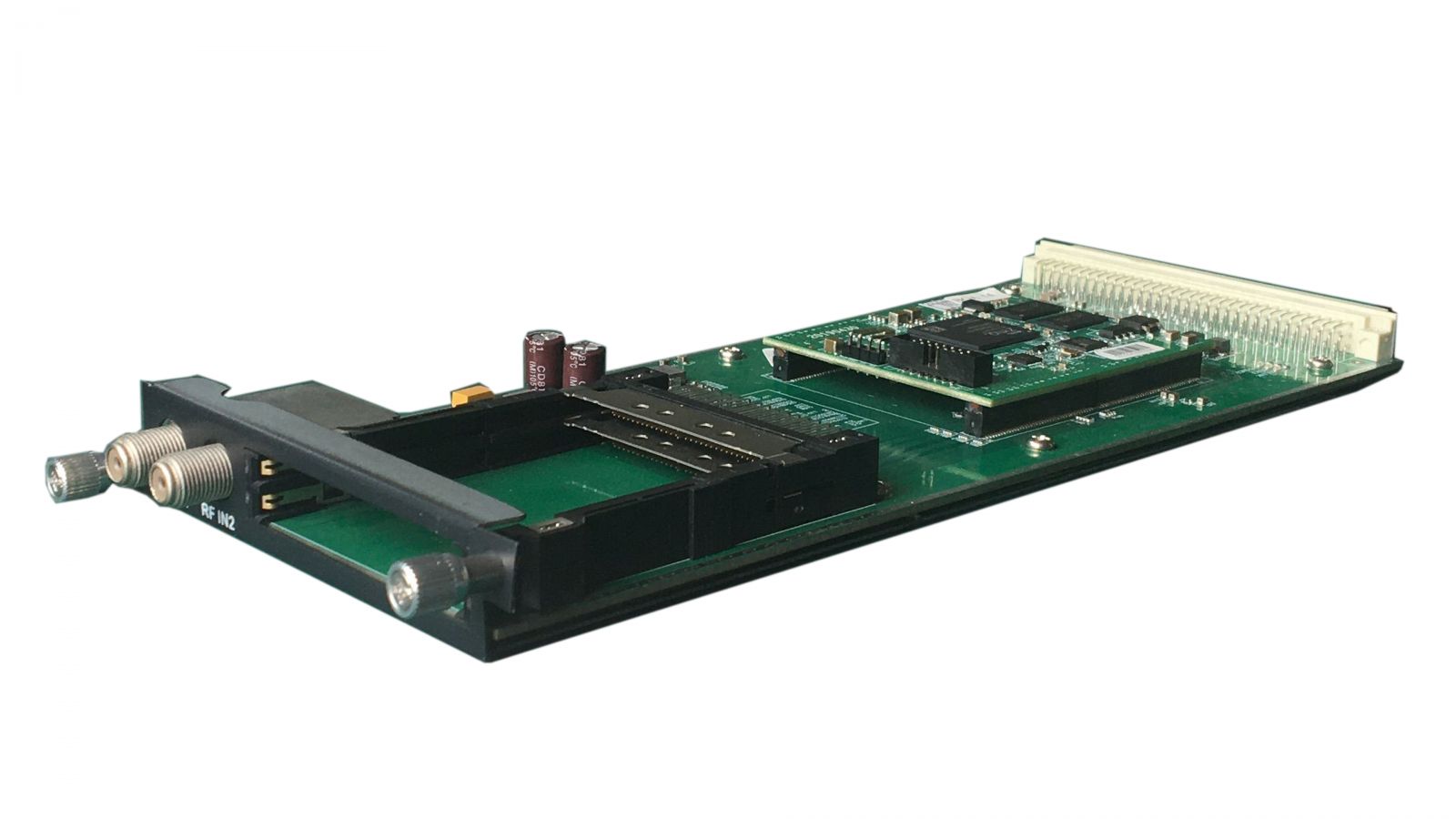

DHP300 DTV head-end processor is the new generation of intelligent headend processing equipment. This 1-U case comes with 6 independent module slots. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing and the combination of all these functions. It supports multiple input and output interfaces and signal formats. With its powerful performance and low cost, DHP300 is especially adequate for the new generation CATV system. Carrier 1~24 out thru RF1, 25~48 thru RF2, each RF supports 384M bandwidth Key Features: Support up to 6 modules; Support 2 IP input/output, RJ45/SFP interface; Support Web management, Updates via web Specifications: Video format: HEVC/H.265 & MPEG 4 AVC/H.264; Video format: HEVC/H.265 & MPEG 4 AVC/H.264; Video/Audio Out: 4 HDMI output with 1 channel stereo audio embedded in each port; Video Format: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+; Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA); Input: 8 CVBS video, 8 Stereo Audio (DB15 to RCA), or 8 ch analog audio input to work as audio encoder module; Video/Audio Out: 2 HD/SD SDI output
Full Specifications
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080P-60/59.94 | 4*1080P-60,4*1080P-59.94 |
| 4*1080I-50 | 4*1080P-50,4*1080P-25 |
| 4*1080I-60/59.94 | 4*1080P-60,4*1080P-30 |
| 4*720P-60/59.94 | 4*720P-60,4*720P-59.94 |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080P-60/59.94 | 4*1080P-60,4*1080P-59.94 |
| 4*1080I-50 | 4*1080P-50,4*1080P-25 |
| 4*1080I-60/59.94 | 4*1080P-60,4*1080P-30 |
| 4*720P-60/59.94 | 4*720P-60,4*720P-59.94 |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080I-50 | 4*1080P-50 |
| 4*1080I-60/59.94 | 4*1080P-60/59.94 |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*2160P_25/30/29.97 | 2*2160P_25/30/29.97 |
| IP Data Transport | One-way Transport:GE1/GE2 support output maximum 8 MPTS & 512 SPTS |
| TS Processing Number | Support 1 TS (MPTS/SPTS) input from each module, and maximum bit rate is 350Mbps |
| Multiplexing | Support multiplexing function:It can mux TSs from different modules to one TS and output through one module or GE1/GE2 port |
| Output Per Module | 1 MPTS after multiplexing |
| LED | N/A |
