DHP400 DTV Head-end Processor

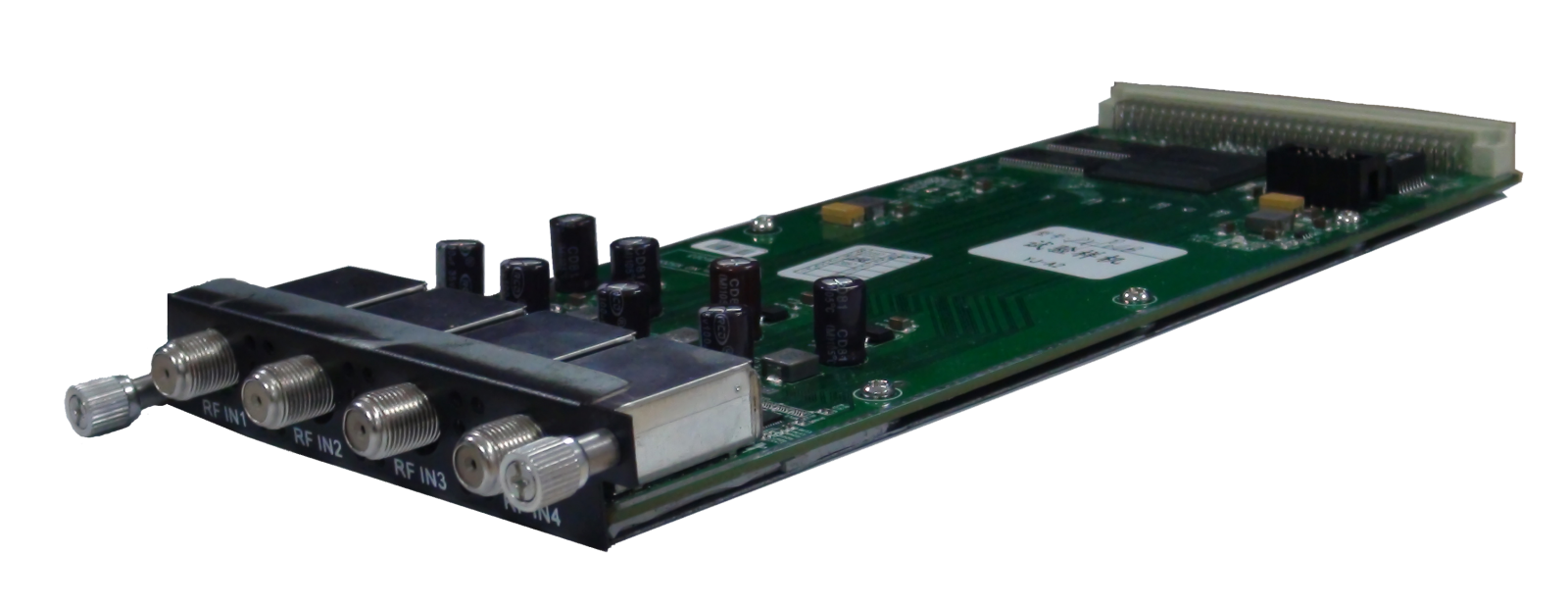

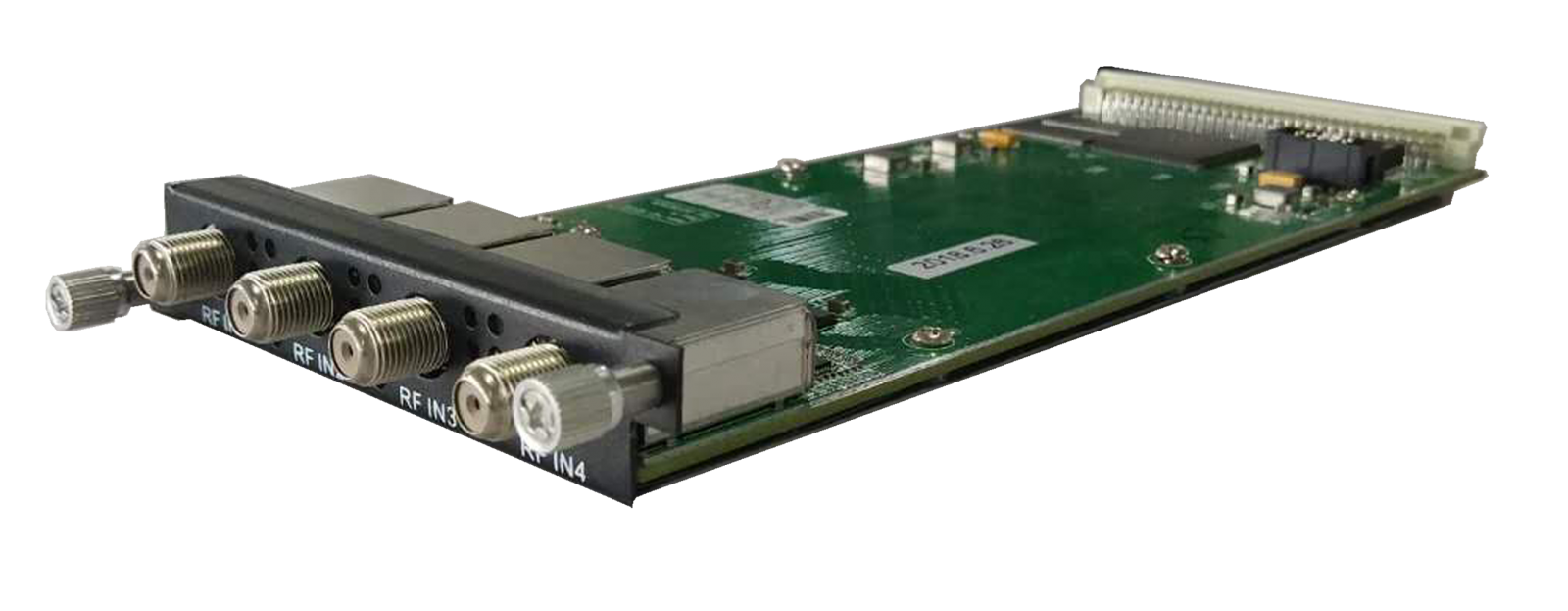

RF output (F type): 16/32 channels of multiplexing, scrambling and modualtion.. Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable. Video format: HEVC/H.265 & MPEG 4 AVC/H.264.
Key Specifications
- Output Per Module 1 MPTS after multiplexing
- TS Processing Number Support 1 TS (MPTS/SPTS) input from each module, and maximum bitrate is 350Mbps
- Multiplexing Support multiplexing function:It can mux TSs from different modules to one TS and output through one module or GE1/GE2 port
- IP Data Transport One-way Transport:GE1/GE2 support output maximum 8MPTS & 512SPTS
Overview

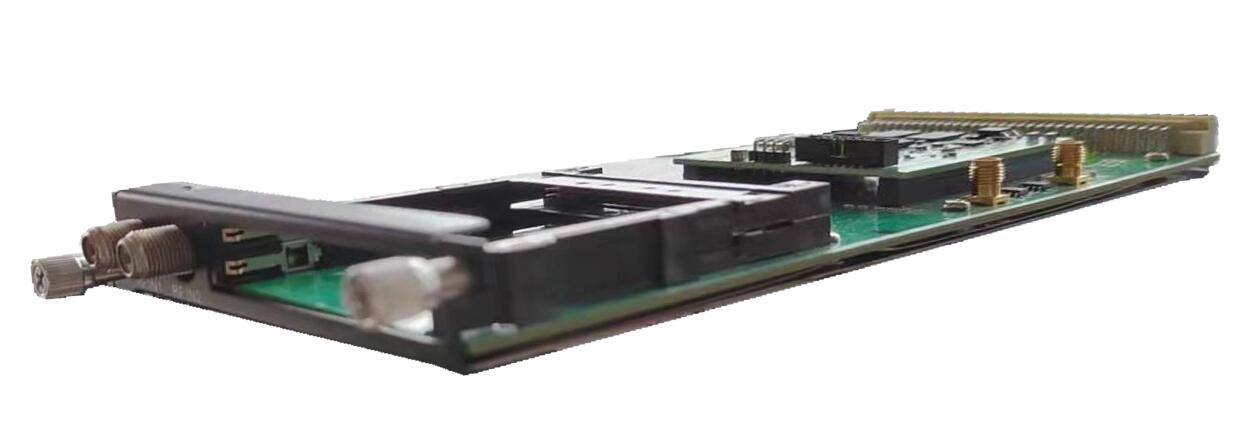

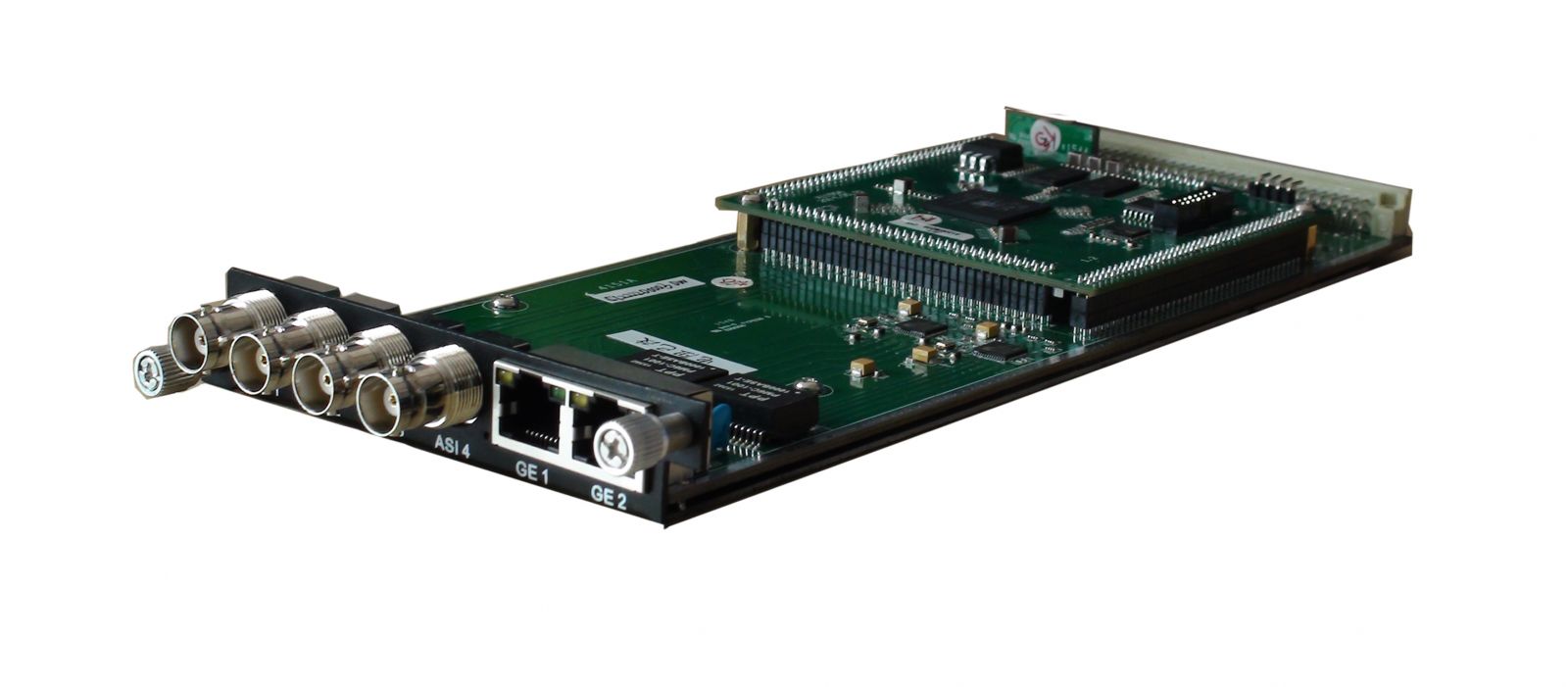

DHP400 DTV head-end processor is the new generation of intelligent headend processing equipment. This 1-U case comes with 6 independent module slots. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing and the combination of all these functions. It supports multiple input and output interfaces and signal formats. With its powerful performance and low cost, DHP400 is especially adequate for the new generation CATV system. Carrier 1~24 out thru RF1, 25~48 thru RF2, each RF supports 384M bandwidth Key Features: Support flexible combination of different type of modules; Support up to 6 modules; Support 1 ASI output (Copy as MPTS2 through front panel GE2); Support 2 GE output, 512 SPTS (UDP, RTSP/RTP) output from GE1,; Support Web management, Updates via web; Redundancy power supply: Specifications: Video format: HEVC/H.265 & MPEG 4 AVC/H.264; Video format: HEVC/H.265 & MPEG 4 AVC/H.264---DX224H; Video bitrate: 0.8~19Mbps for MPEG-2 /H.264 encoding; Video bitrate: 0.8~19Mbps for MPEG-2 /H.264 encoding;
Full Specifications
| IP Data Transport | One-way Transport:GE1/GE2 support output maximum 8MPTS & 512SPTS |
| TS Processing Number | Support 1 TS (MPTS/SPTS) input from each module, and maximum bitrate is 350Mbps |
| Multiplexing | Support multiplexing function:It can mux TSs from different modules to one TS and output through one module or GE1/GE2 port |
| Output Per Module | 1 MPTS after multiplexing |
