DHP400A Head-end Processor

Overview

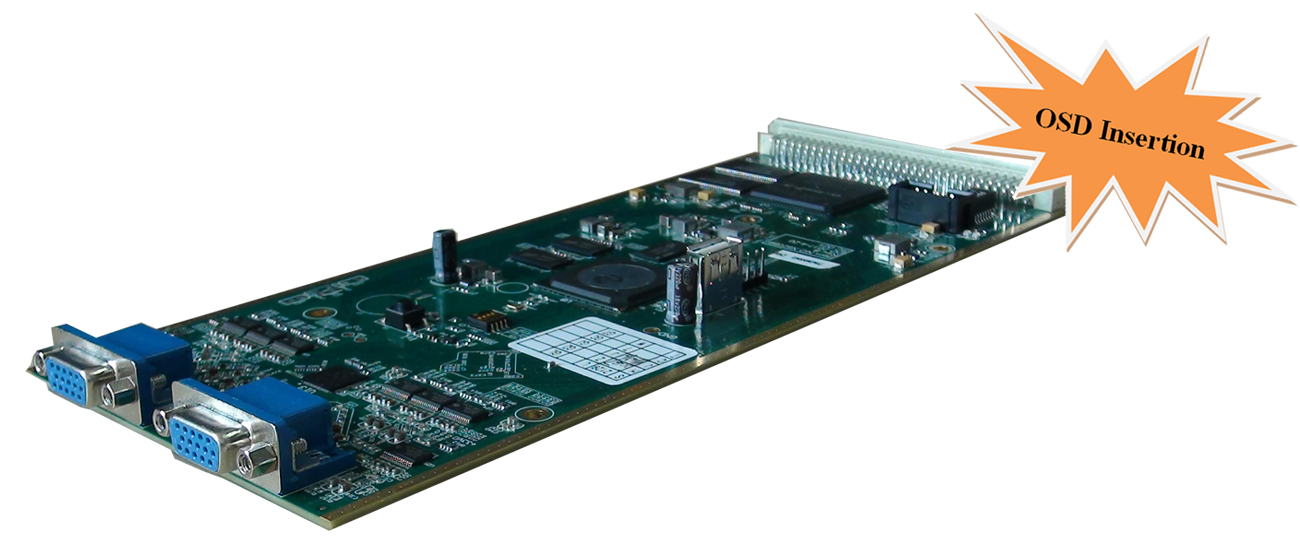

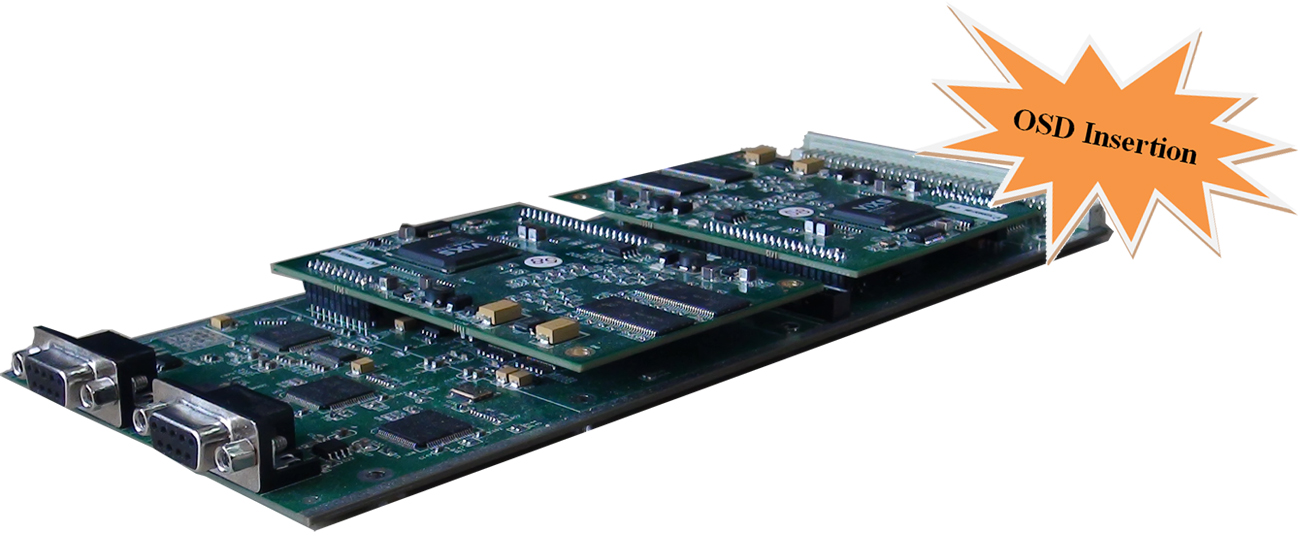

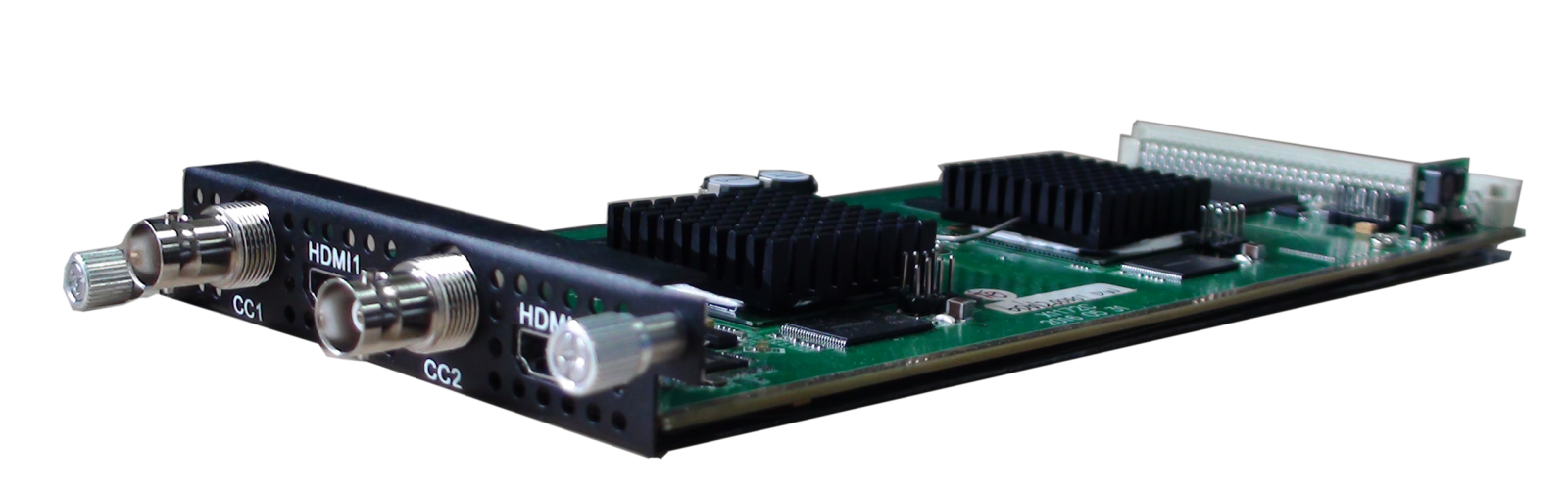

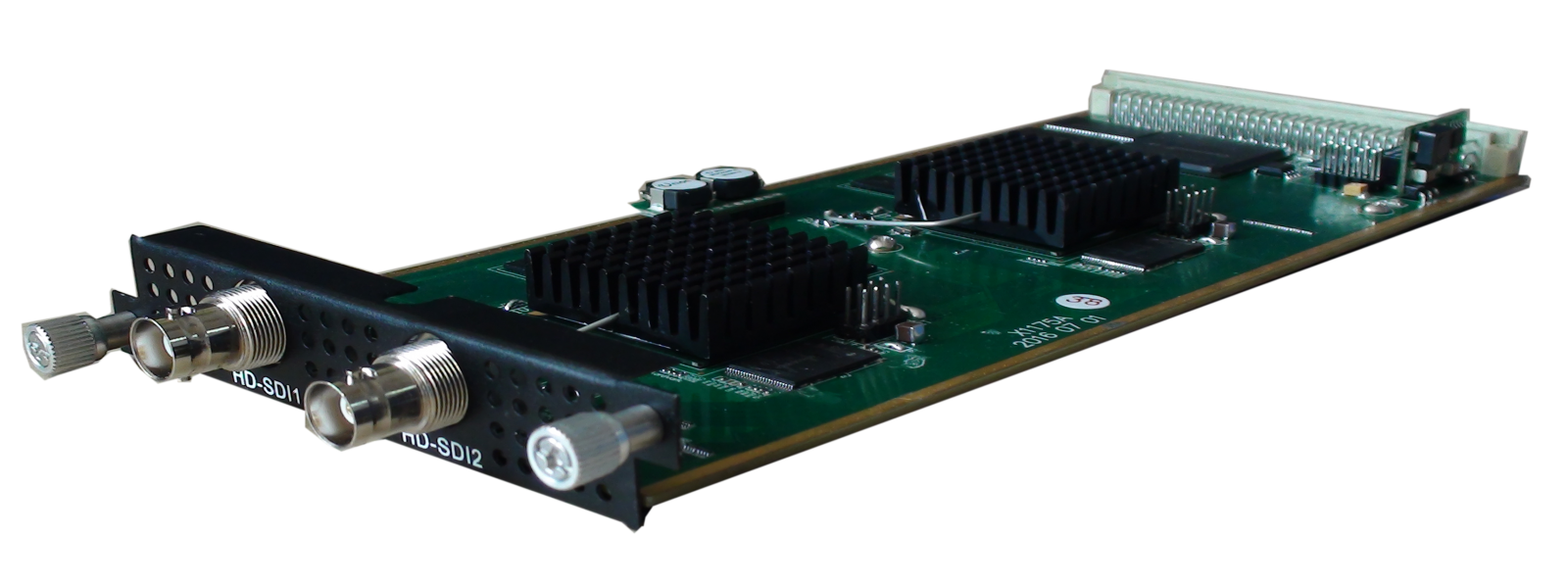

DHP400A DTV head-end processor is the new generation of intelligent headend processing equipment. This 1-U case comes with 6 independent module slots. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing and the combination of all these functions. It supports multiple input and output interfaces and signal formats. With its powerful performance and low cost, DHP400A is especially adequate for the new generation CATV system. Support 1 TS (MPTS/SPTS) input from each module, and maximum bitrate is 350Mbps Key Features: Redundancy Power Supply (Optional); Two options for redundancy power supply: Hot or; Support flexible combination of different type of modules; Support up to 6 modules; Support 1 ASI output(As copy of One of the IP out from GE1); Support IP input and output from GE1 and GE2; Support Web management, Update via web Specifications: Video format: HEVC/H.265 & MPEG 4 AVC/H.264---DX 224H; Video/Audio Out: 4 HDMI output with 1 channel stereo audio embedded in each port; Video Format: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+

Full Specifications
