DUT-8323 DVB-(T) Digital Transmitter (1.5-3KW)
Support AGC function with sustained power output to allow the transmitter. AGC function with sustained power output to allow the transmitter a good stability and reliability. Input reflection loss.
Key Specifications
- Output frequency 470MHz~806MHz(For Single Channel: Every 8M available;For Broadband Channel: consecutive 60M available)
- Output interface 1-5/8
- Output RF output power
- variation of output power ±0.25dB
- Input System standard
- Input Level -20 dBm±3dB (87dbuv ±3dB)
- Input reflection loss ≥15dB
- output reflection loss ≥20dB
Overview

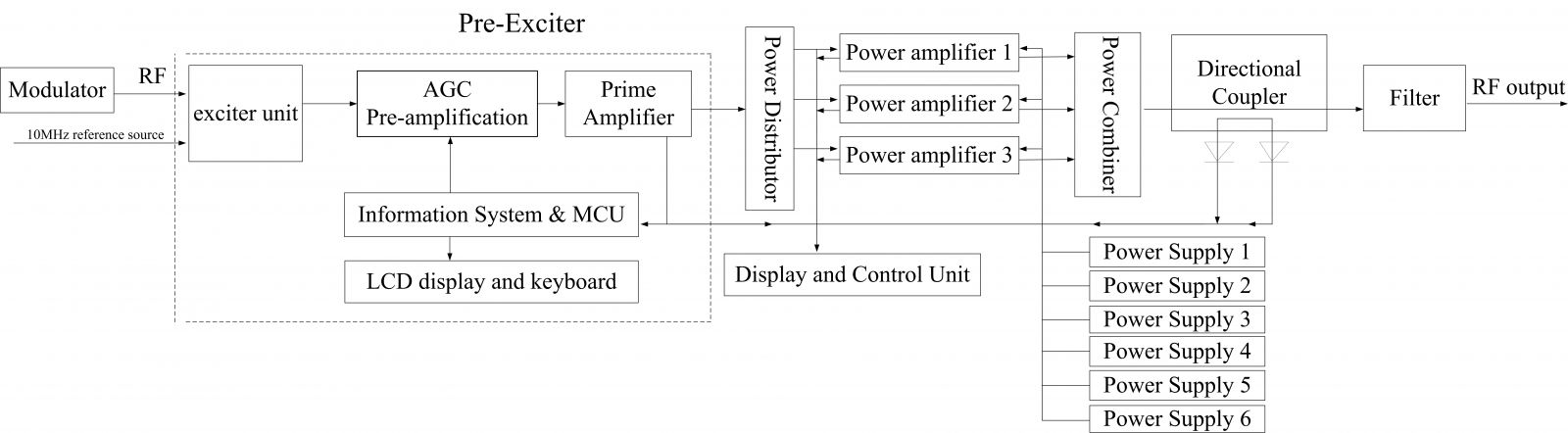

DUT-8323 is a professional DVB-(T) digital transmitter developed by DEXIN, which gives sustained power output with 1500W/2000W/2500W/3000W optional. Its compact structure design has greatly saved space for your room. The frequency range of DUT-8323 is from 470MHz～806MHz. This transmitter has a very high linear and high reliability as it takes high gain and high linear LDMOS tube amplifier module. Furthermore, it supports AGC function to keep sustained power output. Key Features: Intelligent and modularized amplifier unit, takes high power gain and high; linear LDMOS tube amplifier module design; Low power consumption and super linear design to improve the transmission; power, and reduce the nonlinear distortion; Support AGC function with sustained power output to allow the transmitter; a good stability and reliability; Support MFN and SFN system; Support fault diagnosis function; Full digital front panel control, easy operation.; LED on the door supporting alarm and signal monitor; Stabilized-power supply with wide range of voltage and high efficiency; Cooling system with low consumption and low noise Specifications: Input reflection loss; RF output power
Full Specifications
| Input | System standard |
| frequency | 470MHz~806MHz |
| Input Level | -20 dBm±3dB (87dbuv ±3dB) |
| Input reflection loss | ≥15dB |
| Input Interface | ‘N’ |
| Output | RF output power |
| Output frequency | 470MHz~806MHz(For Single Channel: Every 8M available;For Broadband Channel: consecutive 60M available) |
| Output impedance | 50Ω |
| frequency response | ±0.5dB |
| Shoulder level | ≥36dB@central freqnencyIF±4.2MHz |
| MER | ≥33dB |
| output reflection loss | ≥20dB |
| variation of output power | ±0.25dB |
| In-band stray | ≤-60dBc |
| Out-of-band suppression | ≥65dBc |
| Output interface | 1-5/8 |
| General Parameters | Working temperature |
| Storage temperature | -30~+75℃ |
| Relatively humidity | ＜95% (25℃ no condensation) |
| Cooling mode | inside cooling fan |
