DX3702 IP/ASI to SDI HD Decoder
1 IP output over UDP protocol. MPEG-2 and MPEG-4 AVC/H.264 video decoding. 2 IP (MPTS/SPTS, 100M/1000Mbps Ethernet, RJ45, UDP protocol, Unicast/multicast).
Key Specifications
- Output 2*HD/SD-SDI decoding out
- Input 2 IP (MPTS/SPTS, 100M/1000Mbps Ethernet, RJ45, UDP protocol, Unicast/multicast)
- Interface 2* SDI HD/SD
- Video Resolution 480i, 480p, 576i, 576p, 720p@50/59.94/60, 1080i@50/59.94/60
- Audio Channel dual stereo audios embedded in each port
- Decode Video Format
- Power Supply 220VAC±10%，50Hz
- Language Chinese/English
Overview

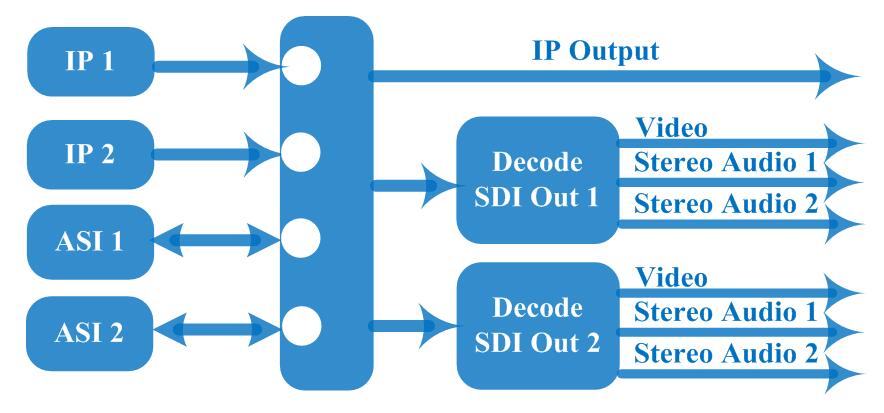

DX3702 is a HD IP decoder designed by DEXIN Digital with proprietary intellectual property rights. It is a 1-U case supporting both IP and ASI input. After decoding process, it outputs 2 channels of HD/SD-SDI videos with dual stereo audios embedded in each port. It also supports 1 IP (MPTS) output and featured with dual bi-directional ASI ports for input and output alternatively. Specifications: MPEG-2 and MPEG-4 AVC/H.264 video decoding; 2 IP input and 1 IP output; 2 bi-directional ASI ports with input and output alternatively; 1 IP output over UDP protocol; 2*HD/SD-SDI decoding out with; dual stereo audios embedded in each port; 2 IP (MPTS/SPTS, 100M/1000Mbps Ethernet, RJ45, UDP protocol, Unicast/multicast); MPEG-2, MPEG4 AVC/H.264
Full Specifications
| Input | 2 IP (MPTS/SPTS, 100M/1000Mbps Ethernet, RJ45, UDP protocol, Unicast/multicast) |
| Decode | Video Format |
| Interface | 2* SDI HD/SD |
| Video Resolution | 480i, 480p, 576i, 576p, 720p@50/59.94/60, 1080i@50/59.94/60 |
| Audio Channel | dual stereo audios embedded in each port |
| Output | 2*HD/SD-SDI decoding out |
| Language | Chinese/English |
| Dimension (LxWxH) | 328 mm×482 mm×45mm |
| Environment | 0~45℃(Work)；-20~80℃(Storage) |
| Power Supply | 220VAC±10%，50Hz |
| Consumption | <25W |
