DX3902A DVB-S2X Receiver
IRD / Decoder / Transcoder

DX3902A DVB-S2X Receiver

2 DVBS/S2/S2X Tuner inputs. 32 IP input(UDP/RTP) for re-mux. IP (1 MPTS) over UDP and RTP output.

Key Specifications

  • Output 1*MPTS over UDP and RTP, 1000M/100M Base-T Ethernet interfaces (unicast / multicast)
  • FEC Demodulation QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
  • Input 2*RF (DVBS/S2/S2X), F type32*IP input for re-mux (UDP/RTP) through data(1000M/100M) ports
  • Multiplexing Maximum PID Remapping
  • Tuner DVB-S
  • Symbol Rate QPSK/8PSK/16APSK: 0.5~45 Msps;8APSK/32APSK: 0.5~40 Msps
  • Signal Strength -65~ -25dBm
  • Function PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Request Quote WhatsApp

Overview

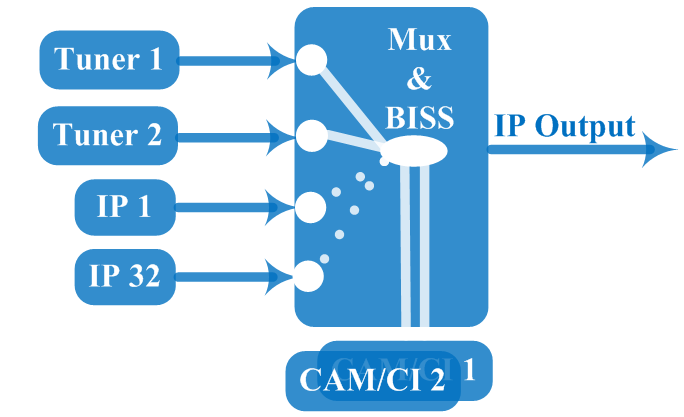

DX3902A is our low cost device which integrates demodulation, de-scrambler and re-mux (DVBS/S2/S2X) in one case to convert tuner signals into IP output. It supports 2 tuner input, and 1 MPTS output with UDP and RTP protocol, and the CAM/CI accompanied with tuner to descramble the encrypted tuner signals. The CAM requires no unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble Key Features:  2 DVBS/S2/S2X Tuner inputs;  32 IP input(UDP/RTP) for re-mux;  Each CAM can decrypt multiple programs from Tuners;  Support BISS descrambling (Up to 120Mbps);  IP (1 MPTS) over UDP and RTP output;  Support maximum 256 PID mapping per input channel;  Support Diseqc function;  Support web NMS management Specifications: Support maximum 256 PID mapping per input channel; 256 PIDs per input channel; 2 DVBS/S2/S2X Tuner inputs; 32 IP input(UDP/RTP) for re-mux; IP (1 MPTS) over UDP and RTP output; 32*IP input for re-mux (UDP/RTP) through data(1000M/100M) ports; 1*MPTS over UDP and RTP, 1000M/100M Base-T Ethernet interfaces (unicast / multicast); Network management (WEB)

Full Specifications

Input 2*RF (DVBS/S2/S2X), F type32*IP input for re-mux (UDP/RTP) through data(1000M/100M) ports
Tuner DVB-S
Symbol Rate QPSK 0.5Msps~45Msps
Signal Strength -65~ -25dBm
FEC Demodulation 1/2, 2/3, 3/4, 5/6, 7/8
Symbol Rate QPSK/8PSK/16APSK 0.5Msps~45Msps32APSK0.5Msps~40 Msps
FEC Demodulation QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
Symbol Rate QPSK/8PSK/16APSK: 0.5~45 Msps;8APSK/32APSK: 0.5~40 Msps
Multiplexing Maximum PID Remapping
Function PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling CAM/CI Quantity
BISS Mode Mode 1, Mode E; up to 120Mbps
Output 1*MPTS over UDP and RTP, 1000M/100M Base-T Ethernet interfaces (unicast / multicast)
System function Network management (WEB)
Environment 0~45℃(work)；-20~80℃（Storage）
Power requirements AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
