DX3904B DVB-S/S2/S2X Receiver

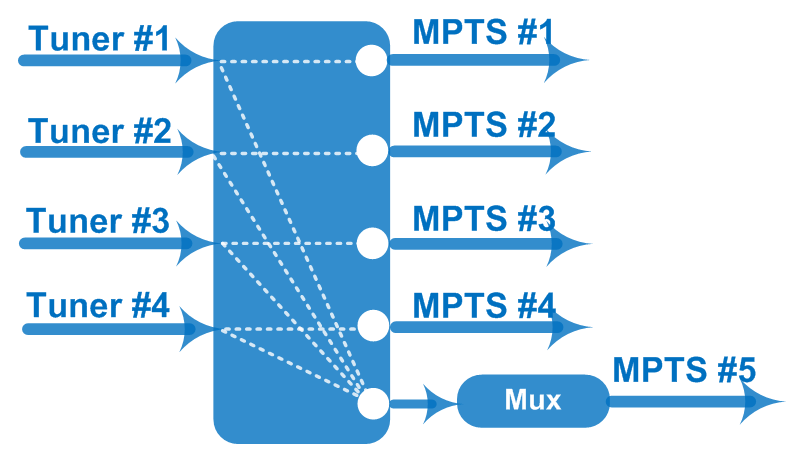

Support 4 tuners (DVB-S/S2/S2X) input. 4 Tuner input, F Type. 5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data port, 100/1000Mself-adaption, unicast/multicast.
Key Specifications
- Input / Output 4 Tuner input, F Type5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data port, 100/1000Mself-adaption, unicast/multicast
- Max input bitrate per tuner ≤170 Mbps
- Mux Max number of managing PID: 256 (for 1 MPTS out thru multiplexing)
- Constellation QPSK/8PSK/16APSK/8APSK/32APSK
- Functions PID remapping (automatically/ manually)
- Symbol Rate QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps
- FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
- DVB-S2X Symbol Rate
Overview
Key Features: Support 4 tuners (DVB-S/S2/S2X) input; 5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data; port, unicast/multicast; Up to 256 PIDs remapping per output channel; Support PID re-mapping and pass-through; Support Diseqc function; Web-based NMS management Specifications: Input / Output; Up to 256 PIDs remapping per output channel; Max input bitrate per tuner; Max input bitrate per tuner; Support 4 tuners (DVB-S/S2/S2X) input; 4 Tuner input, F Type
Full Specifications
| Input / Output | 4 Tuner input, F Type5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data port, 100/1000Mself-adaption, unicast/multicast |
| Mux | Max number of managing PID: 256 (for 1 MPTS out thru multiplexing) |
| Functions | PID remapping (automatically/ manually) |
| Symbol Rate | 0.5~45 Msps |
| Constellation | QPSK |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Symbol Rate | QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps |
| Constellation | QPSK/8PSK/16APSK/32APSK |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9 |
| Max input bitrate per tuner | ≤170 Mbps |
| DVB-S2X | Symbol Rate |
| Constellation | QPSK/8PSK/16APSK/8APSK/32APSK |
| Max input bitrate per tuner | ≤170 Mbps |
| Signal Strength | -65 ~ -25dBm |
| System | Web management:100M NMS port |
| General | Dimensions |
| Weight | 3.5kg |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
| Power supply | AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz |
| Consumption | ≤40W |
