DX3908/DX3928 DVB-S2X/S2 Receiver/Multi-Mode Receiver
IRD / Decoder / Transcoder

DX3908/DX3928 DVB-S2X/S2 Receiver/Multi-Mode Receiver

Support 8 tuners (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T) input; 1 U chassis optional for. 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type. 8 FTA DVB-S/S2/S2X Tuner Input, Version 1 or Version 2.

Key Specifications

  • Input / Output 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type8 MPTS out thru bypassing over UDP/RTP thru Data port (Version 1)100/1000Mself-adaption, unicast/multicast
  • Max input bitrate per tuner ≤170 Mbps
  • Mux (Version 2) Max number of managing PID: 256 (for 2 MPTS out thru multiplexing) or 512 SPTS out
  • Constellation QPSK/8PSK/16APSK/8APSK/32APSK
  • Bandwidth 6/7/8 M
  • Functions PID remapping (automatically/ manually)
  • Symbol Rate QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps
  • FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
Request Quote WhatsApp

Overview

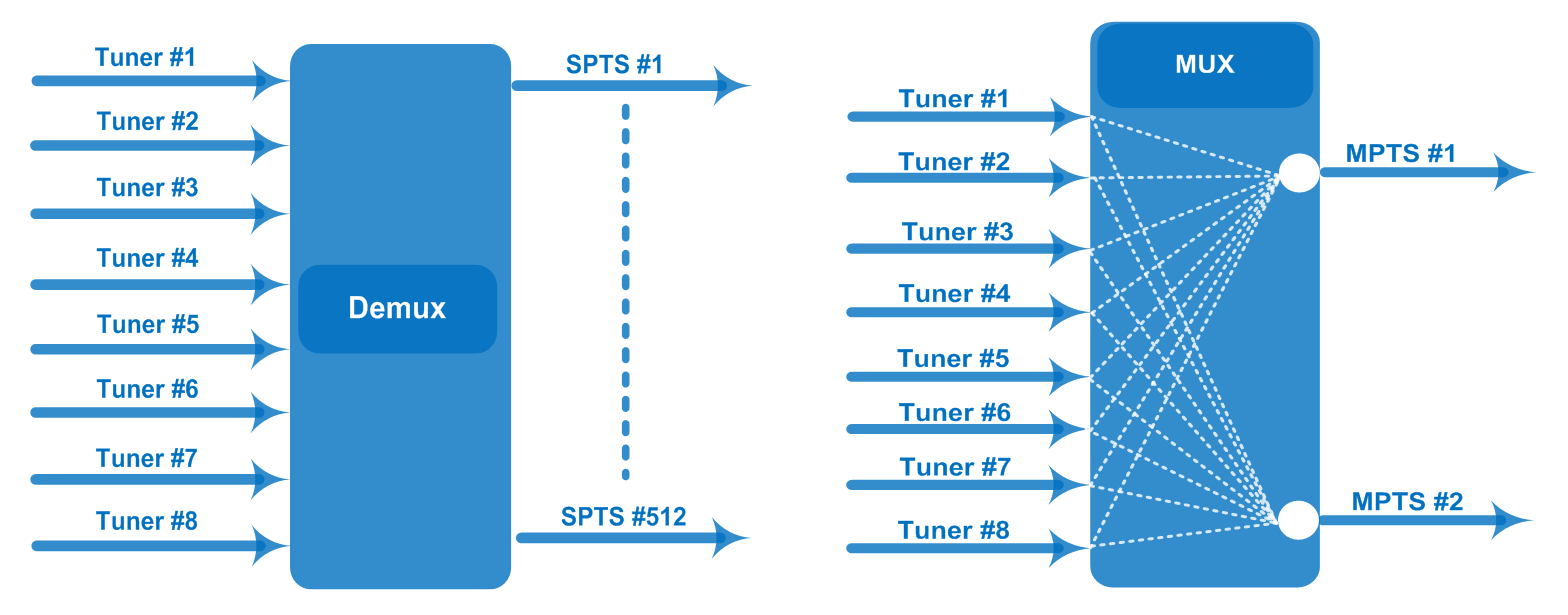

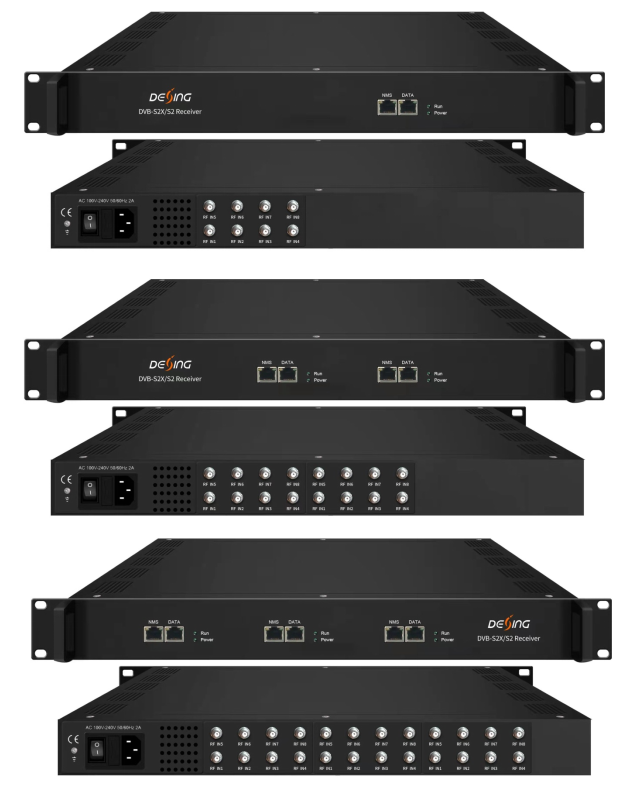

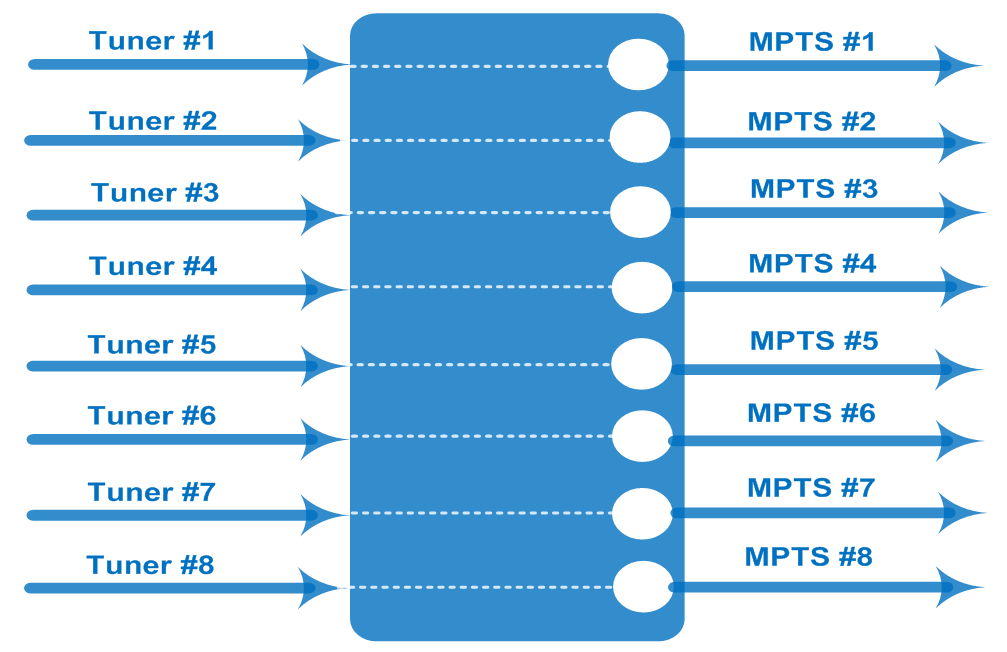

Key Features: Support 8 tuners (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T) input; 1 U chassis optional for; 1/2/3 cards maximum for 8/16/24 tuner input; Each tuner card are working independently with its; NMS and 1 GE Data port; 8 MPTS (8MPTS out thru bypassing) under Passthrough mode over UDP/RTP thru Data port,; unicast/multicast-Version 1; 2 MPTS out after multiplexing or 512 SPTS out switchable under Mux mode over UDP/RTP; thru Data port, unicast/multicast-Version 2; Up to 256 PIDs remapping per output channel (Mux mode only); Support PID re-mapping and pass-through (Mux mode only); Support Diseqc function (Mux mode only); Support Biss decryption, each tuner support maximum 64 BISS key decryption (Mux mode); Web-based NMS management Specifications: Input / Output; Max input bitrate per tuner; Max input bitrate per tuner; Version 2: Mux Mode (MPTS and SPTS output Switchable); Specifications (Per Card/8 Input); 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type; 8 FTA DVB-S/S2/S2X Tuner Input, Version 1 or Version 2; 16 FTA DVB-S/S2/S2X Tuner Input, Version 1 or Version 2

Full Specifications

Input / Output 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type8 MPTS out thru bypassing over UDP/RTP thru Data port (Version 1)100/1000Mself-adaption, unicast/multicast
Mux (Version 2) Max number of managing PID: 256 (for 2 MPTS out thru multiplexing) or 512 SPTS out
Functions PID remapping (automatically/ manually)
Symbol Rate 0.5~45 Msps
Constellation QPSK
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Symbol Rate QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps
Constellation QPSK/8PSK/16APSK/32APSK
FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
Max input bitrate per tuner ≤170 Mbps
DVB-S2X Symbol Rate
Constellation QPSK/8PSK/16APSK/8APSK/32APSK
Max input bitrate per tuner ≤170 Mbps
Signal Strength -65 ~ -25dBm
Standard J.83A, J.83C
Constellation 16/32/64/128/256 QAM
Bandwidth 6/7/8 M
System Web management:100M NMS port
General Dimensions
Weight 3.5kg
