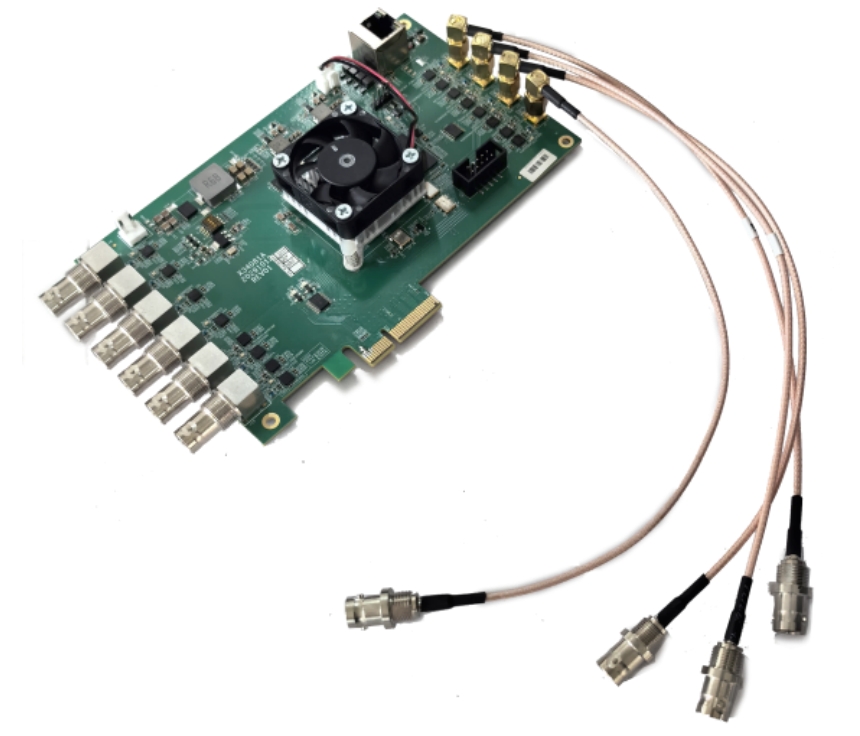

DXP204A SDI/ASI Capture Card for PCIe
4x3G-SDI for video input, can be configured to operate in level A or level B mode.. 6xASI bidirectional ports, input/output self-defined. 4 x SDI (SD, HD, 3G level A/B) input, BNC, 75Ω.
Key Specifications
- Connectors 4 x SDI (SD, HD, 3G level A/B) input, BNC, 75Ω1-6 xASI input/output self-defined, BNC, 75Ω
- SDI Formats 1080p50/59.94/60; 1080i50/59.94/60;720p50/59.94/60525i, 625i
- Physical Layer 3G-SDI
- HD-SDI SMPTE 292M
- SD-SDI SMPTE 259M
- PCI Express PCIe3 x4 low profile
- DVB-ASI EN50083-9
- Processor Core i5 minimumCore i7 recommended (or equivalent AMD CPUs)
Overview
DXP204A is a capture card equipped with 4 3G-SDI inputs and 6 ASI in/out bidirectional ports. It is designed for capture from any uncompressed SDI video source and compressed TS via ASI, and output via PCle connection for a variety of SDl/ASl-processing applications. Key Features: 4x3G-SDI for video input, can be configured to operate in level A or level B mode.; 6xASI bidirectional ports, input/output self-defined; API to access video and audio; Low latency DMA to and from software.; Free drivers for Linux; Software-based encoder with 3G-SDI interfacing; Live production mixer, effect generator; SDI monitoring, recorder; ASI monitoring, recorder, play-out Specifications: 1-6 xASI input/output self-defined, BNC, 75Ω; 4 x SDI (SD, HD, 3G level A/B) input, BNC, 75Ω
Full Specifications
| Connectors | 4 x SDI (SD, HD, 3G level A/B) input, BNC, 75Ω1-6 xASI input/output self-defined, BNC, 75Ω |
| SDI Formats | 1080p50/59.94/60; 1080i50/59.94/60;720p50/59.94/60525i, 625i |
| PCI Express | PCIe3 x4 low profile |
| Physical Layer | 3G-SDI |
| HD-SDI | SMPTE 292M |
| SD-SDI | SMPTE 259M |
| DVB-ASI | EN50083-9 |
| Processor | Core i5 minimumCore i7 recommended (or equivalent AMD CPUs) |
