NDS2401G DVB-T Modulator

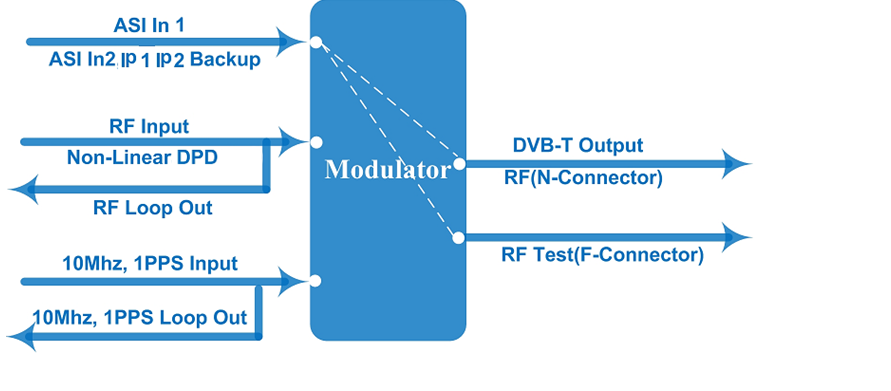

IP with UDP/RTP protocol, with Multicast/Unicast. 2. 2 ASI in & 2 IP (DATA1& DATA2) input for hot backup input, 1 RF in, 10MHz reference. GPS 10Mhz reference clock input, BNC port.
Key Specifications
- Input 2channels ASI input& 2 IP input, can only select 1 input as source, but all 4 inputs ports are hot backupIP with UDP/RTP protocol, with Multicast/UnicastIP with PCR adjust feature also
- ASI output 2 ASI ports output for the passthrough of the input ASI Signal, both ASI out are the same
- Constellation QPSK, 16QAM, 64QAM
- RF output level -15dbm~+5dbm, 0.1db step
- Bandwidth 5M, 6M, 7M, 8M
- FEC 1/2, 2/3, 3/4, 5/6, 7/8
- Power Supply AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
- Power Consumption To be tested
Overview
The NDS2401G DVB-T Modulator is a high performance modulator developed according to the DVB-T (EN300744) standard. It adopts advanced framing structure, channel encoding and modulation technology. It supports both MFN (Multi-frequency network) and SFN (single frequency network). In order to improve the output performance of the transmitter, this DVB-T modulator can support nonlinear digital pre-distortion. Moreover, this device facilitates the local and remote control with web software. 9. Supports adaptive non-linear digital pre-distortion (DPD) Key Features: 1. Fully complying with DVB-T standard (EN300744); 2. 2 ASI in & 2 IP (DATA1& DATA2) input for hot backup input, 1 RF in, 10MHz reference; clock and 1PPS in; 3. Support both SFN and MFN; 4. Transmission mode: 2k, 8k; 5. Transmission bandwidth 5M, 6M, 7M and 8M; 6. Excellent phase noise and MER performance, MER≥42db; 7. Support spectrum invert; 8. RF output range 50~1000MHz, 1Hz step; 9. Supports adaptive non-linear digital pre-distortion (DPD); 10. Constant temperature crystal oscillator, frequency stability is high up to 0.1ppm
Full Specifications
| Input | 2channels ASI input& 2 IP input, can only select 1 input as source, but all 4 inputs ports are hot backupIP with UDP/RTP protocol, with Multicast/UnicastIP with PCR adjust feature also |
| FFT | 2K, 8K |
| Bandwidth | 5M, 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| RF range | 50~1000MHz，1hz step |
| RF output level | -15dbm~+5dbm, 0.1db step |
| RF level offset | -3dbm~+3dbm, 0.1db step |
| MER | ≥ 42db |
| ASI output | 2 ASI ports output for the passthrough of the input ASI Signal, both ASI out are the same |
| Non-linear DPD | over 10db ACPR improvement (normally) |
| System | LCD display & keyboard operation, web management |
| General | Demission (W*L*H) |
| Weight | 4.9kg |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
| Power Supply | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| Power Consumption | To be tested |
