NDS2403G ATSC-T modulator

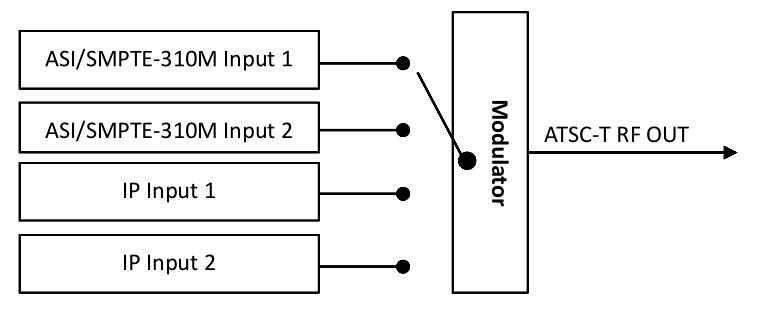

Dual IP input ports, GE ports, over UDP/RTP. Dual IP input ports, one for hot backup , over UDP/RTP, Unicast/Multicast, GE ports. Dual channel DVB-ASI/SMPTE-310M input, automatic switch-over and hot backup.
Key Specifications
- Input Self-adapted 2 Asi/SMPTE 310M input2 ASI ports input, one for hot backup, BNC interface
- Output Level ATT -20dBm~6dBm,0.1dB stepping
- Bandwidth 6 MHz
- FEC RS(208 188)+Trellis
- Power Supply AC 110V±10%,50/60Hz or AC 220V±10%, 50/60Hz
- RF range 50~860Mhz,1Hz stepping
- MER ≥ 40dB
- DPD Non-linear DPD
Overview
NDS2403G ATSC-T modulator is DEXIN’s newly designed product supporting DVB-ASI and SMPTE-310 input. After modulating the inputting signals through ATSC 8-VSB, it can output RF signals with the range between 50~860MHz. In other words, NDS2403G ATSC-T modulator supports the coding and modulating mode under ATSC-T A/53 standard. It also supports adaptive non-linear and linear digital pre-distortion (DPD). Additionally, the system of this device can be on line controlled and upgraded through network, which can be widely used in ATSC-T digital broadcasting network setup and the testing for ATSC-T set Key Features: Full complying with ATSC A/53 standard; Dual channel DVB-ASI/SMPTE-310M input, automatic switch-over and hot backup; Dual IP input ports, GE ports, over UDP/RTP; RF range: 50MHz~860MHz,1Hz stepping; Front panel and IP remote control; RS coding, data interleaving, Trellis coding; Supports adaptive linear or non-linear digital pre-distortion (DPD); Adopts constant-temperature crystal oscillator, the frequency stability can be up to 0.1 PPM; Excellent RF output performance: EVM, MER, SNR, shoulder level and etc.
Full Specifications
| Input | Self-adapted 2 Asi/SMPTE 310M input2 ASI ports input, one for hot backup, BNC interface |
| Constellation | 8VSB |
| Bandwidth | 6 MHz |
| FEC | RS(208 188)+Trellis |
| RF range | 50~860Mhz,1Hz stepping |
| Output Level ATT | -20dBm~6dBm,0.1dB stepping |
| Shoulder Level | 60dB |
| MER | ≥ 40dB |
| DPD | Non-linear DPD |
| linear DPD | over 10dB non-flatness adjustment(normally) |
| System | LCD display & keyboard operation, NMS, Chinese & English operation display |
| General | Demission(WxLxH) |
| Weight | 6.0kg |
| Temperature | 0~45℃( operation),-20~80℃( storage) |
| Power Supply | AC 110V±10%,50/60Hz or AC 220V±10%, 50/60Hz |
| Consumption | 25W |
