NDS2405G ISDB-T Modulator
3. Dual IP input ports, GE ports, over UDP/RTP. Dual IP input ports, GE ports, over UDP/RTP. Dual IP input ports over UDP/RTP, Unicast/Multicast, GE ports.
Key Specifications
- Input 2 ASI ports input, one for hot backup, BNC interface
- Constellation DQPSK, QPSK, 16QAM, 64QAM
- Output level ATT -20dbm~+5dbm，0.1db step
- Power supply AC 100V~240V,50/60Hz
- Mode mode 1(2k), mode 2(4k), mode 3(8k)
- External coding RS (204，188)
- Internal coding Convolution (1/2, 2/3, 3/4, 5/6, 7/8)
- Guard interval 1/4, 1/8, 1/16, 1/32
Overview

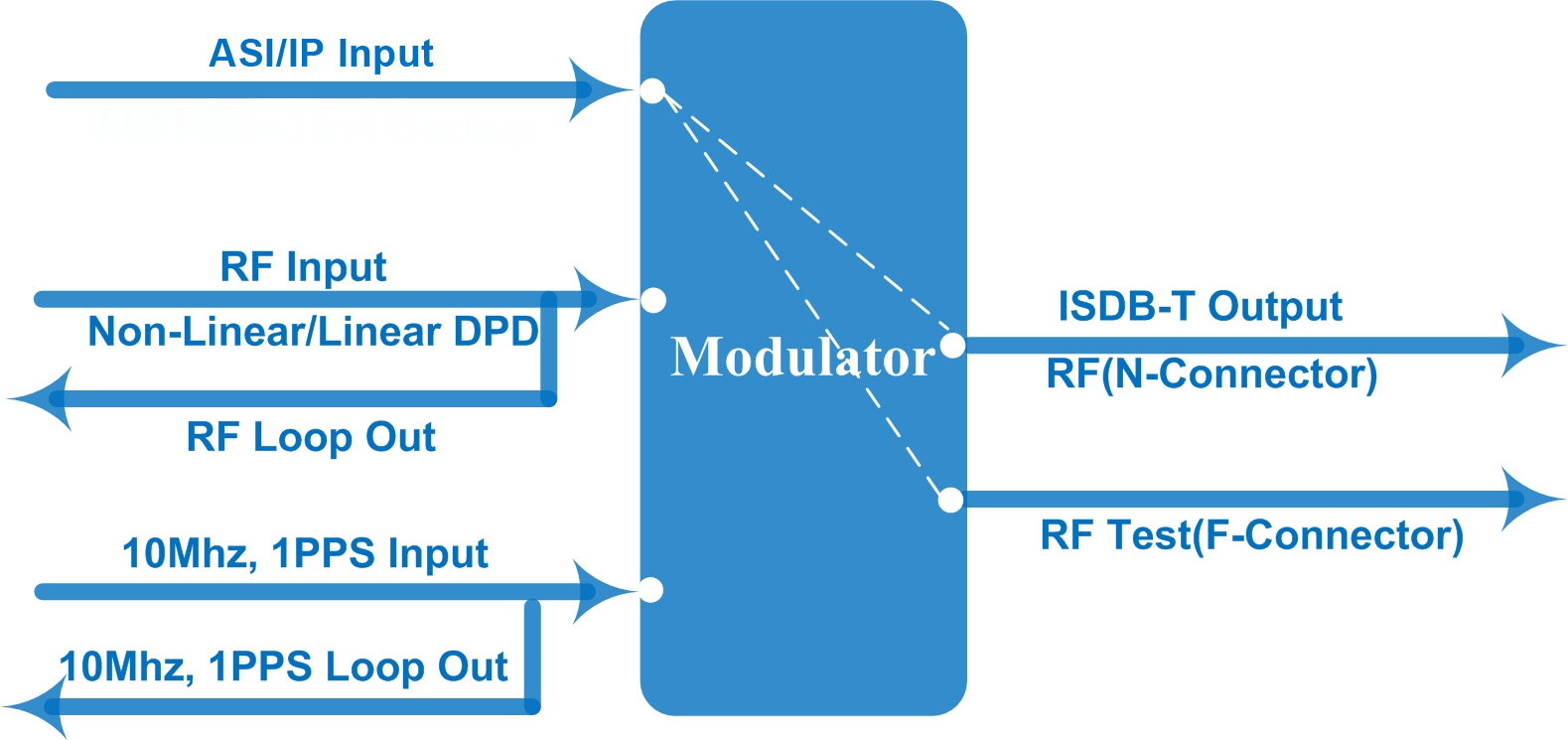

NDS2405G ISDB-T modulator is developed to adapt Brazil, Argentina and other South American country’s terrestrial digital television. The modulator's channel encoding and modulation mode is fully complying with the ARIB STD-B31 standard. This ISDB-T modulator supports two ASI and two IP input, single frequency network, and multi-frequency network. In order to improve the output performance of the transmitter, this ISDB-T modulator also simultaneously supports adaptive linear and nonlinear digital pre-distortion, layered transmission and three transmission modes. Furthermore, this device can be upgraded and controlled through network system, which can be widely used in ISDB-T digital broadcasting network's setting up and set-top box design's production and test. Key Features: 1. Fully complying with ISDB-T (ARIB STD-B31) and ISDB-TB standard; 2. Dual channel ASI input, 10MHz reference clock and 1PPS in; 3. Dual IP input ports, GE ports, over UDP/RTP; 4. Layered transmission with A, A+B, A+B+C hierarchy modes; 5. ISDB-T BTS input (with IIP packet), support single frequency and multi-frequency network; 6. Three transmission modes: mode1(2k), mode2(4k), mode3(8k)
Full Specifications
| Input | 2 ASI ports input, one for hot backup, BNC interface |
| Mode | mode 1(2k), mode 2(4k), mode 3(8k) |
| Constellation | DQPSK, QPSK, 16QAM, 64QAM |
| External coding | RS (204，188) |
| Internal coding | Convolution (1/2, 2/3, 3/4, 5/6, 7/8) |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| Hierarchy mode | A、A+B、A+B+C |
| Time domain interlacing | mode 1: 0, 4, 8, 16 mode 2: 0, 2, 4, 8mode 3: 0, 1, 2, 4 |
| Bandwidth | 6MHz |
| RF Out | Connector |
| RF range | 50~999Mhz，1Hz step |
| Output level ATT | -20dbm~+5dbm，0.1db step |
| MER | ≥ 42db |
| Non-linear DPD | over 10db ACPR improvement (normally) |
| linear DPD | over 10db non-flatness adjustment(normally) |
| System | LCD display & keyboard operation, WEB, Chinese & English operation display |
| General | Demission (W*L*H) |
| Weight | 4.9kg |
| Temperature | 0~45℃(operation),-20~80℃(storage) |
| Power supply | AC 100V~240V,50/60Hz |
