NDS3103 IP Multiplexer

Overview

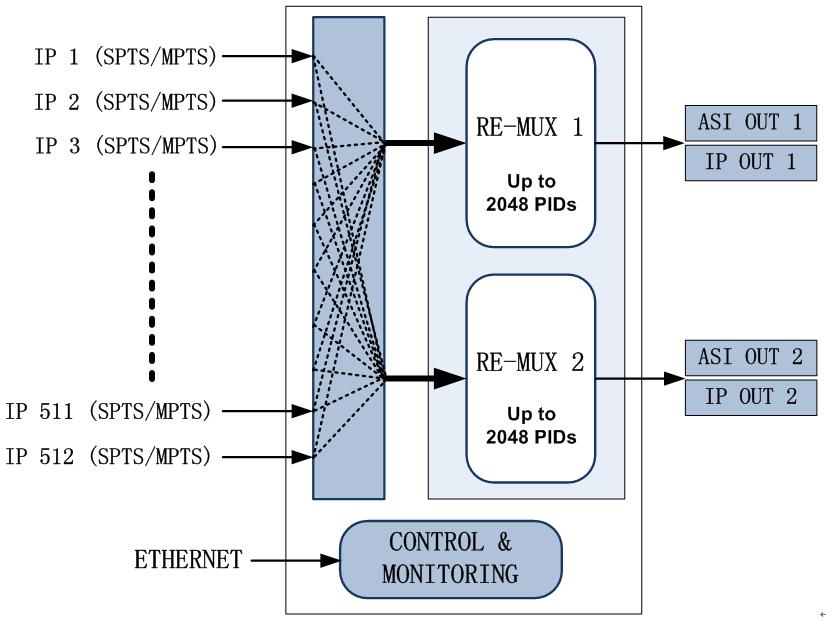

NDS3103 IP multiplexer is a professional TS processor used in digital TV broadcasting head-end system. It receives up to 512 IP (SPTS/MPTS) channels and multiplexes the input programs into 2 TS stream output with EPG (electronic program guide), CA (conditional access), data broadcasting and etc inserted. Key Features:  Fully complying with ISO13818 and EN300 468 standard;  512 IP (SPTS/MPTS) input over UDP;  2 independent groups of ASI output (each group has 2 ports);  2 IP output over UDP;  Support accurate PCR adjusting;  Support PID passthrough, re-mapping, multiplex up to 2048 PIDs per out channel;  Support PSI/SI rebuilding and editing;  Huge buffer memory for saving the overflowing code stream; LCD/keyboard and Web-based NMS management Specifications: Support multiplex maximum 2048 PIDs each output channel; 2 x independent channels of ASI output (each channel has 2 ports) (up to 210Mbps); 512 IP (SPTS/MPTS) input over UDP; 2 independent groups of ASI output (each group has 2 ports); 2 IP output over UDP; 512 x MPTS/SPTS, Unitcast/Multicast, UDP Protocol; 2 x IP (Unitcast/Multicast), UDP Protocol (up to 230Mbps)
