NDS3107G Tuner Multiplexer
Support 16 FTA DVB-S/S2/S2X (DVB-C, DVB-T/(T), ISDB-T, ATSC optional )input, 2 ASI input. 16 tuners input, (DVB-C, DVB-T/(T), ISDBT, S/S2/S2X, ATSC optional), F type. 4 IP output (MPTS) over UDP, RTP/RTSP protocol.
Key Specifications
- Input 16 tuners input, (DVB-C, DVB-T/(T), ISDBT, S/S2/S2X, ATSC optional), F type2 ASI input, BNC interface
- Max input bitrate ≤120 Mbps
- Constellation 16/32/64/128/256 QAM
- Bandwidth 6/7/8 M
- Symbol rate QPSK/8PSK /16APSK :0.5~45 Msps32APSK: 0.5~40Msps;
- FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10
- Signal Strength - 65~ -25dBm
- Standard J.83A(DVB-C), J.83B, J.83C
Overview

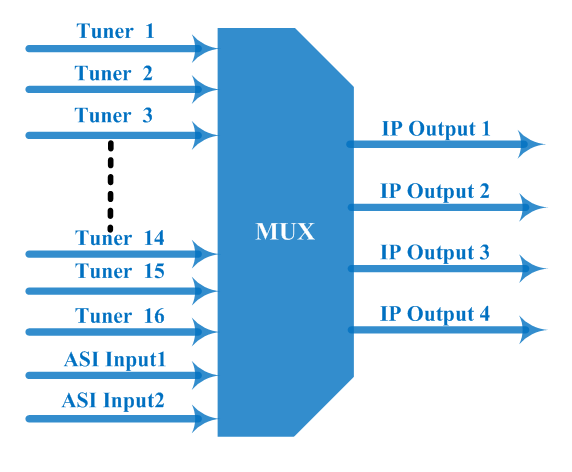

NDS3107G Tuner Input Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system with TS output through IP port. It can multiplex up to 16 channels Tuner and 2 ASI input to IP (MPTS). This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, and service filtering. Key Features: Support 16 FTA DVB-S/S2/S2X (DVB-C, DVB-T/(T), ISDB-T, ATSC optional )input, 2 ASI input; Support BISS descrambling, and each channel bit rate cannot exceed 80Mbps; Support DisEqc function; 4 IP output (MPTS) over UDP, RTP/RTSP protocol; 2 GE mirrored output, up to 850Mbps; Support PID filtering, re-mapping; Support PSI/SI rebuilding and editing; 16 tuner input ports; IP address reset to; GE1 IP output port; GE2 IP output port; Support “Null PKT Filter” function Specifications: 2 ASI input, BNC interface; Amount of output PID per input; 4 IP (MPTS) output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast; Max input bitrate; Max input bitrate; Max input bitrate; Max input bitrate; Max input bitrate
Full Specifications
| Input | 16 tuners input, (DVB-C, DVB-T/(T), ISDBT, S/S2/S2X, ATSC optional), F type2 ASI input, BNC interface |
| Standard | J.83A(DVB-C), J.83B, J.83C |
| Constellation | 16/32/64/128/256 QAM |
| Bandwidth | 6/7/8 M |
| Symbol rate | 1~45 Msps |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Signal Strength | - 65~ -25dBm |
| Max input bitrate | ≤120 Mbps |
| Symbol rate | 1~45 Msps |
| FEC | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| Max input bitrate | ≤120 Mbps |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤120 Mbps |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps32APSK: 0.5~40Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
