NDS3202A Dual Channel Audio Encoder
2 independent ASI outputs, BNC interface (Mirror out of MPTS/SPTS1/SPTS2). IP output over UDP/RTP protocol, 100M/1000M Self-adaptive rj45 interface (unicast / multicast). 1*ASI input, BNC interface.
Key Specifications
- Input Analog balanced audio, XLR interfaces
- Output 2 independent ASI outputs, BNC interface (Mirror out of MPTS/SPTS1/SPTS2)
- Encoding Sample rate
- Multiplexing Maximum PID Number
- Bit-rate 64/96/128/192/256/320/384kbps
- Sample accuracy 16bit
- Power Requirements AC 110V±10%,50/60HzAC 220V±10%,50/60Hz
- Sound Track left, right, stereo
Overview

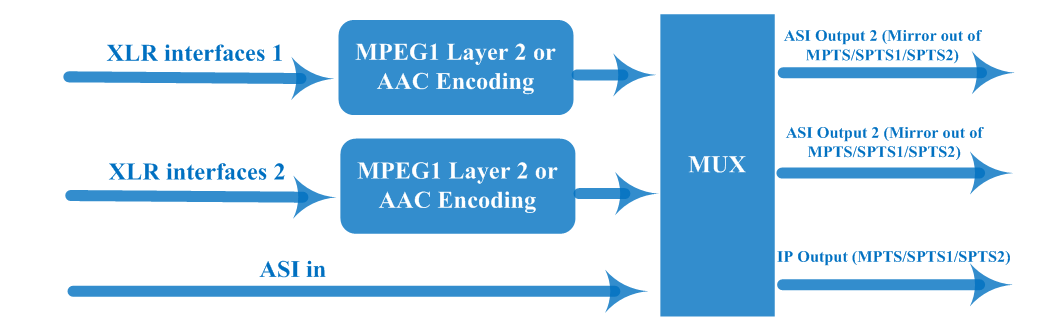

Key Features: Dual power supply (hot-plugging) and Single power supply are optional Specifications: IP output over UDP/RTP protocol, 100M/1000M Self-adaptive rj45 interface (unicast / multicast); Analog balanced audio, XLR interfaces; AES / EBU digital audio, XLR interface; 1*ASI input, BNC interface; 2 independent ASI outputs, BNC interface (Mirror out of MPTS/SPTS1/SPTS2)
Full Specifications
| Input | Analog balanced audio, XLR interfaces |
| Encoding | Sample rate |
| Sample accuracy | 16bit |
| Bit-rate | 64/96/128/192/256/320/384kbps |
| Sound Track | left, right, stereo |
| Multiplexing | Maximum PID Number |
| Output | 2 independent ASI outputs, BNC interface (Mirror out of MPTS/SPTS1/SPTS2) |
| System function | LCD/keyboard, Web GUI managementChinese and English language |
| General | Dimensions (W×D×H) |
| Temperature range | 0~45℃(operation), -20~80℃(storage) |
| Power Requirements | AC 110V±10%,50/60HzAC 220V±10%,50/60Hz |
| Power Consumption | <15W |
| Weight | About 3.2kg |
