NDS3211HV HEVC&H.264 HD Encoder
HEVC/H.265 HD (with B frame to ensure high video compression ratio and bitrate stability) and MPEG-4 AVC/H.264 HD video encoding. 2×ASI output ports, BNC interface. Support ASI output and IP over UDP /RTP/RTSP output.
Key Specifications
- Stream output 2×ASI output ports, BNC interface
- Encoding HEVC/H.265 HD; MPEG-4 AVC/H.264 HD
- Bitrate Range HEVC/H.265: 0.5 – 20.00 MbpsMPEG-4 AVC/H.264: 4 – 20.00 Mbps
- Video Encoding MPEG-2 HD/SD;MPEG-4 AVC/H.264 HD/SD
- MPEG-4 AVC/H.264 HD HEVC/H.265 HD
- Stream Input 2 ASI Input for remux
- GOP Structure IPPP, IBBP
- Bit-rate 48Kbps~384Kbps
Overview

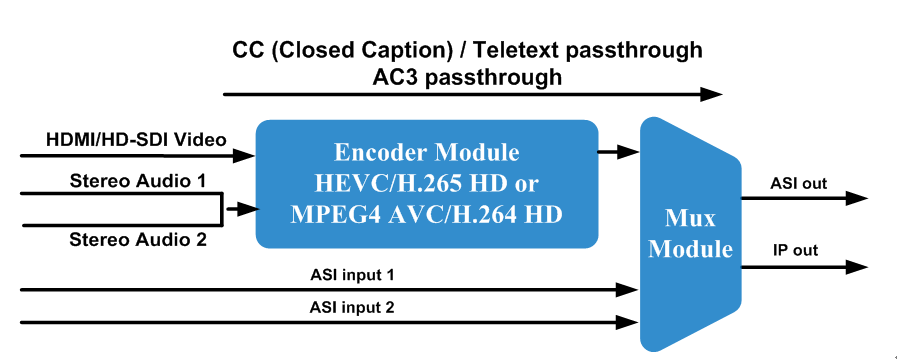

NDS3211HV H.264/HEVC HD Encoder is the new broadcasting audio & video encoding device with powerful functionality. It is equipped with multiple video input interfaces (HDMI, HD-SDI) and audio input interfaces (HDMI, SDI, AES, RCA and XLR) to make it possible to compatible with different signal sources. Multiple audio and video encoding formats are available to meet customers’ various requirements. It supports 2 stereo (4 mono) to mix with the video to form a stream output. The encoded program will finally output in TS through ASI/IP port. Key Features: LCD / keyboard control and web management Specifications: HEVC/H.265 HD (with B frame to ensure high video compression ratio and bitrate stability) and MPEG-4 AVC/H.264 HD video encoding; Support 2 stereos or 4 mono audio encoding; HEVC/H.265 HD; MPEG-4 AVC/H.264 HD; 2×ASI output ports, BNC interface; Support HDMI or HD-SDI input; Support 2 ASI input for re-mux; Support ASI output and IP over UDP /RTP/RTSP output; MPEG-4 AVC/H.264 HD
Full Specifications
| MPEG-4 AVC/H.264 HD | HEVC/H.265 HD |
| 1920×1080i@60/59.94 | 1920×1080i@601920×1080p@60/30 |
| 1920×1080i @50 | 1920×1080i@501920×1080p@50/25 |
| Encoding | HEVC/H.265 HD; MPEG-4 AVC/H.264 HD |
| Bitrate Range | HEVC/H.265: 0.5 – 20.00 MbpsMPEG-4 AVC/H.264: 4 – 20.00 Mbps |
| Rate Control | CBR/VBR |
| GOP Structure | IPPP, IBBP |
| Chroma | 4:2:0 |
| Sampling rate | 48KHz |
| Bit-rate | 48Kbps~384Kbps |
| Stream Input | 2 ASI Input for remux |
| Stream output | 2×ASI output ports, BNC interface |
| System function | LCD/keyboard and web management |
| General | Dimensions |
| Temperature | 0~45℃(Operation), -20~80℃(Storage) |
| Power | AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz |
| Consumption | 15W |
| Chipset | Magnum |
| Video Encoding | MPEG-2 HD/SD;MPEG-4 AVC/H.264 HD/SD |
| Bit Rate | 0.20 – 60.00 Mbps |
