NDS3224V H.265/H.264 HD Encoder
Encoding with highest compression format.
Key Specifications
- Stream output IP (1 MPTS and maximum 4 SPTS) output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast); IPv4, IPv6 outputIP null packet filter
- Input 4/8/12×HD-SDI or HDMI (1.4) inputs for option, HDCP 1.4
- HEVC/H.265 MPEG-4 AVC/H.264
- Bitrate 0.5Mbps~20Mbps (each channel)
- Bit-rate (each channel) 18Kbps~384Kbps
- VideoEncoding Encoding Format
- Audio Gain 0~255
- GOP Structure IBBP, IPPP
Overview
Dexin HEVC/H.265 encoder adopts Fujitsu chip which offers stable bitrate with lower fluctuation compared with other encoding chips, so it provides smooth TS for modulators. It is widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc. There are 3 major picture types used in the different video algorithms, they are I, P and B. Specifications: Encoding with highest compression format
Full Specifications
| Input | 4/8/12×HD-SDI or HDMI (1.4) inputs for option, HDCP 1.4 |
| VideoEncoding | Encoding Format |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080I-50 | 4*1080P-50 |
| 4*1080I-60 | 4*1080P-60 |
| Chroma | 4:2:0 |
| Bitrate | 0.5Mbps~20Mbps (each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP, IPPP |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| Bit-rate (each channel) | 18Kbps~384Kbps |
| Audio Gain | 0~255 |

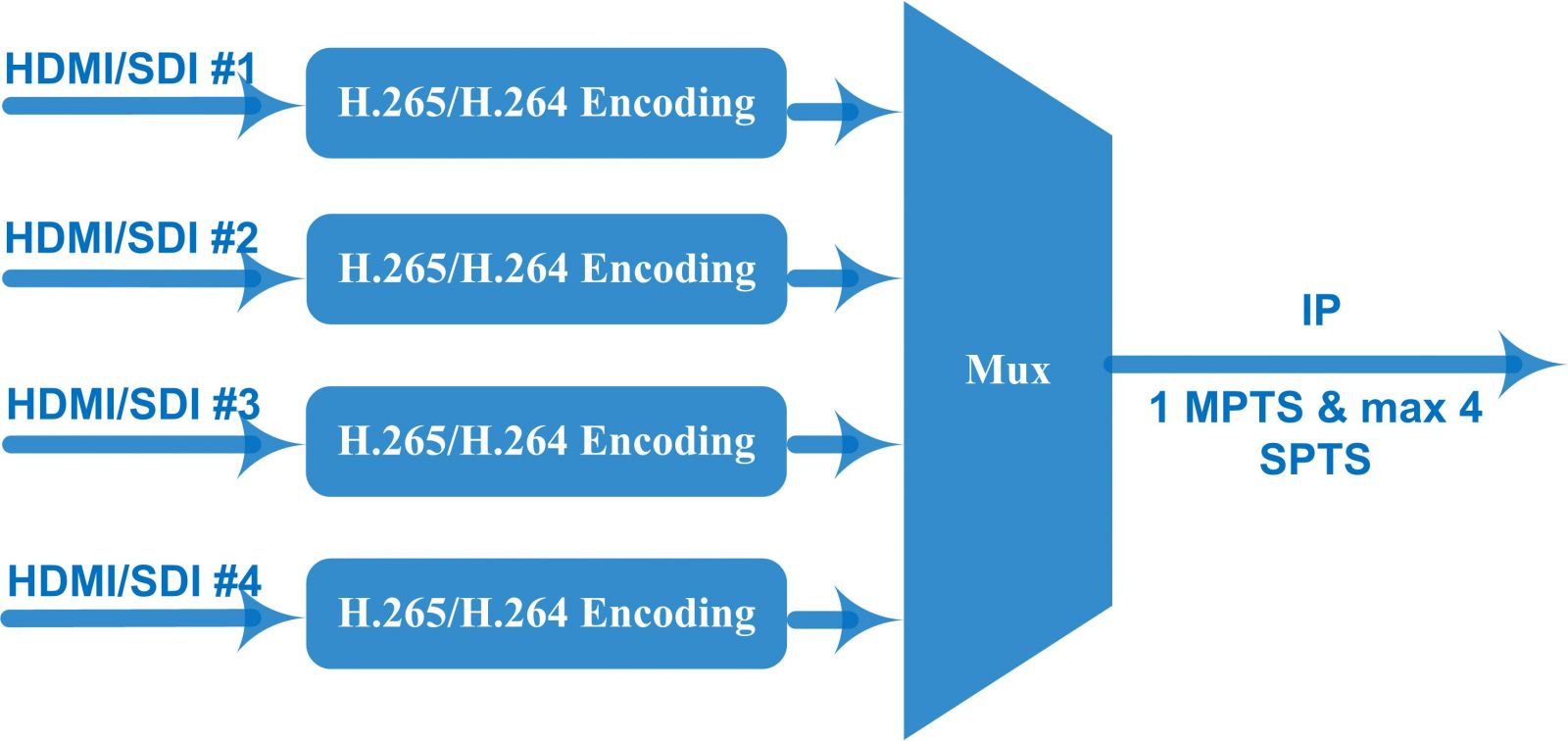

| Stream output | IP (1 MPTS and maximum 4 SPTS) output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast); IPv4, IPv6 outputIP null packet filter |
| System | Web based management |
| Approx weight | 5kg |
| Temperature | 0~45℃(work), -20~80℃（Storage） |
| Power | AC 100V-220V±10%, 50/60Hz |
| Input | 4/8/12 HDMI |
| Resolution | 1080p, 1080i, 720p |

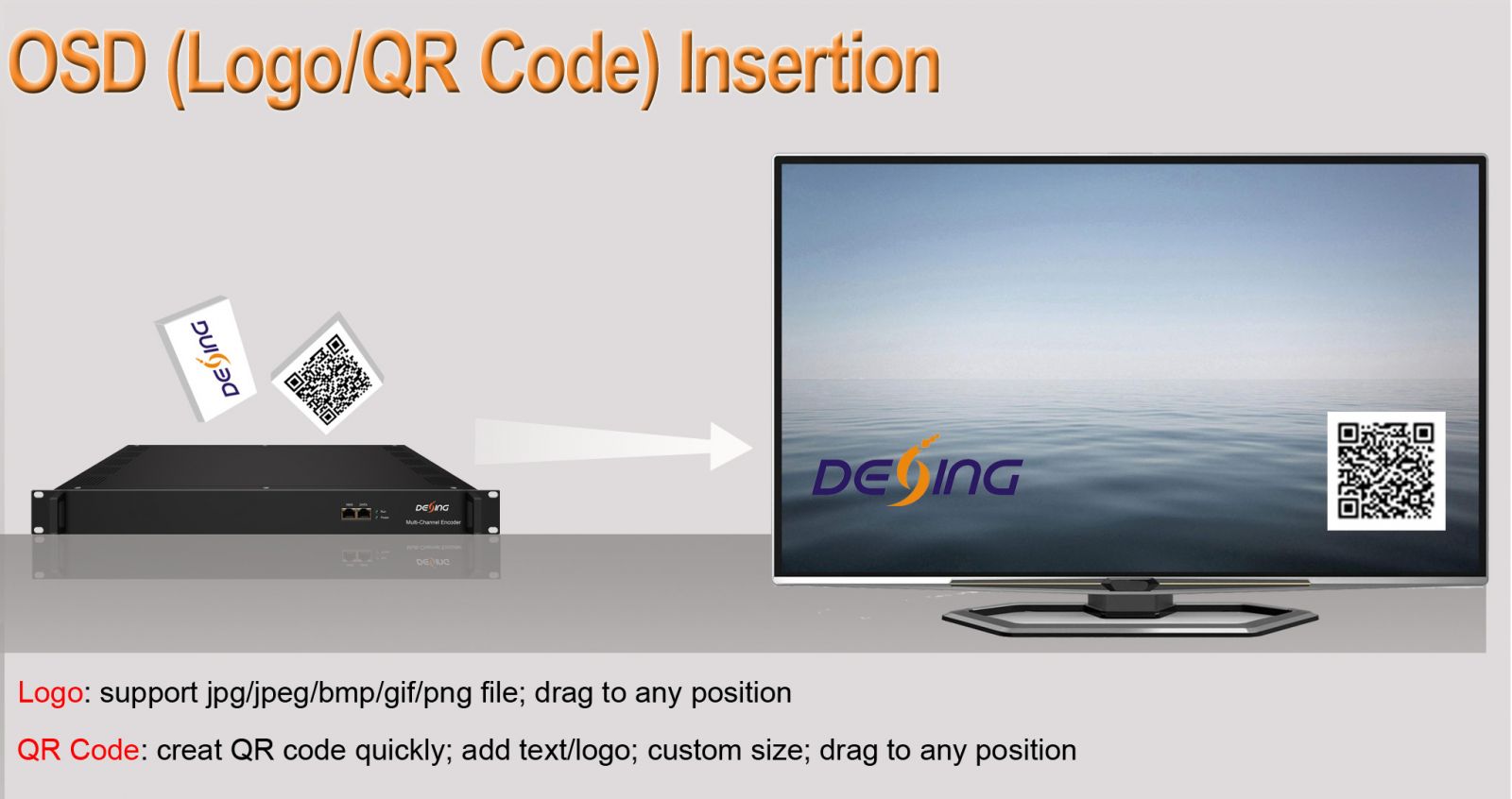

| OSD (logo/QR code) Insertion Function | support |
