NDS3228M-N (V2) Multi-Channel Network Encoder(48HDMI, H.265/MPEG4 HD)
l HEVC/ H.265 , MPEG 4 AVC/H.264 video encoding format. HEVC/H.265 HD/SD; MPEG-4 AVC/H.264 HD/SD. 8/16/24/32/40/48 HDMI inputs, with 8/16/24/32/40/48 SPTS output (each encoder module with 8 HDMI inputs and 1 DATA port, only…
Key Specifications
- Stream output IP out over UDP (Unicast/Multicast),SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoder board)
- Encoding HEVC/H.265 HD/SD; MPEG-4 AVC/H.264 HD/SD
- Input 8/16/24/32/40/48 HDMI inputs
- Bit-rate 1~13Mbps each channel
- Output 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720 x 576_25P, 720 x 480_30P
- Audio Encoding
- MPEG-1 Layer 2Bit-rate 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
- Audio Gain 0-255 Adjustable
Overview

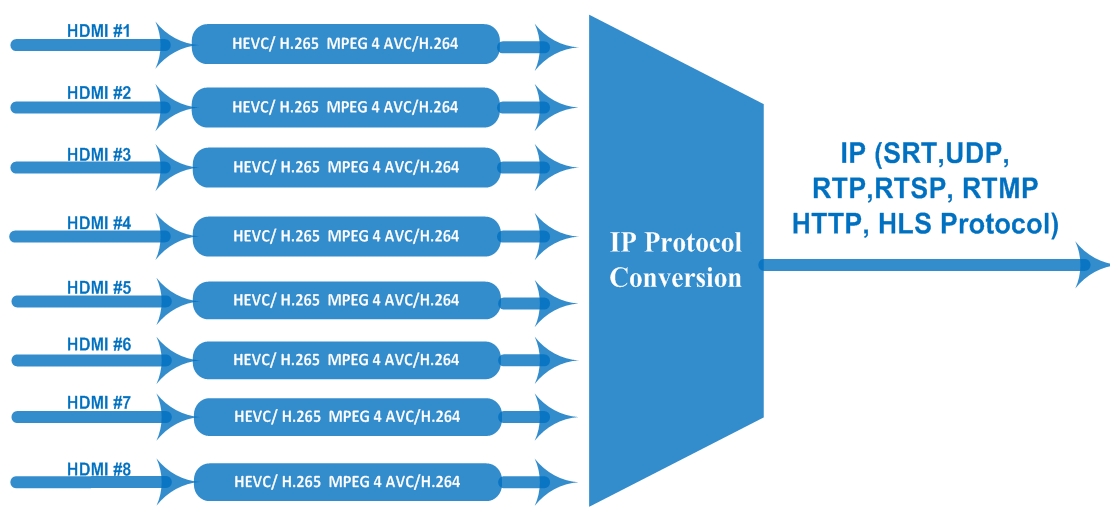

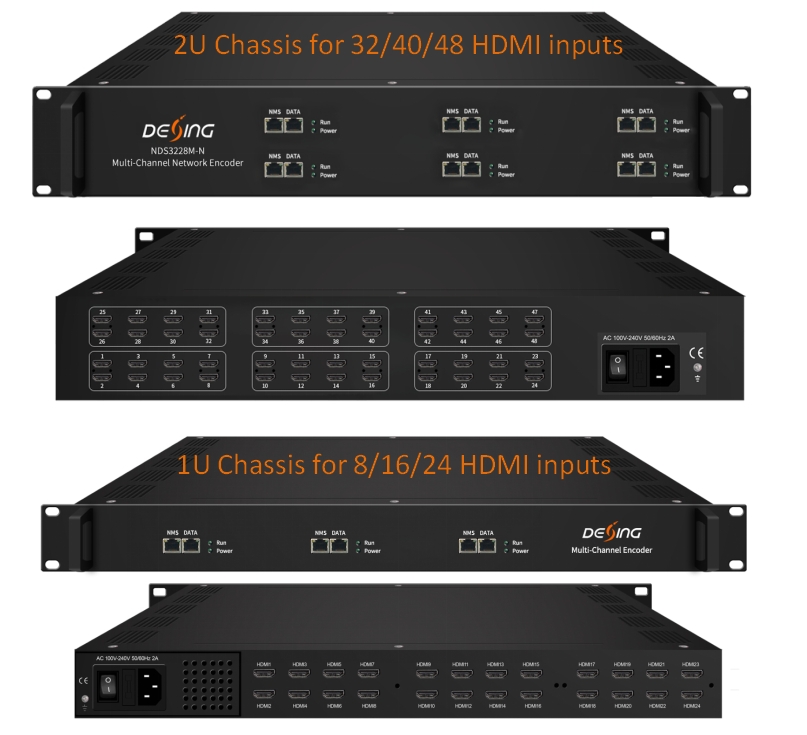

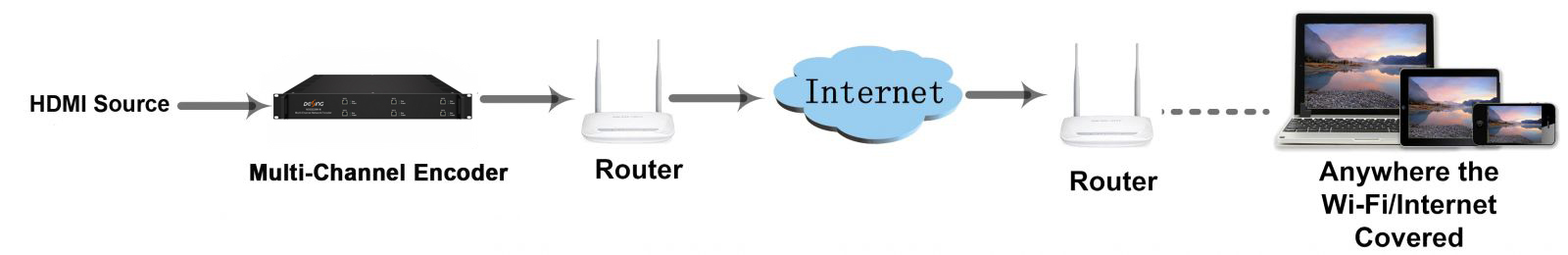

3228M-N Multi-Channel Network Encoder is an encoding device for IP broadcasting. It is equipped with 8/16/24/32/40/48 HDMI-input channels with HEVC/H.265 and MPEG-4 AVC/H.264 video encoding and MPEG-1 Layer 2, LC-AAC, HE-AAC audio encoding and AC3 Pass through. It can transfer the live program through the internet/LAN and output IP streams over UDP (Unicast/Multicast), SRT, RTSP, RTMP, HTTP and HLS, and the output signals can be received by PC, phone and other mobile terminals. NDS3228M-N enables you to watch the programs via your IP STB, PC or TV anywhere. Specifications: l HEVC/ H.265 , MPEG 4 AVC/H.264 video encoding format; l MPEG1 Layer II, LC/HE audio encoding format and AC3 Pass Through, and audio gain adjustment; 8/16/24/32/40/48 HDMI inputs, with 8/16/24/32/40/48 SPTS output (each encoder module with 8 HDMI inputs and 1 DATA port, only supporting SPTS without “Null Packets”, Not MPTS), max 48 HDMI inputs from 6 encoder modules; HEVC/H.265 HD/SD; MPEG-4 AVC/H.264 HD/SD; l Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP and HLS; 8/16/24/32/40/48 HDMI inputs
Full Specifications
| Input | 8/16/24/32/40/48 HDMI inputs |
| Output | 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720 x 576_25P, 720 x 480_30P |
| Encoding | HEVC/H.265 HD/SD; MPEG-4 AVC/H.264 HD/SD |
| Bit-rate | 1~13Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) |
| Audio | Encoding |
| Sampling rate | 32KHz, 48KHz, 44.1KHz |
| Resolution | 24-bit |
| Audio Gain | 0-255 Adjustable |
| MPEG-1 Layer 2Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| LC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| HE Bit-rate | 48/56/64/80/96/112/128 kbps |
| Stream output | IP out over UDP (Unicast/Multicast),SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoder board) |
| System function | Network management(WEB) |
| Environment | 0~45℃(work)；-20~80℃（Storage） |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
