NDS3233 Audio Encoder
Supports IP output over UDP mirror ASI output. IP output over UDP mirror ASI output, 100M Base-T Ethernet interface (unicast/multicast). MPEG1 Layer 2 audio encoding.
Key Specifications
- Stream output 1*ASI output, BNC interface
- Encoding Format MPEG1 Layer 2
- Audio Gain -20 ~ +6 dB
- Bit-rate 32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s
- Power supply DC12V
- Sampling Rate 48KHz
- Temperature 0~45℃ (work), -20~80℃（Storage）
- System LCD/keyboard operating, web-based NMS manage
Overview

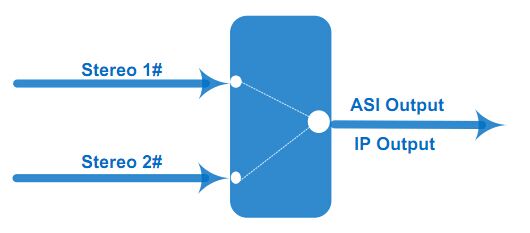

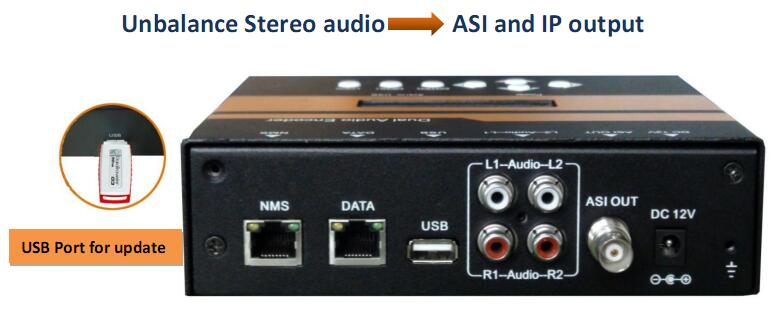

DEXIN NDS3233 is a professional audio encoder with powerful functionality. It has dual unbalanced audio input (one for backup) supporting MPEG 1 Layer II compression. Furthermore, it supports audio gain control in a wide range. The encoded audio will finally output through both ASI and DATA ports for further transmission. Key Features: 2 pairs of unbalanced stereo inputs(one for backup); MPEG1 Layer 2 audio encoding; Support audio gain control; Support ASI output; Supports IP output over UDP mirror ASI output; LCD / keyboard and web-based NMS operation; Update device through NMS and USB port; Unbalance Stereo audio ASI and IP output; USB Port for update; 2 pairs of unbalanced stereo inputs(one for backup); MPEG1 Layer 2 audio encoding; Support audio gain control Specifications: 2 pairs of unbalanced stereo inputs(one for backup), BNC interface; 1*ASI output, BNC interface; IP output over UDP mirror ASI output, 100M Base-T Ethernet interface (unicast/multicast); MPEG1 Layer 2
Full Specifications
| Encoding Format | MPEG1 Layer 2 |
| Audio Gain | -20 ~ +6 dB |
| Sampling Rate | 48KHz |
| Bit-rate | 32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s |
| Stream output | 1*ASI output, BNC interface |
| System | LCD/keyboard operating, web-based NMS manage |
| Approx weight | ＜1kg |
| Temperature | 0~45℃ (work), -20~80℃（Storage） |
| Power supply | DC12V |
