NDS3238 8-in-1 Audio Encoder

Overview

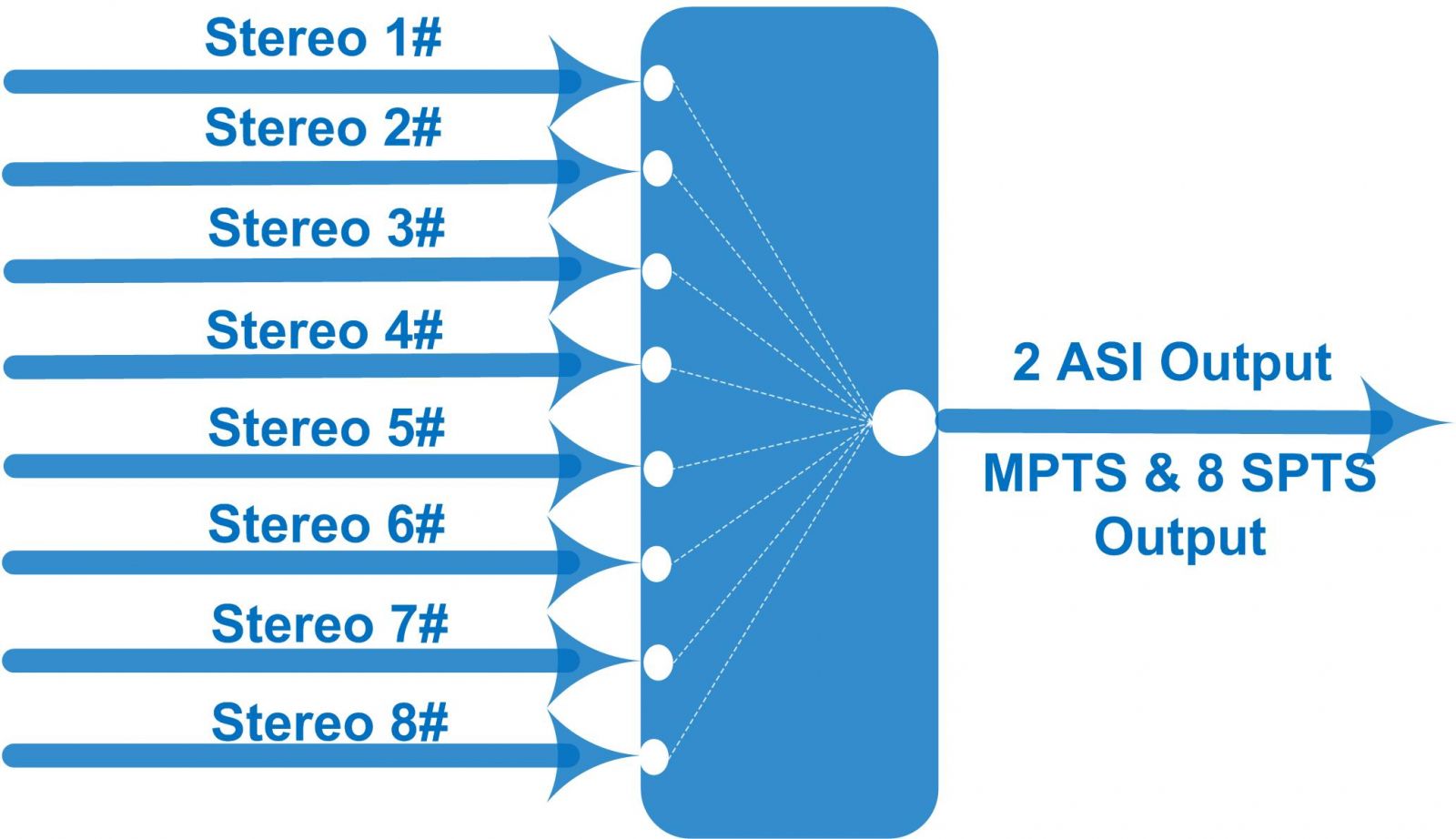

DEXIN NDS3238 is a professional audio encoder with powerful functionality. It has 8 independent channels of unbalanced audio input supporting MPEG 1 Layer II compression. Furthermore, it supports audio gain control in a wide range. The encoded audio will finally output through both ASI and DATA ports for further transmission. Key Features:  8 pairs of unbalanced stereo audio inputs;  MPEG1 Layer 2 audio encoding;  Support audio gain control;  Support 2 ASI mirrored output;  Supports IP (MPTS & 8 SPTS) output over UDP;  LCD / keyboard and web-based NMS operation;  Update device through NMS port; 8 pairs of unbalanced stereo audio inputs; MPEG1 Layer 2 audio encoding; Support audio gain control; Support 2 ASI mirrored output; Supports IP (MPTS & 8 SPTS) output over UDP Specifications: 8 pairs of unbalanced stereo audio inputs, BNC interface; 2*ASI mirrored output, BNC interface; 32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s (each channel)---for stereo audio; 32/48/56/64/80/96/112/128/160Kb/s (each channel)---for Left/Right audio; MPTS & 8 SPTS over UDP, 1000M Base-T Ethernet interface (unicast/multicast); MPEG1 Layer 2

Full Specifications
