NDS3242 2 in 1 MEPG-2 H.264 HD Encoder

Overview

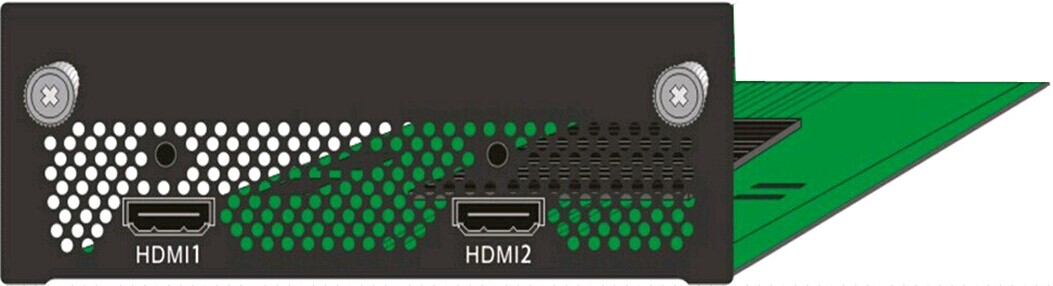

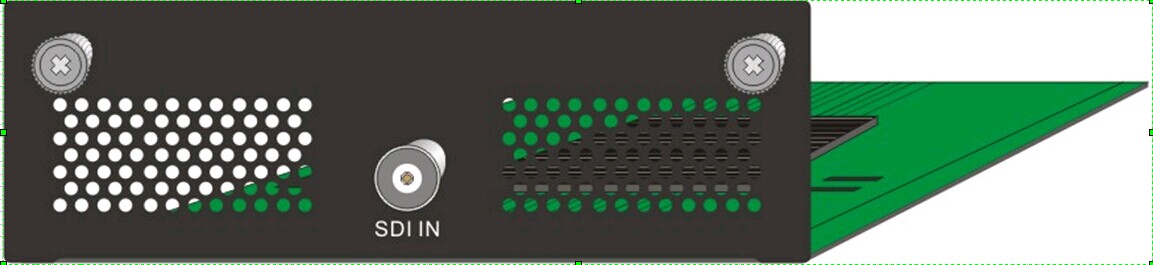

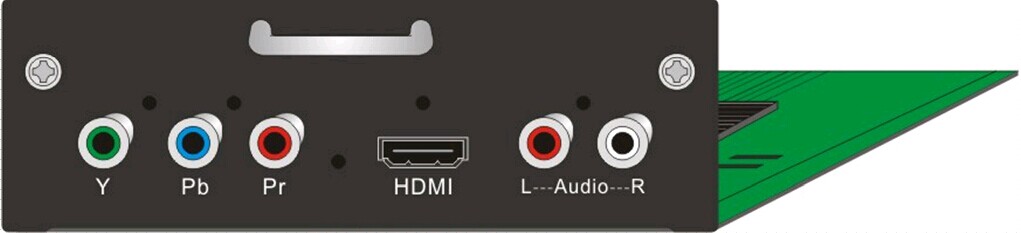

NDS3242 is a DEXIN’s professional HD/SD audio & video encoder which has 2 channels of HDMI input (SDI module or YPbPr+HDMI+CVBS module optional) for MPEG-2 and MPEG-4 AVC/H.264 video encoding . It is also equipped with 1 ASI input for re-mux. The 2 encoded programs will output through 1 group of ASI ports or IP ports in 1 MPTS or 2 SPTS. It adopts plug-gable design to make it conveniently change encoding module (HDMI/SDI/YPbPr+HDMI+ CVBS) as needed. Key Features: MPEG2 & MPEG4 AVC/H.264 HD video encoding; Support CC (closed caption ), EIA 608, EIA 708 and Line 21 for SDI encoder board; HDMI/SDI/YPbPr+HDMI+CVBS input module optional, pluggable and changeable encoding modules; Support Low Delay function; Support PSI/SI editing and inserting; Supports IP null packet filter; ASI output (mirror out as 1 MPTS or 2 SPTS), IP (1 MPTS & 2 SPTS) output over UDP, RTP/RTSP; LCD display, Remote control; Web-based NMS management; Updates via web Specifications: MPEG2; MPEG4 AVC/H.264; HDMI/YPbPr/CVBS 3-in-1 Input; MPEG2; MPEG4 AVC/H.264; -for MPEG4 AVC/H.264 only); MPEG2; MPEG4 AVC/H.264; MPEG2; MPEG4 AVC/H.264; 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)

Full Specifications
