NDS3242A 4-in-1 MPEG2 H.264 HD Encoder (Full HD)
MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding. ASI output as mirror of MPTS or SPTS 1-4, IP (MPTS & 4 SPTS) output over UDP, RTP/RTSP. 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only).
Key Specifications
- Input SDI*4 or HDMI*4 + 1 ASI in
- Encoding MPEG2 & MPEG4 AVC/H.264
- Resolution 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50P720*480_60i, 720*576_50i
- Support object resolution(for downscale conversion) 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)1440*1080_60i, 1440*1080_50i,1280*720_60p, 1280*720_50P720*480_60i, 720*576_50i
- output 2*ASI out (BNC type, mirror ports/the same one TS);IP (1 MPTS & 4 SPTS) over UDP, RTP/RTSP (RJ45, 1000M)
- Bit Rate 1~19.5Mbps
- Aspect Ratio 16:9, 4:3
- Dialog NormalizationApplicable for DD AC3 encoding only) -31 ~ -1 dB
Overview

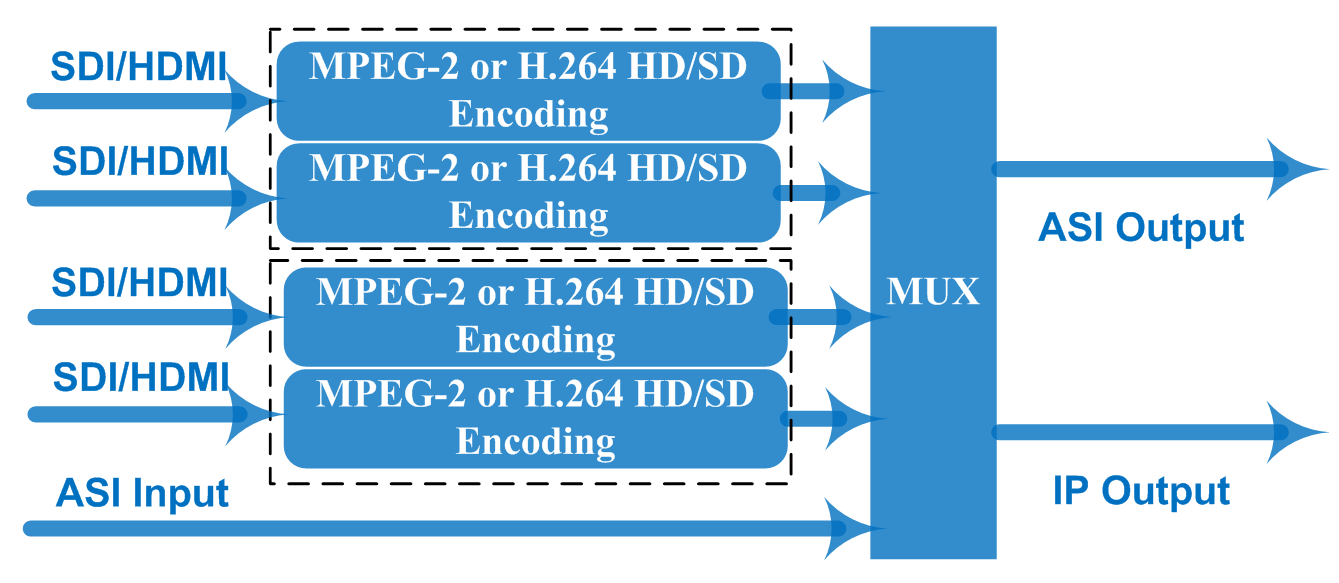

NDS3242A 4‐in‐1 MPEG2/H.264 HD Encoder is a DEXIN new professional HD/SD audio & video encoding device with a powerful functionality. It is equipped with 4 SDI or 4 HDMI inputs supporting MPEG‐2 and MPEG‐4 AVC/H.264 video encoding. The 4 encoded programs will output through ASI and IP ports in MPTS or SPTS, and there is also one ASI in port for re-multiplexing. Specifications: MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding; 0.5~19.5Mbps for H.264 encoding; 1~19.5Mbps for MPEG-2 encoding; The inner drawer‐type structural design has greatly facilitates the change of encoding modules if needed.; 4*SDI inputs or 4*HDMI inputs or 2* SDI + 2* HDMI inputs; Support resolution downscale conversion; Support CC (closed caption) EIA 608 & EIA 708 & Line 21 (for SDI input version only); ASI output as mirror of MPTS or SPTS 1-4, IP (MPTS & 4 SPTS) output over UDP, RTP/RTSP
Full Specifications
| Encoding | MPEG2 & MPEG4 AVC/H.264 |
| Input | SDI*4 or HDMI*4 + 1 ASI in |
| Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50P720*480_60i, 720*576_50i |
| Support object resolution(for downscale conversion) | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)1440*1080_60i, 1440*1080_50i,1280*720_60p, 1280*720_50P720*480_60i, 720*576_50i |
| Bit Rate | 1~19.5Mbps |
| Chroma Sample | 4:2:0 |
| Aspect Ratio | 16:9, 4:3 |
| Dialog NormalizationApplicable for DD AC3 encoding only) | -31 ~ -1 dB |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
| Local interface | LCD + control buttons |
| Remote management | Web NMS |
| Low Delay Mode | Normal, mode 1, mode 2, Manual |
| output | 2*ASI out (BNC type, mirror ports/the same one TS);IP (1 MPTS & 4 SPTS) over UDP, RTP/RTSP (RJ45, 1000M) |
| NMS interface | RJ45, 100M |
| Language | English |
| Power | AC 100V~240V |
| Dimensions | 482*400*44mm |
| Operation temperature | 0~45℃ |
| Bit rate Mode | CBR/VBR option |
