NDS3243 Single Channel HD Transcoder
Support AVS+, MPEG-2, H.264 SD/HD decoding, CVBS/YPbPr/HDMI/SDI output HD/SD resolutions. 2 groups separate ASI outputs (each group has 2 channels, as a copy of one of IP) output, BNC interface. Support 32*IP (UDP/RTP) input…
Key Specifications
- Audio Output 1*Stereo /2*mono, HDMI，SDI
- Decoding Video Output
- Stream Out 3*IP over UDP protocol, 2*100M/1000M Base-T Ethernet Interface, one for backup
- Audio Bit Rate 64Kbps-384Kbps
- Stream In 32 IP over UDP/RTP, 2*100/1000M Base-T Ethernet Interface
- Resolution 480i，480p，576i，576p，720p@50，720p@60，1080i@50，1080i@60, 1080p@50, 1080p@60
- BISS Descramble 1 program
- Audio any to any; AC3 pass through
Overview

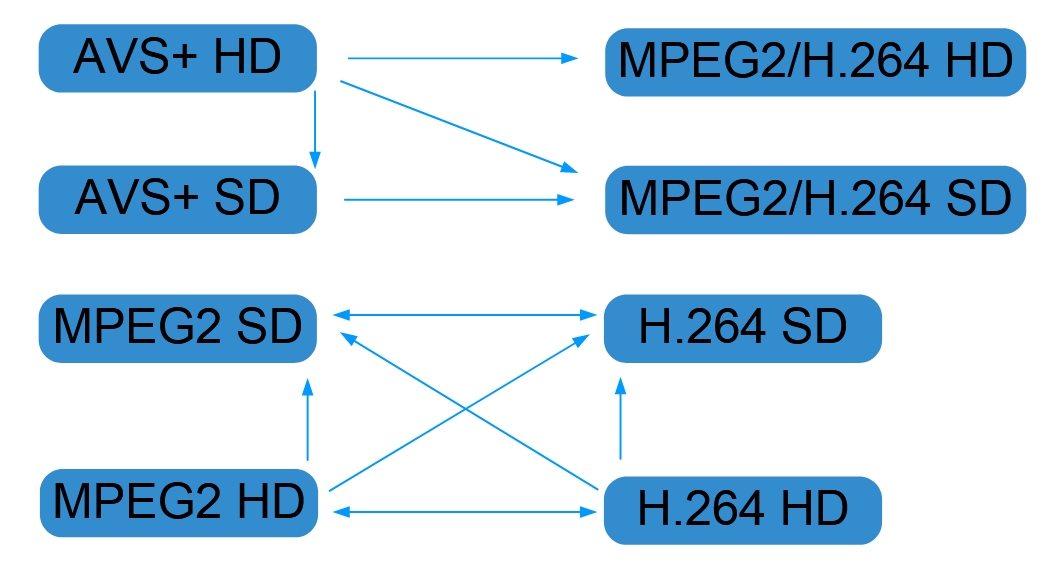

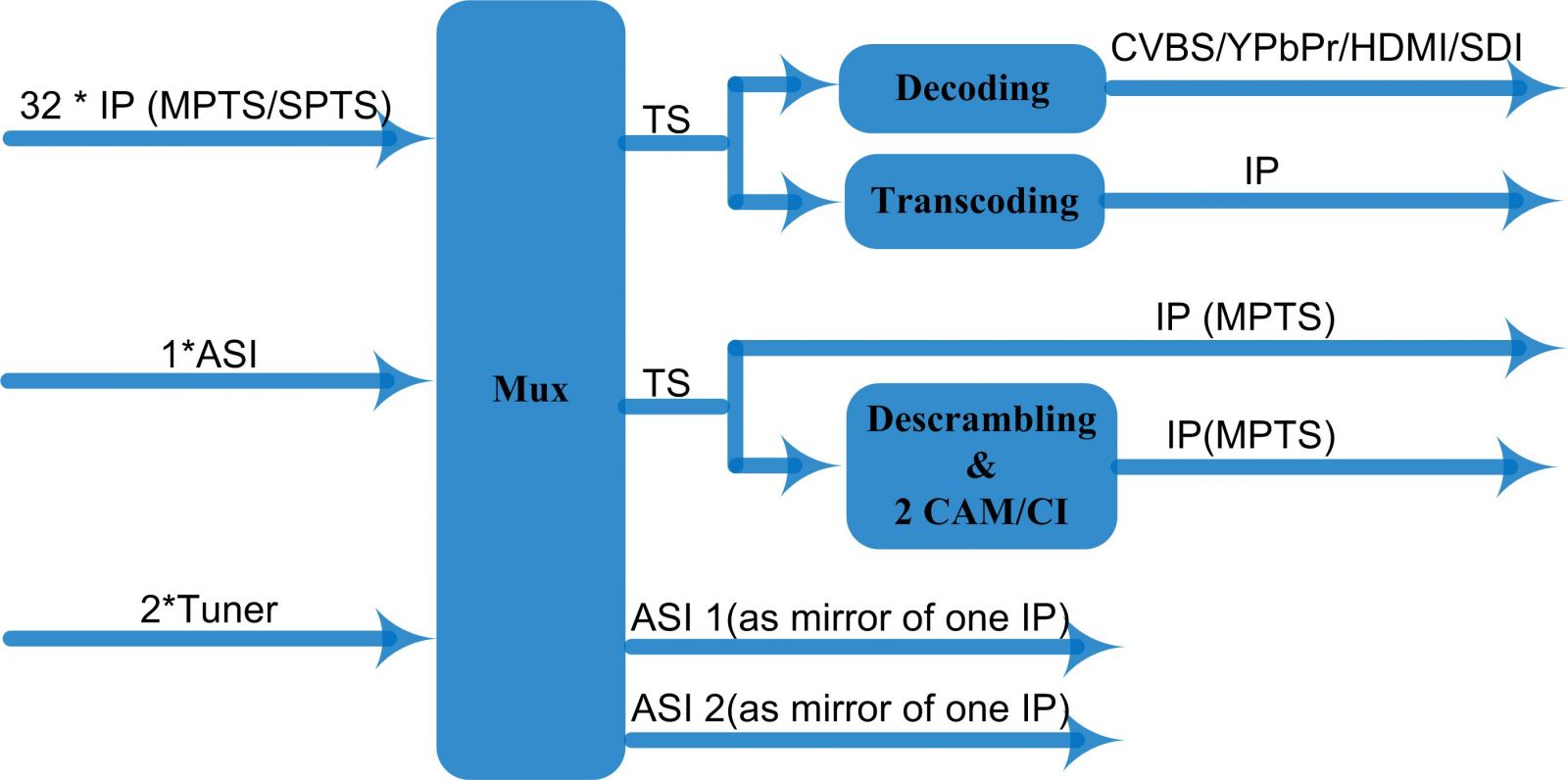

DEXIN NDS3243 is a high integrated device which contains demodulation (2*DVB-C/T/S2/ATSC optional), de-scrambler, decoder and transcoder in one case. It can convert AVS+ to H.264 or MPEG2, and trans-code between H.264 and MPEG-2 format, and also downscale HD video to SD video simultaneously. It is equipped with 2 tuner inputs to receive channels directly from satellite/coaxial-cable etc, and each tuner is accompanied with a CAM/CI slot to descramble the encrypt content. To meet customers’ various requirements, NDS3243 is also equipped with 1 ASI and 2 GE input port with 32 IP (UDP/RTP) input, and output video&audio (CVBS/YPbPr/HDMI/SDI) after decoding, and also output IP/ASI after transcoding. Key Features: Support 32*IP (UDP/RTP) input +2*tuners input with 2 CAM/CI slots+1 ASI input; Support 3*IP (UDP) output; 2 groups of ASI output; Support AVS+, MPEG-2, H.264 SD/HD decoding, CVBS/YPbPr/HDMI/SDI output HD/SD resolutions; Video Trans-coding: AVS+ SD/HD to MPEG-2 SD/HD and H.264 SD/HD;; Audio Trans-coding: any to any;; Support 1 SD or 1 HD programs trans-coding , and 1 channel audio trans-coding; Support CBR and VBR rate control; Support CC (closed caption) only for decoding
Full Specifications
| Stream In | 32 IP over UDP/RTP, 2*100/1000M Base-T Ethernet Interface |
| BISS Descramble | 1 program |
| Audio | any to any; AC3 pass through |
| Decoding | Video Output |
| Resolution | 480i，480p，576i，576p，720p@50，720p@60，1080i@50，1080i@60, 1080p@50, 1080p@60 |
| Rate Control | CBR/VBR |
| Audio Output | 1*Stereo /2*mono, HDMI，SDI |
| Audio Sampling | 48KHz |
| Audio Bit Rate | 64Kbps-384Kbps |
| Stream Out | 3*IP over UDP protocol, 2*100M/1000M Base-T Ethernet Interface, one for backup |
| System Function | LCD & Key board control; web-based NMS management |
| General | Dimensions |
| Approx weight | 4.8 Kg |
| Temperature range | 0~45℃(Operation), -20~80℃(Storage) |
| Power requirements | AC 200V-240V, 50/60Hz, 2A |
