NDS3248 8-in-1 Transcoder
NDS3248 8-in-1 Transcoder — professional IRD / Decoder / Transcoder from NDS DVB Factory, direct from manufacturer since 2009.
Key Specifications
- Version 4* ASI or Tuner Input

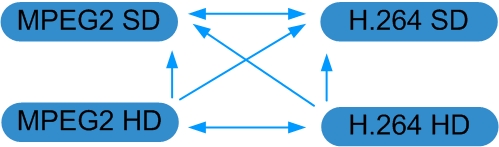

- Trans-coding 4*MPEG2 HD→4*MPEG2/H.264 HD ;4*MPEG2 HD→4*MPEG2/H.264 SD ;8 *MPEG2 SD→8 *MPEG2/H.264 SD
- Stream In MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/ SFP interface
- Bit Rate 64Kbps-384Kbps
- Stream Out 8*SPTS & 1*MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast) /SFP interface
- BISS Descramble Maximum 8 programs
- Rate Control CBR/VBR
- Audio Trans-coding
Overview

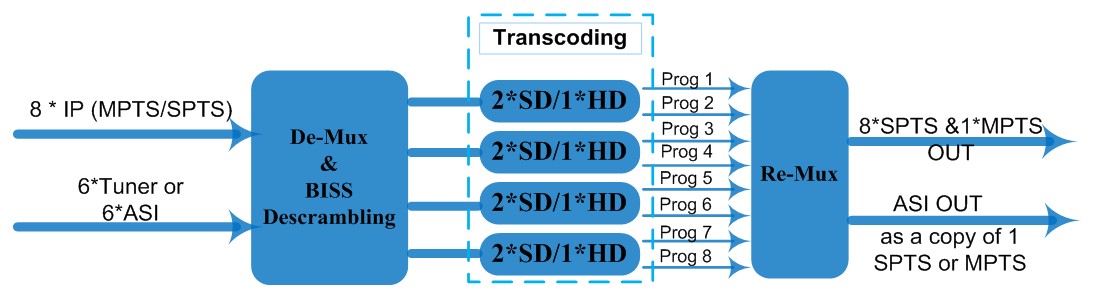

NDS3248 is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or ASI /IP inputs to receive digital channels. After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port. This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance. Key Features: Support 8*IP (SPTS/MPTS) input plus 6*tuners (or 6*ASI); Spport 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output; 1 ASI (MPTS) output; Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD; Audio Trans-coding: any-to-any or pass-through.; Support maximal 8 SD or 4 HD programs trans-coding; Support maximal 8 channel audio trans-coding; Support HD and SD resolutions; Support CBR and VBR rate control; Support CC (closed caption); Support BISS descrambling; Support IP out with null packet filtered; Advanced re-multiplexing Specifications: 1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface
Full Specifications
| Stream In | MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/ SFP interface |
| BISS Descramble | Maximum 8 programs |
| Trans-coding | 4*MPEG2 HD→4*MPEG2/H.264 HD ;4*MPEG2 HD→4*MPEG2/H.264 SD ;8 *MPEG2 SD→8 *MPEG2/H.264 SD |
| Rate Control | CBR/VBR |
| Audio | Trans-coding |
| Sampling rate | 48KHz |
| Bit Rate | 64Kbps-384Kbps |
| Stream Out | 8*SPTS & 1*MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast) /SFP interface |
| System Function | LCD & Key board control; web NMS management |
| General | Dimensions |
| Approx weight | 4.8 Kg |
| Temperature range | 0~45℃(Operation), -20~80℃(Storage) |
| Power requirements | AC 110V±10%, 50/60Hz or AC 220V±10%,50/60Hz |
| Power consumption | 20W |
| Version | 4* ASI or Tuner Input |
