NDS3304T IP DVB-(T) Modulator
2 IP (MPTS) output over UDP protocol. 2 IP output over UDP/RTP/RTSP, unicast/multicast, 100/1000M Ethernet Ports. Supports multiplexing with accurate PCR adjusting, PID remapping and PSI/SI editing.
Key Specifications
- ModulationParameters Output Channel
- TS output 2 IP output over UDP/RTP/RTSP, unicast/multicast, 100/1000M Ethernet Ports
- Transmission Rate Max 840Mbps for each input channel
- Max PIDs 256 per channel
- L1Post Constellations QPSK, 16QAM, 64QAM, 256QAM (Normal or Rotated)
- Output Level -15~+5 dBm, 0.1db stepping
- Transport Protocol TS over UDP/RTP, unicast and multicast, IGMP V2/V3
- Modulation Standard EN302 755
Overview

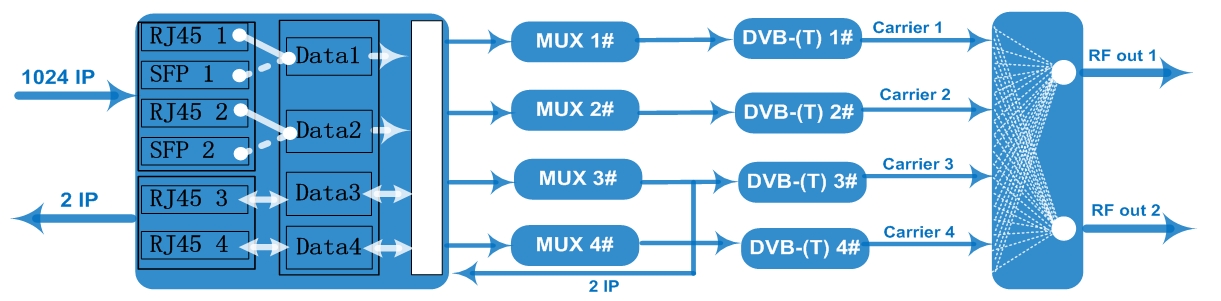

NDS3304T IP DVB-(T) modulator is a Multiplexing-modulating all-in-one device developed by DEXIN. It has 4 multiplexing channels and 4 DVB-(T) modulating channels, and supports maximum 1024 IP inputs through 4 data ports and 4 non-adjacent carriers output through 2 RF output interfaces. The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system. Key Features: 4*RJ45, 2*SFP, DATA1/2 and SFP1/2 for input, DATA 3/4 for output; 4 DVB-(T) non-adjacent carriers output, fully complying with EN302 755; Max 840Mbps and 1024 IP inputs for each GE input; Supports multiplexing with accurate PCR adjusting, PID remapping and PSI/SI editing; Supports up to 256 PID remapping per channel; 2 IP (MPTS) output over UDP protocol; Supports single PLP; Support MISO and SISO; Supports non-linear digital pre-distortion (DPD); Support PID bypass and pass-through; Support Web-based Network management; 6 GE ports: Specifications: 4*RJ45, 2*SFP, DATA1/2 and SFP1/2 for input, DATA 3/4 for output; Max 1024 IP input through data ports 1/2, 100/1000M Ethernet Ports (RJ45 1/2 and SFP interface 1/2 alternative)
Full Specifications
| Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
| Transmission Rate | Max 840Mbps for each input channel |
| Max PIDs | 256 per channel |
| Functions | PID remapping(auto/manually optional) |
| ModulationParameters | Output Channel |
| Modulation Standard | EN302 755 |
| Mode | Mode A: single-PLP; |
| L1Post Constellations | QPSK, 16QAM, 64QAM, 256QAM (Normal or Rotated) |
| FEC Length | Short(16K), Normal (64K) |
| FEC Rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
| Bandwidth | 5/6/7/8 MHz |
| Pilot Pattern | PP1 - PP8 |
| Guard Interval | 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4 |
| FFT Mode | 1k, 2k, 4k ,8k, 16k |
| RF Range | 50~960MHz, 1kHz stepping |
| Output Level | -15~+5 dBm, 0.1db stepping |
| MER | ≥ 43dB |
| Shoulder Level | >56dB |
| TS output | 2 IP output over UDP/RTP/RTSP, unicast/multicast, 100/1000M Ethernet Ports |
| System | Web-based Network management |
