NDS3306 IP to ISDB-T Modulator
Programs output through RF with multiplexing. 4* IP (MPTS/SPTS) input over UDP (Unitcast/Multicast) (1000M port based Ethernet). 1000M IP port, 4 IP streams input.
Key Specifications
- IP Output 4*IP output, one for one with the 4 IP input
- IP Input 4* IP (MPTS/SPTS) input over UDP (Unitcast/Multicast) (1000M port based Ethernet)
- Constellation DQPSK, QPSK, 16QAM, 64QAM
- Output 30~1000MHz, 1KHz step
- RF output level -30~ -10dbm (77~97 dbµV), 0.1db step
- FEC 1/2, 2/3, 3/4, 5/6, 7/8
- Power AC 110V±10%, 50/60Hz; or AC 220V±10%, 50/60Hz
- Guard Interval 1/32, 1/16, 1/8, 1/4.
Overview

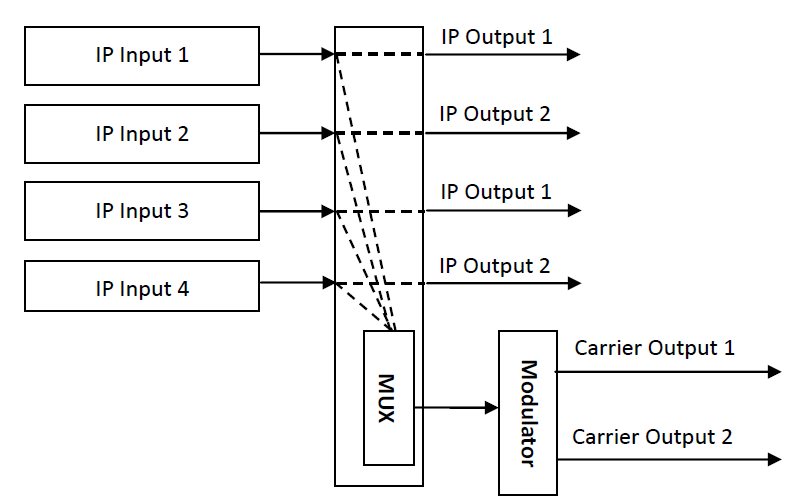

DEXIN NDS3306 IP to ISDB-T modulator is a high performance modulator developed according to ARIB STD-831 standard. It provides a more powerful receiving ability to simultaneously process 4 IP streams inputting from encoder, multiplexer, gateway and etc head-end. It outputs digital RF after multiplexing process. For management and operation, this device supports local and remote control through a web-based NMS system. Key Features: Complying with ARIB STD-831 standard; 1000M IP port, 4 IP streams input; Support 4 IP output; Programs output through RF with multiplexing; Dual adjacent carriers output; RF Output frequency range: 30MHz~1000MHz in 1 kHz step; Support PID remapping; LCD/keyboard and Web-based NMS operation; Complying with ARIB STD-831 standard; 1000M IP port, 4 IP streams input; Support 4 IP output; Programs output through RF with multiplexing Specifications: 4*IP output, one for one with the 4 IP input; 4* IP (MPTS/SPTS) input over UDP (Unitcast/Multicast) (1000M port based Ethernet); RF output level
Full Specifications
| IP Input | 4* IP (MPTS/SPTS) input over UDP (Unitcast/Multicast) (1000M port based Ethernet) |
| Constellation | DQPSK, QPSK, 16QAM, 64QAM |
| Guard Interval | 1/32, 1/16, 1/8, 1/4. |
| Transmission Mode | 2K, 4K, 8K |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| MER | ≥42dB |
| Output | 30~1000MHz, 1KHz step |
| RF output level | -30~ -10dbm (77~97 dbµV), 0.1db step |
| IP Output | 4*IP output, one for one with the 4 IP input |
| System | LCD/keyboard operating and Web-based NMS support |
| General | Dimension |
| Weight | 2.3kg |
| Temperature | 0~45℃(Operation); -20~80℃(Storage) |
| Power | AC 110V±10%, 50/60Hz; or AC 220V±10%, 50/60Hz |
| Consumption | 25W |
