NDS3306i 8in1/16in1 ISDBT Modulator
Max 512 (or 1024) IP input through 100/1000M Ethernet Port (SFP interface optional) over UDP/RTP, unicast and multicast, IGMP V2/V3, Max 840Mbps for each GE input. 8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast. Max…
Key Specifications
- Output Channel 8 (or 16) non-adjacent carriers output
- TS output 8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast100/1000M Ethernet Ports
- Max PIDs 256 per channel
- Constellation QPSK, 16QAM, 64QAM
- RF output level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
- RF frequency 50~960MHz, 1KHz step
- Functions PID remapping (auto/manually optional)
- Power Supply AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
Overview

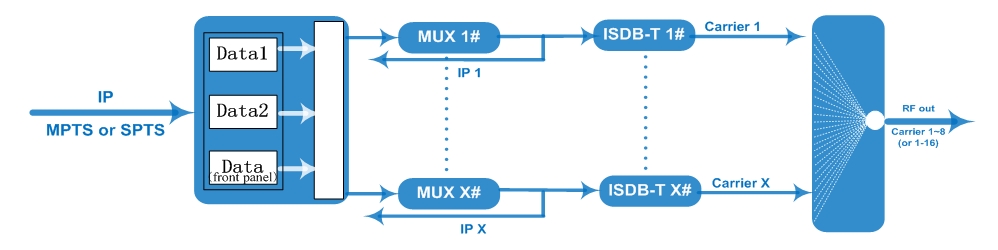

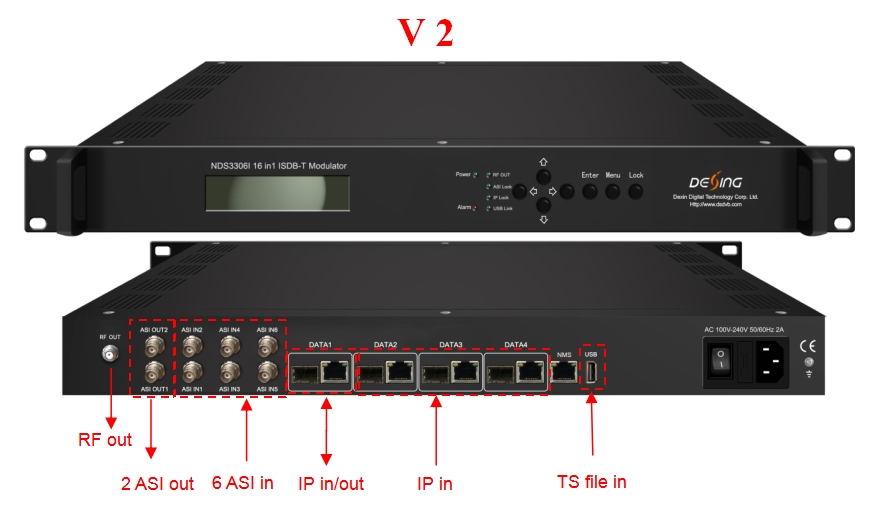

NDS3306I ISDB-T modulator is the latest generational Mux-modulating device developed by DEXIN. It converts IP streams to 8 (or 16) ISDB-T non-adjacent carriers output through the RF interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system. Key Features: Max 840Mbps for each GE input; Supports accurate PCR adjusting; Supports CA filtering, PID remapping and PSI/SI editing; Supports up to 256 PIDS remapping per channel; 8 (or 16) non-adjacent carriers output, compliant to ISDB-Tb (ARIB STD-B31); Support Web-based Network management; Supports accurate PCR adjusting; Supports up to 256 PIDS remapping per channel; Support Web-based Network management; for V2 only Specifications: Max 512 (or 1024) IP input through 100/1000M Ethernet Port (SFP interface optional) over UDP/RTP, unicast and multicast, IGMP V2/V3, Max 840Mbps for each GE input; 6 ASI input, BNC interface; TS file input through USB disk - for V2 only; RF output level; 8 (or 16) non-adjacent carriers output; 8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast; 2 ASI output, one as mirror - for V2 only
Full Specifications
| Output Channel | 8(or 16) |
| Max PIDs | 256 per channel |
| Functions | PID remapping (auto/manually optional) |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Transmission Mode | 2K, 4K, 8K |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| MER | ≥40dB |
| RF frequency | 50~960MHz, 1KHz step |
| RF output level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
| Output Channel | 8 (or 16) non-adjacent carriers output |
| ACLR | -50 dBc |
| TS output | 8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast100/1000M Ethernet Ports |

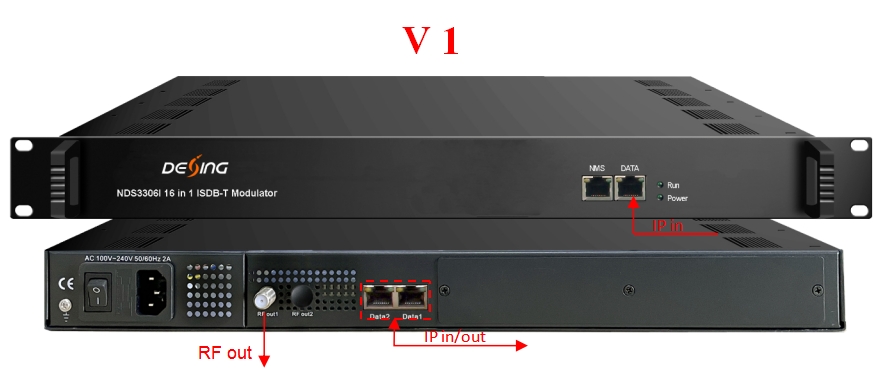

| System | Web-based NMS management;LCD+Keyboard management - for V2 only |
| General | Demission |
| Weight | 5.5kg |
| Temperature | 0~45℃(operation), -20~80℃ (storage) |
| Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| 8ch model | 16ch model |
