NDS3332 32 in 1 IP QAM Modulator (with 1 RF out)

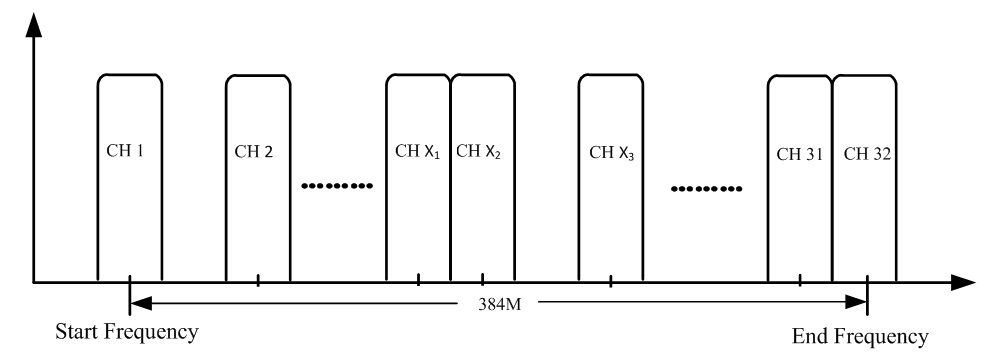

32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B. 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports. Max 1024 IP input through 3 (front-panel Data…
Key Specifications
- QAM Channel 32 non-adjacent carrier
- TS output 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports
- Max PIDs 256 per channel
- J.83B Constellation : 64QAM/ 256QAM
- Constellation 16, 32, 64 , 128, 256QAM
- Output Level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
- Transport Protocol TS over UDP/RTP, unicast and multicast, IGMP V2/V3
- Transmission Rate Max 840Mbps for each GE input
Overview

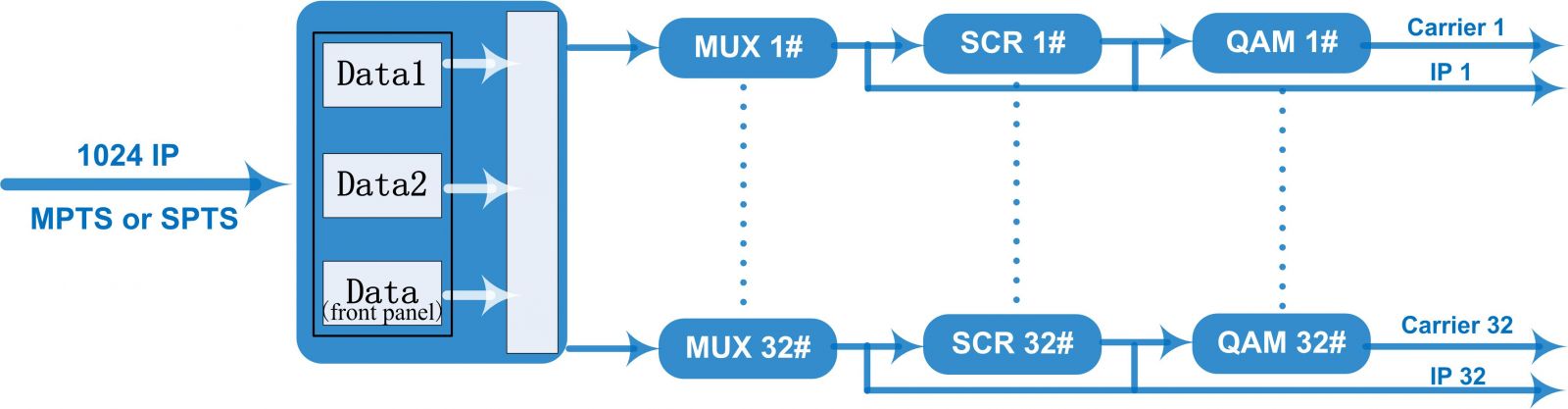

NDS3332 32 in 1 IP QAM modulator is DEXIN Mux-scrambling-modulating all-in-one device. It supports maximum 1024 IP input through the 3 GE ports and 32 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system. Key Features: 3 GE ports (max 1024 IP in):; Data1 & Data2 bi-directional ports, max 512 IP in, 32 IP out; Data port (located on front panel), max 128 IP in; Max 840Mbps for each GE input; Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing; Supports up to 256 PIDS remapping per channel; Support 32 IP output through Data1 & Data2 over UDP/RTP/RTSP; 32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B; Supports RS (204,188) encoding; Support Web-based Network management; 3 GE ports (max 1024 IP in):
Full Specifications
| Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
| Transmission Rate | Max 840Mbps for each GE input |
| Max PIDs | 256 per channel |
| Functions | PID remapping(auto/manually optional) |
| ScramblingParameters | Max simulscrypt CA |
| Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 |
| Connection | Local/remote connection |
| ModulationParameters | DVB-C Modulator Section |
| J.83B | Constellation : 64QAM/ 256QAM |
| QAM Channel | 32 non-adjacent carrier |
| Modulation Standard | EN300 429/ITU-T J.83A/B(DVB-C) |
| Symbol Rate | 5.0~7.0Msps, 1ksps stepping |
| Constellation | 16, 32, 64 , 128, 256QAM |
| FEC | RS (204, 188) |
| RF Range | 50~960MHz, 1kHz stepping |
| Output Level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
| MER | ≥ 40dB |
| TS output | 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports |
| System | Network management software (NMS) supporting |
| General | Demission |
