NDS3348T (V2) 4 in 1 DVB-T Modulator
DVB-S/S2/S2X tuner inputs (Supporting PLS/Multi-Stream) or DVB-T/-C/ISDB-T multi-mode switchable tuner inputs, 2 types of tuner inputs for order option. 4 Tuner in the chassis + 4 Tuner with CAM in the pluggable module,…
Key Specifications
- Max input bitrate ≤129 Mbps
- Multiplexing Maximum PID Remapping
- Constellation QPSK, 8PSK, 8APSK, 16APSK, 32APSK
- Bandwidth 6/7/8 M
- Symbol rate QPSK/8PSK /16APSK :0.5~45 Msps8APSK/32APSK: 0.5~40Msps
- Signal Strength - 65- -25dBm
- FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10
- Descrambling CAM/CI
Overview

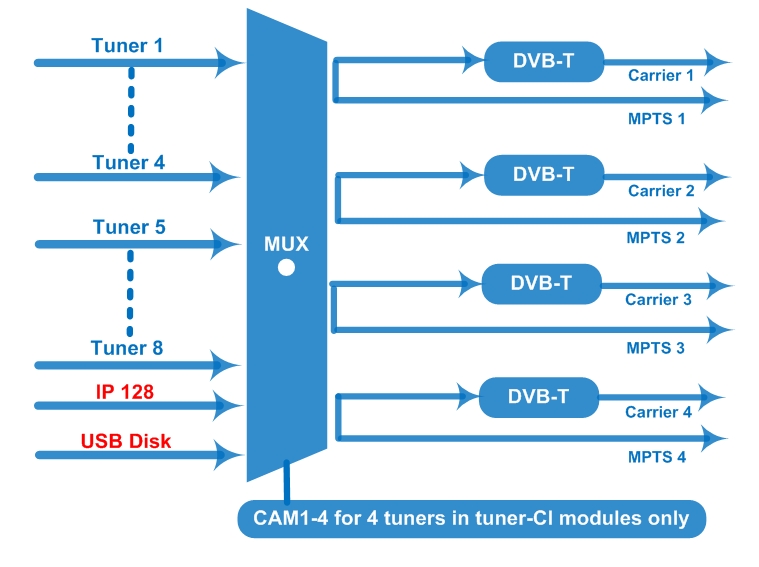

NDS3348T (V2) is a high-performance and cost-effective DVB-T modulator designed by Dexin. It has 8 tuner inputs, after multiplexing and modulating process, then it gives 4 DVB-T non-adjacent carriers output. To meet customers’ various requirements, this device is also equipped with 128 IP inputs and 4 MPTS outputs over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, it has 4 CAM/CI slots to descramble the programs from the 4 tuner inputs in the 2 CI-Tuner Modules. Key Features: DVB-S/S2/S2X tuner inputs (Supporting PLS/Multi-Stream) or DVB-T/-C/ISDB-T multi-mode switchable tuner inputs, 2 types of tuner inputs for order option; Pluggable Demodulation Module (4*RF in/Loop out + 4*CAM Slots); One CAM can decrypt multiple programs from the corresponding tuner input in the same one Tuner-CI module, and the 4 tuner inputs in the chassis are used for FTA signals only; maximum 128 IP input (MPTS/SPTS) over UDP and RTP protocol; A TS playing and broadcasting via an USB Disk (FAT 32, USB 2.0); 4 groups multiplexing + 4 groups DVB-T modulation+4 MPTS out over UDP and RTP protocol; Support BISS descrambling
Full Specifications
| Standard | J.83A, J.83C |
| Constellation | 16/32/64/128/256 QAM |
| Bandwidth | 6/7/8 M |
| Satellite | DVB-S |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤129Mbps |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps32APSK: 0.5~40Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Max input bitrate | ≤129 Mbps |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps8APSK/32APSK: 0.5~40Msps |
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| Max input bitrate | ≤129 Mbps |
| Descrambling | CAM/CI |
| BISS Descrambling | Mode 1, Mode E (descramble individual program) |
| Multiplexing | Maximum PID Remapping |
| Function | A/V PID filtering |
