NDS3394C 16in1 24in1 Mux-scrambling QAM Modulator(V3）
24 (or 16) FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T multi-mode switchable Tuner inputs with loop out + 2 ASI inputs+128 IP inputs thru DATA 1 over UDP and RTP protocol, and TS files input by playing via an USB disk (FAT 32, USB…
Key Specifications
- Max input bitrate ≤129 Mbps
- Input 24 or 16 FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T multi-mode switchable tuner inputs as per order
- DVB-S2 Frequency In
- Constellation QPSK, 8PSK, 8APSK, 16APSK, 32APSK
- DVB-S2X Frequency In
- Frequency In 50~960MHz
- DVB-T/T2 Frequency In
- Tuner option 1 DVB-S
Overview

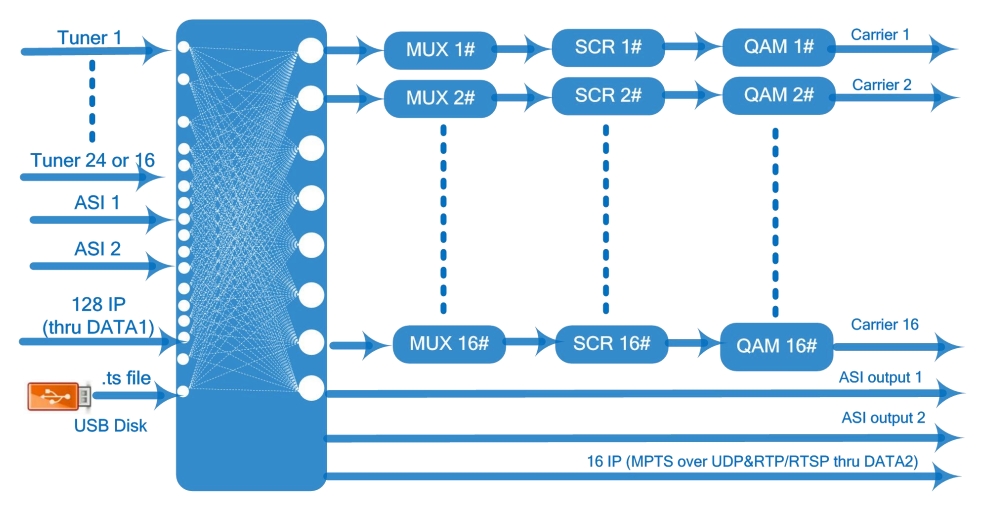

NDS3394C v3 is a high performance and cost-effective QAM modulator designed by Dexin. It supports 24 or 16 FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T multi-mode switchable tuner input, maximum 128 IP inputs through DATA1 and 2 TS inputs for re-mux through 2 ASI input ports. After demodulating, multiplexing and QAM modulating, it outputs 16 non-adjacent carriers and 16 IP (MPTS) through DATA2. Two kinds of software for order option, BISS descrambling version (without scrambler feature) or Scrambler version (wtihout BISS descrambling feature). NDS3394C v3 is also characterized with high integrated level, high performance and low cost. This is very adaptable to a new generation CATV broadcasting system. Key Features: 24 (or 16) FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T multi-mode switchable Tuner; inputs with loop out + 2 ASI inputs+128 IP inputs thru DATA 1 over UDP and RTP protocol,; and TS files input by playing via an USB disk (FAT 32, USB 2.0); BISS descrambling, max 64 BISS Keys per output channel (optional); 16 DVB-C non-adjacent carriers output, within 192MHz bandwidth; 16 IP (MPTS) outputs over UDP and RTP/RTSP, as mirror of the carriers
Full Specifications
| Input | 24 or 16 FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T multi-mode switchable tuner inputs as per order |
| Tuner option 1 | DVB-S |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65~-25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤129 Mbps |
| DVB-S2 | Frequency In |
| Symbol rate | QPSK/8PSK /16APSK: 0.5~45 Msps32APSK: 0.5~40Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Max input bitrate | ≤129 Mbps |
| DVB-S2X | Frequency In |
| Symbol rate | QPSK/8PSK /16APSK: 0.5~45 Msps8APSK/32APSK: 0.5~40Msps |
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| Max input bitrate | ≤129 Mbps |
| Tuner option 2 | DVB-C |
| Frequency In | 50~960MHz |
| Constellation | 16/32/64/128/256 QAM |
| DVB-T/T2 | Frequency In |
