NDS3394T 16in1 24in1 Tuner to DVB-T modulator(V3)

Overview

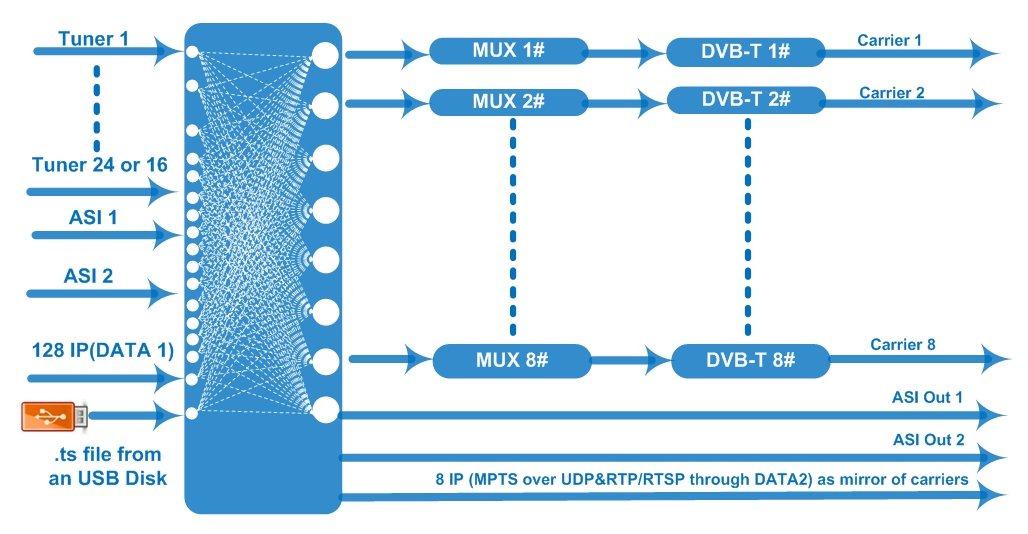

NDS3394T V3 is a high performance and cost-effective DVB-T modulator designed by Dexin. It supports 24 or 16 FTA tuners input, maximum 128 IP inputs through DATA1 and 2 TS inputs for re-mux through 2 ASI input ports. After demodulating, multiplexing and DVB-T modulating, it outputs 8 non-adjacent carriers and 8 IP (MPTS) as mirror of carriers through DATA2. NDS3394T is also characterized with high integrated level, high performance and low cost. This is very adaptable to a new generation broadcasting system. Key Features: 24 (or 16) FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T Multi-Mode switchable tuner; inputs with loop out + 2 ASI inputs+128 IP inputs thru DATA 1 over UDP and RTP protocol,; and TS files input by playing ts via an USB disk (FAT 32, USB 2.0); 8 DVB-T non-adjacent carriers output, within 192MHz bandwidth; 8 IP (MPTS) outputs over UDP and RTP/RTSP thru DATA 2, as mirror of the carriers; 2 TS outputs thru ASI out 1 and ASI out 2, as mirror of the 2 chosen carriers; Support 8 groups multiplexing+8 groups DVB-T modulating; Excellent RF output performance index, MER≥40db; Support accurate PCR adjusting; Support PSI/SI editing and inserting

Full Specifications
