NDS33XX-N Series IP Modulator
RF output (F type): 16/32 channels of multiplexing, scrambling and modulation. RF output (F type): 8/16 channels of multiplexing and modulation.. RF output: 2 F type output ports for 32/48 non-adjacent carriers, 75Ω.
Key Specifications
Contact us for detailed technical specifications and datasheet.
Overview

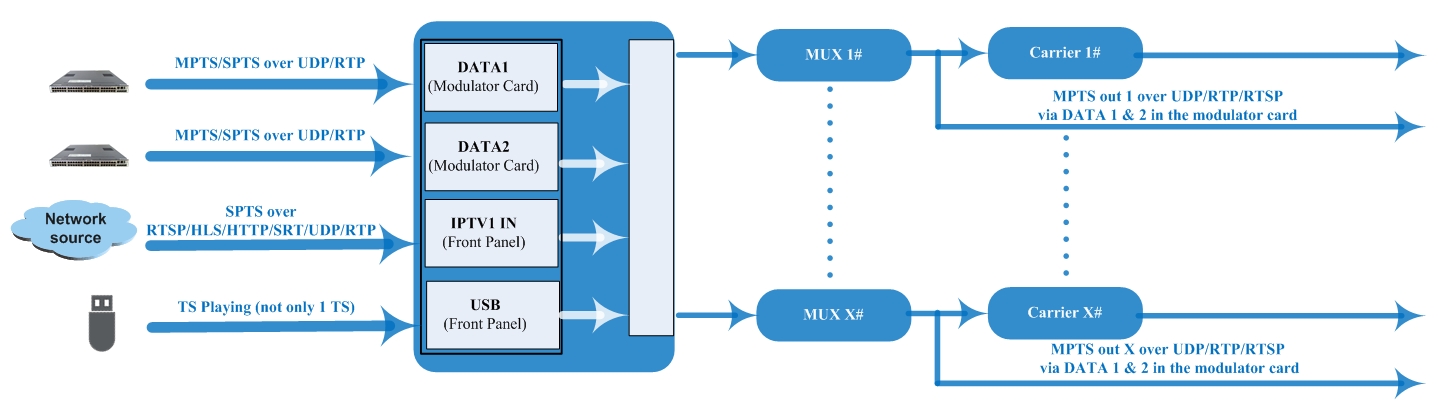

NDS33XX-N Series support multi-protocol IP inputs over UDP/RTP/RTSP/HLS/HTTP/SRT. It is flexible to choose different modulator cards to support different modulation output, such as DVB-C, DVB-T, ATSC and ISDB-T. NDS33XX-N Series bring a new level of intelligence and high performance to the CATV system at a cost-effective price offer. NDS3332D-N: Carrier 1~16 out thru RF1, 17~32 thru RF2, each RF supports 384M bandwidth Key Features: Support multi-protocol IP inputs over UDP/RTP/RTSP/HLS/HTTP/SRT; * SPTS input over UDP/RTP/RTSP/HLS/HTTP/SRT via the IPTV1 IN port in the front panel; * MPTS/SPTS input over UDP and RTP via the 2 DATA ports in the modulator board; Support multi-type order options for modulator cards, DVB-C, DVB-T, ATSC and ISDB-T; Support about 100Mbps-300Mbps data processing (IPTV1IN port in the front panel, up to the; actual protocols etc) and max 840Mbps data processing(2 DATA ports in the modulator card); Support MPTS output over UDP/RTP via 2 DATA ports in the modulator card as mirror of; IPTV1 IN port in the front panel is an unidirectional IP-input port; 2 DATA ports in the; modulator card are the bidirectional IP-input/output ports.
