NDS3402E DVB-S2 Modulator

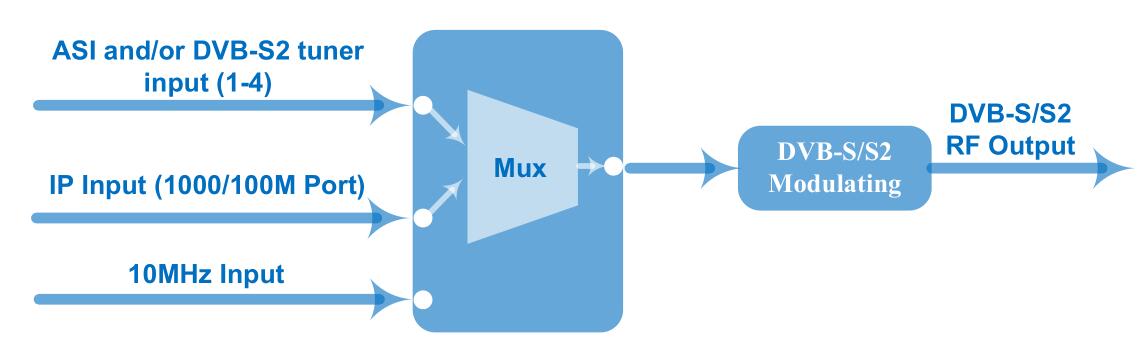

1 IP (100/1000M) input, ASI and/or DVB-S2 tuner inputs for re-mux or pass through. 1*IP Input (RJ45, 1000/100M TS Over UDP). ASI and/or DVB-S2 inputs for re-mux or pass through (4 ports for ASI and S2.
Key Specifications
- Max input bitrate ≤160 Mbps
- ASI Input Supporting both188/204 Byte Packet TS Input
- 10MHz Reference Clock 1*External 10MHz Input (BNC Interface); 1*Inner 10MHz Reference clock
- IP Input 1*IP Input (RJ45, 1000/100M TS Over UDP)
- RF Output RF Range: 950 ~ 2150 MHz, 10KHz stepping
- Multiplexing Maximum PID Remapping
- Constellation QPSK/8PSK/8APSK/16APSK/32APSK
- Symbol rate QPSK/8PSK /16APSK :0.5~45 Msps8APSK/32APSK: 0.5~40Msps
Overview

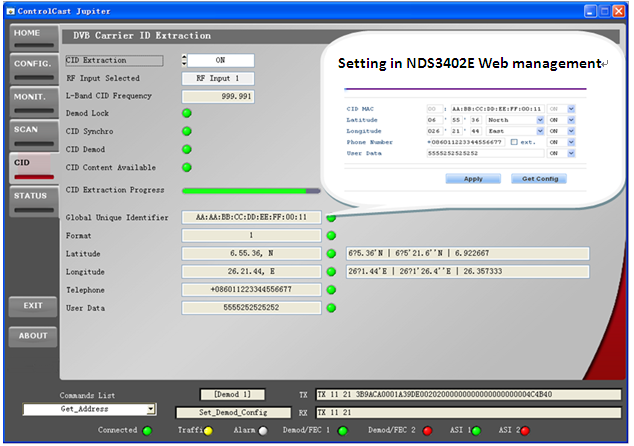

DEXIN NDS3402E is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input satellite signal and/or ASI and IP streams into digital DVB-S/S2 RF output. BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with Web-server NMS software and LCD in the front panel. Key Features: Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard; ASI and/or DVB-S2 inputs for re-mux or pass through (4 ports for ASI and S2; tuner input combination); Support IP (1000/100M) signal input for re-mux or pass through; Support Multiplexing and PSI/SI edit; QPSK, 8PSK, 16APSK, 32APSK Constellations; Support RF CID setting (Optional as per order); Constant temperature crystal oscillator, as high as 0.1ppm stability; Support coupling 10Mhz clock output through RF output port; Support 24V power output through RF output port; Support BISS scrambling; Support SFN TS transmission Specifications: 1*External 10MHz Input (BNC Interface)
Full Specifications
| IP Input | 1*IP Input (RJ45, 1000/100M TS Over UDP) |
| ASI Input | Supporting both188/204 Byte Packet TS Input |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤160 Mbps |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps32APSK: 0.5~40Msps |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Max input bitrate | ≤160 Mbps |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps8APSK/32APSK: 0.5~40Msps |
| Constellation | QPSK/8PSK/8APSK/16APSK/32APSK |
| Max input bitrate | ≤160 Mbps |
| Multiplexing | Maximum PID Remapping |
| Function | PID remapping (automatically or manually) |
| 10MHz Reference Clock | 1*External 10MHz Input (BNC Interface); 1*Inner 10MHz Reference clock |
| RF Output | RF Range: 950 ~ 2150 MHz, 10KHz stepping |
| Outer coding | RS Coding |
| Inner coding | Convolution |
