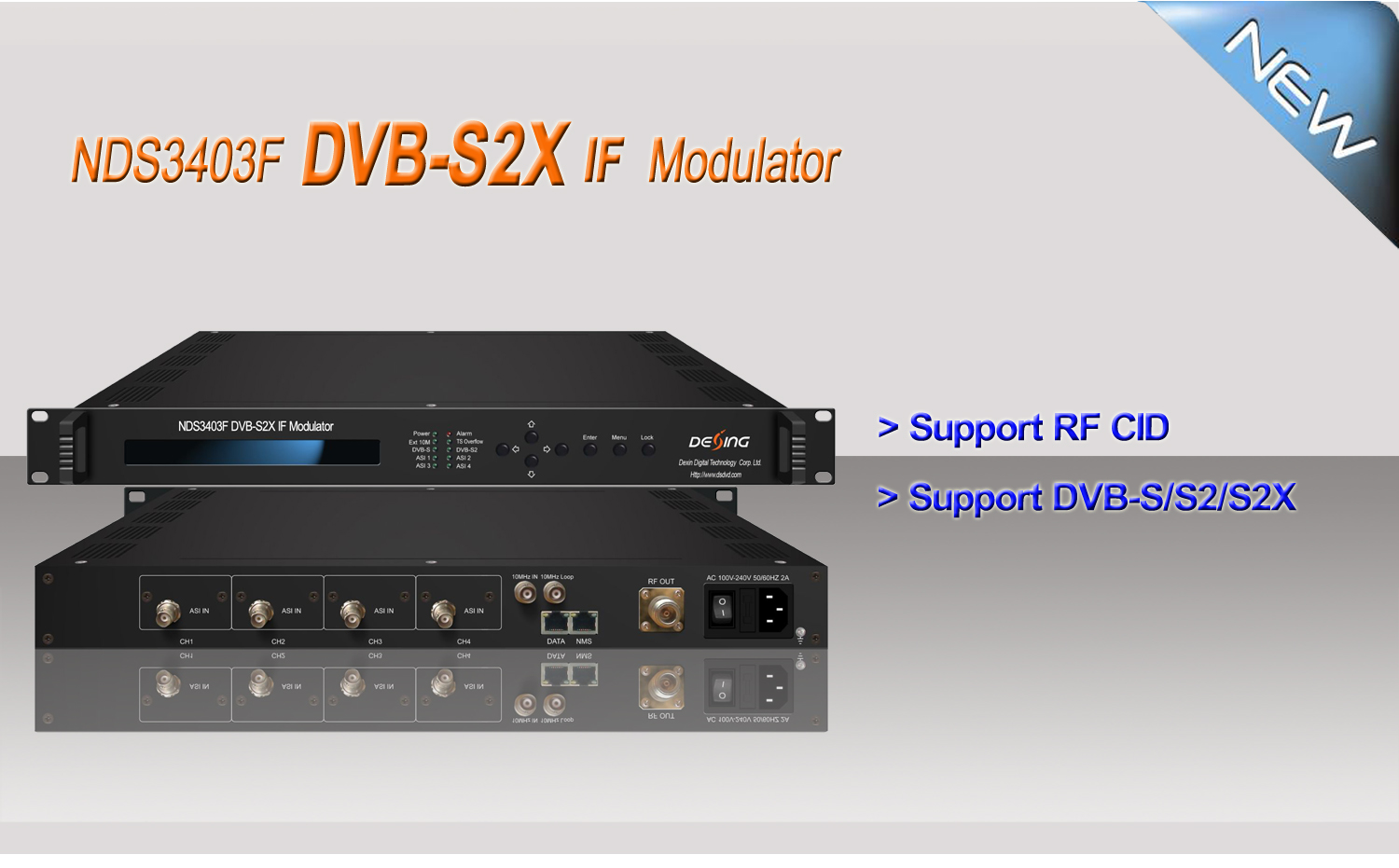

NDS3403F DVB-S2X IF Modulator
Modulator / Modem

NDS3403F DVB-S2X IF Modulator

1*IP Input (RJ45, 100M TS Over UDP). 4 ASI inputs supporting backup (3 for backup). Support IP (100M) signal input.

Key Specifications

  • 10MHz Input 1*10MHz Input (BNC Interface)
  • ASI Input Supporting both188 Byte Packet TS Input
  • IP Input 1*IP Input (RJ45, 100M TS Over UDP)
  • IF Output Range:50 ~ 960 MHz,1KHz step
  • FEC/ Convolution Rate 1/2, 2/3, 3/4, 5/6, 7/8
  • Symbol Rate 0.05~45Msps
  • BISS Scramble Mode 1, Mode E
  • Power 100-240VAC±10%,50Hz-60Hz
Request Quote WhatsApp

Overview

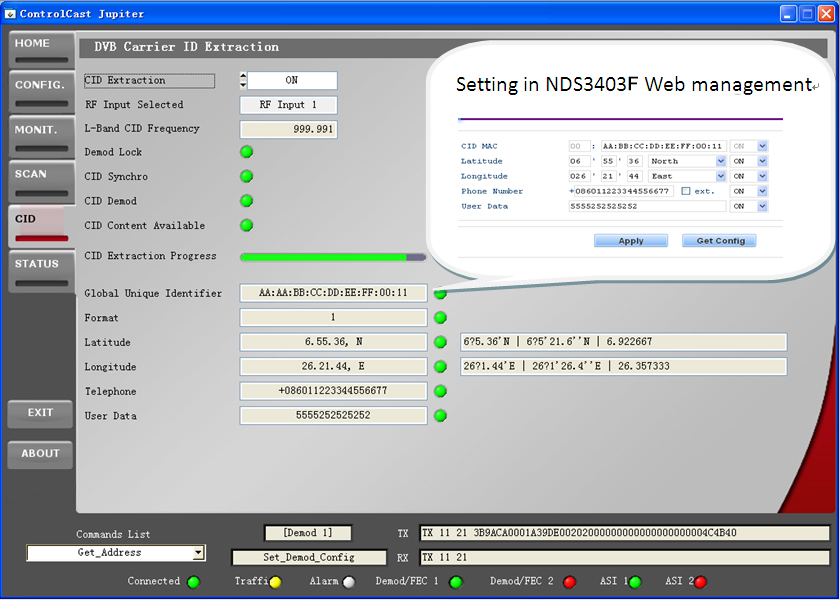

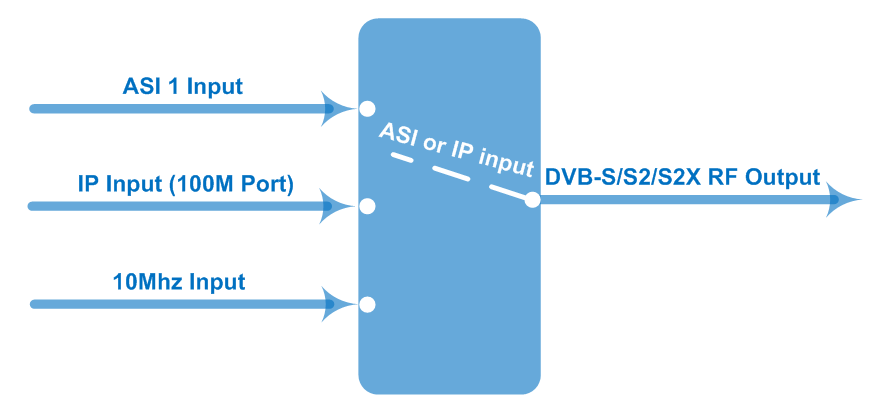

DEXIN NDS3403F is a high-performance modulator developed according to DVB-S2X (EN302 307-2) standard which is the standard of third generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2/S2X IF output. BISS scrambling mode is inserted to this DVB-S2X modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel. Key Features:  Fully complying with DVB-S (EN300 421), DVB-S2 (EN302 307) and DVB-S2X (EN 302;  4 ASI inputs supporting backup (3 for backup);  Support IP (100M) signal input;  QPSK, 8PSK, 8APSK, 16APSK, 32APSK Constellations;  Support RF CID setting (Optional as per order);  Constant temperature crystal oscillator, as high as 0.1ppm stability;  Support coupling 10Mhz clock output through RF output port;  Support BISS scrambling;  Support local and remote control with Web-server NMS;  Output frequency range: 50~960MHz, 1KHz step; Fully complying with DVB-S (EN300 421), DVB-S2 (EN302 307-1) and DVB-S2X (EN 302 307-2) standard

Full Specifications

ASI Input Supporting both188 Byte Packet TS Input
IP Input 1*IP Input (RJ45, 100M TS Over UDP)
10MHz Input 1*10MHz Input (BNC Interface)
IF Output Range:50 ~ 960 MHz,1KHz step
Outer coding RS Coding
Inner coding Convolution
Constellation QPSK
FEC/ Convolution Rate 1/2, 2/3, 3/4, 5/6, 7/8
Roll-off Factor 0.2,0.25,0.35
Symbol Rate 0.05~45Msps
BISS Scramble Mode 1, Mode E
System Web-server NMS
Temperature 0~45℃(operation), -20~80℃ (storage)
Power 100-240VAC±10%,50Hz-60Hz
