NDS3506 IP De-Multiplexer

Overview

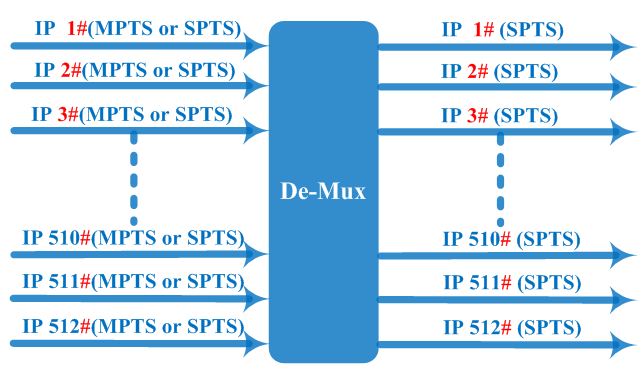

NDS3506 IP De-Multiplexer is a head-end IP TS conversion device. One device supports maximum 3 cards with each card working independently. One card has 3 GE ports supporting max 512 SPTS or MPTS inputs which will be converted to 512 SPTS output. It supports CA Filter function when multiplexing function is working. It can filter or keep CAS data from source. Key Features:  Modular design, 1U chassis support up to 3 cards;  1 GE input RJ45 port and 1 GE output RJ45 port, maximum bit-rate of each port is 850Mbps;  512 SPTS or MPTS input over UDP, RTP, Unicast and Multicast (per card);  512 SPTS output over UDP, RTP, Unicast and Multicast (per card);  Support accurate PCR adjusting;  Support PID filtering, re-mapping;  Support PSI/SI rebuilding and editing;  Support Web operation Specifications: 512 SPTS or MPTS input over UDP, RTP, Unicast and Multicast (per card); 512 SPTS output over UDP, RTP, Unicast and Multicast (per card); 512 SPTS or MPTS IP input over UDP, RTP, Unicast and Multicast (per card); 512 SPTS IP output UDP, RTP, Unicast and Multicast (per card)

Full Specifications
