NDS3508A ASI to IP Gateway
IP Gateway

NDS3508A ASI to IP Gateway

1 GE output, maximum output bit-rate is 800Mbps (for 32/20 SPTS output) or 400Mbps ( for 256 SPTS output). IP null packet filter(only for 32/20 SPTS output). 1 GE output, UDP, RTP/RTSP protocol, unicast and Multicast.

Key Specifications

  • Output 1 GE output, UDP, RTP/RTSP protocol, unicast and Multicast256 SPTS output — Without BISS function and IP null packet filter32 SPTS output — Without BISS function20 SPTS output — With BISS function
  • Input 8 ASI input                                         ­
  • Transmission Bit-rate Maximum total bit-rate is 400Mbps—256 SPTS output
  • BISS descrambling Mode 1, Mode E
  • Power supply 100~240VAC，50/60Hz
  • General Dimension(WxLxH)
  • Weight 3.6kg
  • Temperature 0~45℃(working )，-20~80℃(storage)
Request Quote WhatsApp

Overview

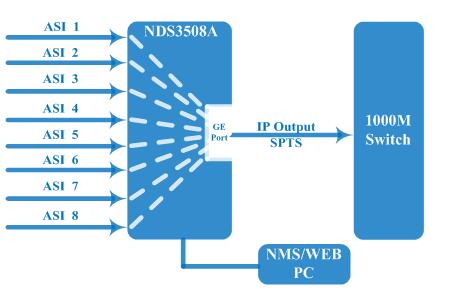

NDS3508A ASI to IP Gateway is a head-end interface conversion device. It supports convert 8 ASI input to 256*SPTS, 32*SPTS or 20*SPTS (with Biss function) output. After multiplexing the TS, then packet the TS into IP package and output the IP package through different IP address and ports. It supports IP output (UDP, RTP/RTSP protocol). Maximum total bit-rate is 400Mbps—256 SPTS output Key Features: Supports IP to ASI one-way conversion; Support 8 channels ASI input; Support BISS descrambling (Up to 120Mbps); 1 GE output, maximum output bit-rate is 800Mbps (for 32/20 SPTS output) or 400Mbps ( for 256 SPTS output); IP null packet filter(only for 32/20 SPTS output); SPTSx256, SPTSx32 or SPTSx20 (For version with BISS function) over UDP, RTP/RTSP, unicast and multicast; Support LCD display and keyboard; Support SNMP/Web operation Specifications: 1 GE output, UDP, RTP/RTSP protocol, unicast and Multicast; 8 ASI input                                         ­; 256 SPTS output — Without BISS function and IP null packet filter; 32 SPTS output — Without BISS function; 20 SPTS output — With BISS function

Full Specifications

Input 8 ASI input                                         ­
Output 1 GE output, UDP, RTP/RTSP protocol, unicast and Multicast256 SPTS output — Without BISS function and IP null packet filter32 SPTS output — Without BISS function20 SPTS output — With BISS function
BISS descrambling Mode 1, Mode E
Transmission Bit-rate Maximum total bit-rate is 400Mbps—256 SPTS output
General Dimension(WxLxH)
Weight 3.6kg
Temperature 0~45℃(working )，-20~80℃(storage)
Power supply 100~240VAC，50/60Hz
consumption 20W
