NDS3508B 24in1 Tuner to IP Gateway(V3)

Overview

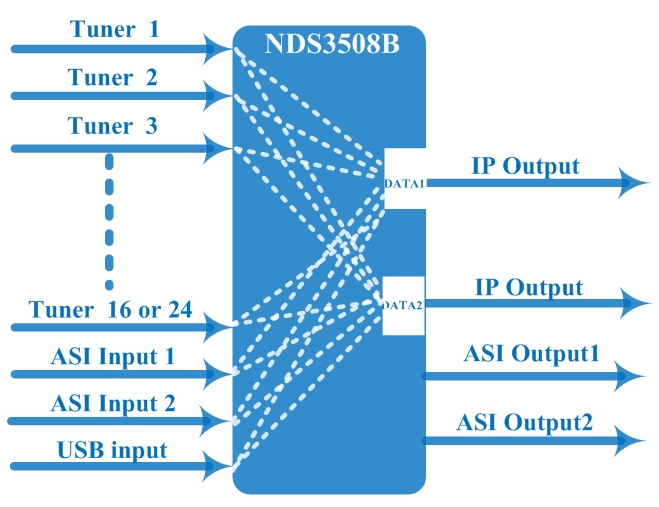

NDS3508B Tuner to IP Gateway is a head-end interface-conversion device which supports MPTS(Bypass) output and SPTS output switchable in Web GUI. It supports 24 MPTS output(24 FTA tuner inputs)+3 MPTS output(2 ASI inputs and 1 USB input) or 1024 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 24 FTA tuners into IP package, or directly convert the TS from ASI inputs or USB input into IP package, then output the IP package through different IP address and ports. BISS function is also embedded to descramble the programs from tuner inputs. l 2 DATA output ports (IP address and port number of DATA1 and DATA2 are different), up to 900Mbps---SPTS Key Features: DVB-C/T/T2/ISDB-T; Switchable tuner inputs, 2 ASI inputs, 1USB input(TS file Playing, FTA 32, USB 2.0); Support BISS descrambling for tuner inputs; Support DisEqc function; 24 MPTS output+3 MPTS output(2 ASI inputs and 1 USB port) or 1024 SPTS output; (MPTS and SPTS output switchable in Web GUI); 2 DATA output ports (IP address and port number of DATA1 and DATA2 are; different), up to 900Mbps---SPTS

Full Specifications
