NDS3508F-M IPTV Gateway
IP input thru CH 1-7(1000M) over SRT, HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS. IP out thru Data port (1000M) over SRT,HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264…
Key Specifications
- IP output IP out thru Data port (1000M) over SRT,HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding)
- Input IP input thru CH 1-7(1000M) over SRT, HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
- Protocol conversion Programs
- Power Supply AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
- System Memory:
- General Demission
- Hardware Memory
- Solid-State Disk(SSD) 120G SSD
Overview

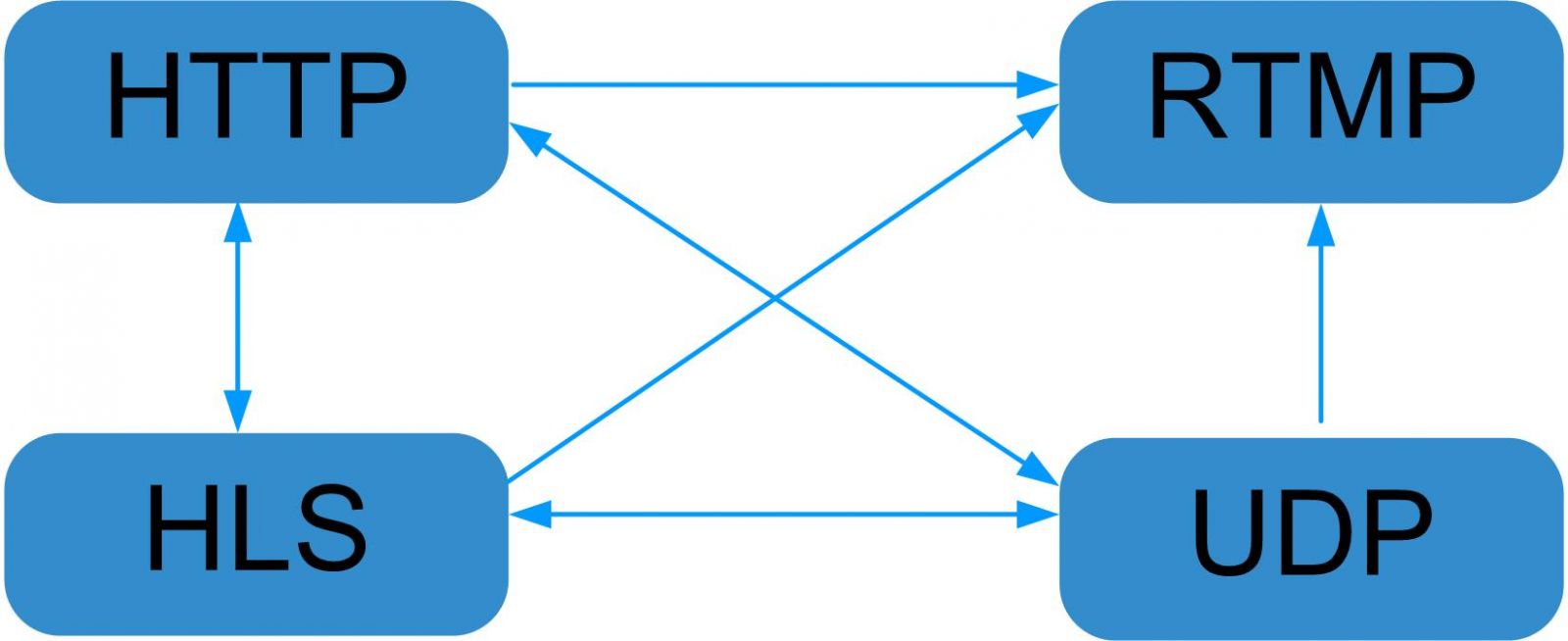

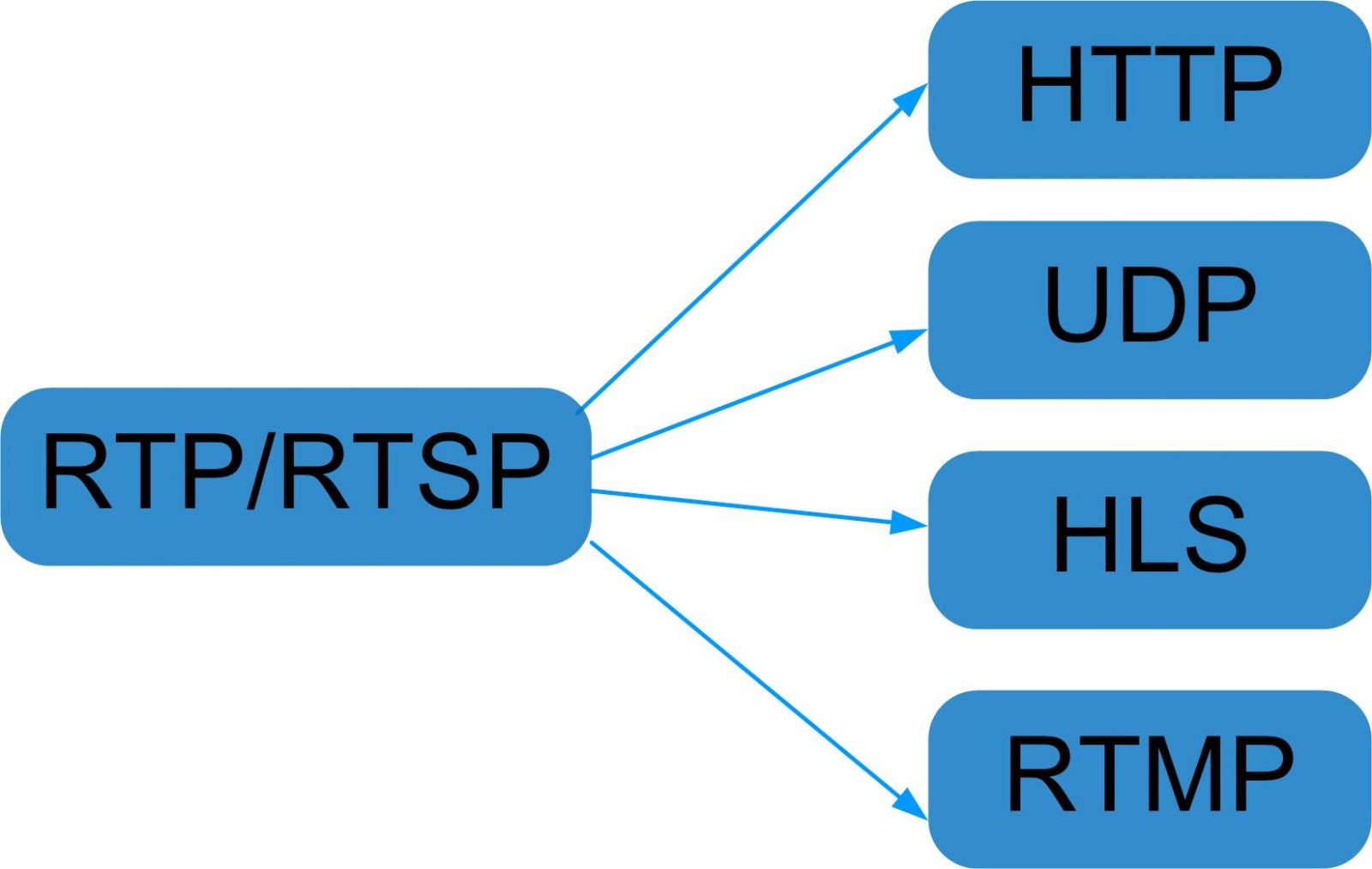

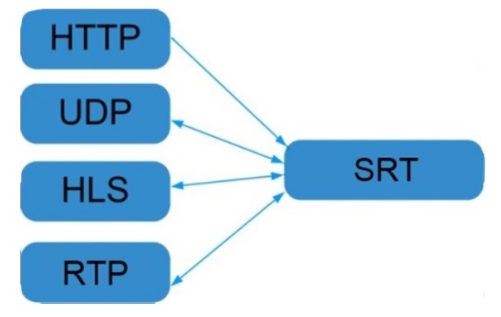

DexinNDS3508F-M IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over SRT,HTTP,UDP, RTP, RTSP and HLS and TS file into SRT,HTTP,UDP, HLS and RTMP protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly. Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK) Key Features: First Data port: IP out over SRT, HTTP, UDP (SPTS), HLS and RTMP; Data CH1-7 ports: IP in over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS; IP out over SRT, HTTP, HLS and RTMP (Unicast); Support TS files uploading through Web management; Support IP anti-jitter function; Support adding scrolling caption, welcome words, boot image and boot video (this function is; only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK); Support downloading Dexin IPTV APK directly from this device
Full Specifications
| Input | IP input thru CH 1-7(1000M) over SRT, HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
| IP output | IP out thru Data port (1000M) over SRT,HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding) |
| System | Memory: |
| General | Demission |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
| Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| Protocol conversion | Programs |
| Hardware | Memory |
| Solid-State Disk(SSD) | 120G SSD |
| Middleware | live+IPTV |
| User Number | 120 |
