NDS3508S(NDS3508I) IPTV Gateway Server
DATA CH 1-7 (1000M) ports: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP (over UDP, payload: mpeg TS) and HLS. First Data port (1000M): IP out over SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program source…
Key Specifications
- IP output First Data port (1000M): IP out over SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
- IP Input DATA CH 1-7 (1000M) ports: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
- IPTV system main interface support adding scrolling caption, welcome words, pictures, advertisement, video, music (Please install Dexin IPTV APK)
- System Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s)
- IPTV system function support Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction and so on (Please install Dexin IPTV APK)
- ProtocolConversion Programs
- Power Supply AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
- General Demission
Overview

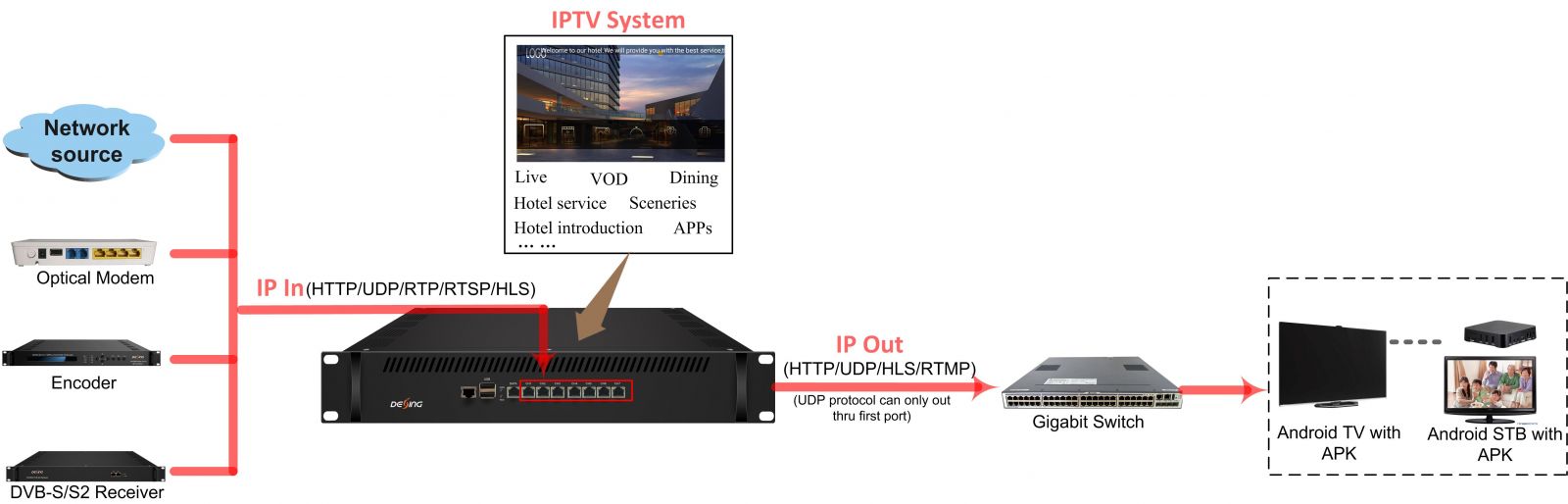

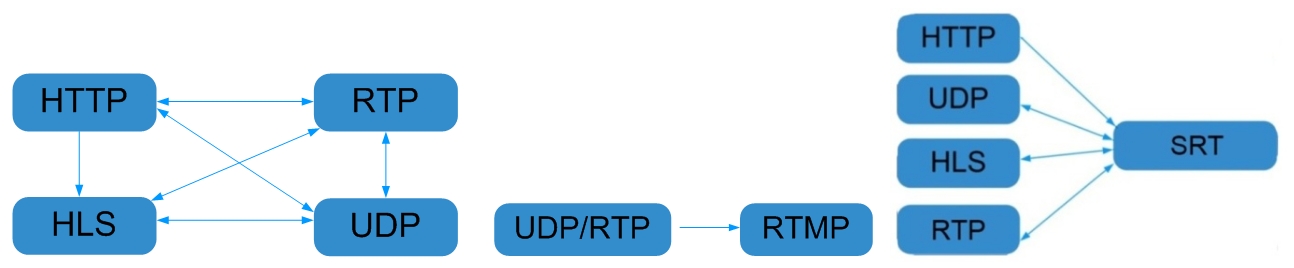

Dexin NDS3508S/NDS3508I series IPTV Gateway Server is the newest device which combined with IP Gateway and IPTV server in one unit. It is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over SRT, HTTP, UDP, RTP, RTSP and HLS and TS file into SRT, HTTP, UDP, HLS and RTMP protocol. In addition, it integrates IPTV system and users can upload VOD source on it with huge memory. In conclusion, this full function device makes it ideal for small CATV head end system, especial in hotel TV system… About 80 HD/SD programs (Bitrate at 2Mbps) when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization Key Features: IP Gateway + IPTV server in one device; Manage gateway and IPTV server separately; SRT, HTTP, UDP, RTP, RTSP and HLS in→SRT, HTTP, UDP, HLS and RTMP out; IPTV Functions: Live channel, VOD, Hotel intro, Hotel service, Scenery intro, APPS, and so on; Adding scrolling caption, welcome words, pictures, advertisement, video, music in main interface; TS files uploading through Web management; IP anti-jitter function
Full Specifications
| IP Input | DATA CH 1-7 (1000M) ports: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
| IP output | First Data port (1000M): IP out over SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) |
| System | Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s) |
| IPTV system function | support Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction and so on (Please install Dexin IPTV APK) |
| IPTV system main interface | support adding scrolling caption, welcome words, pictures, advertisement, video, music (Please install Dexin IPTV APK) |
| General | Demission |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
| Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| ProtocolConversion | Programs |

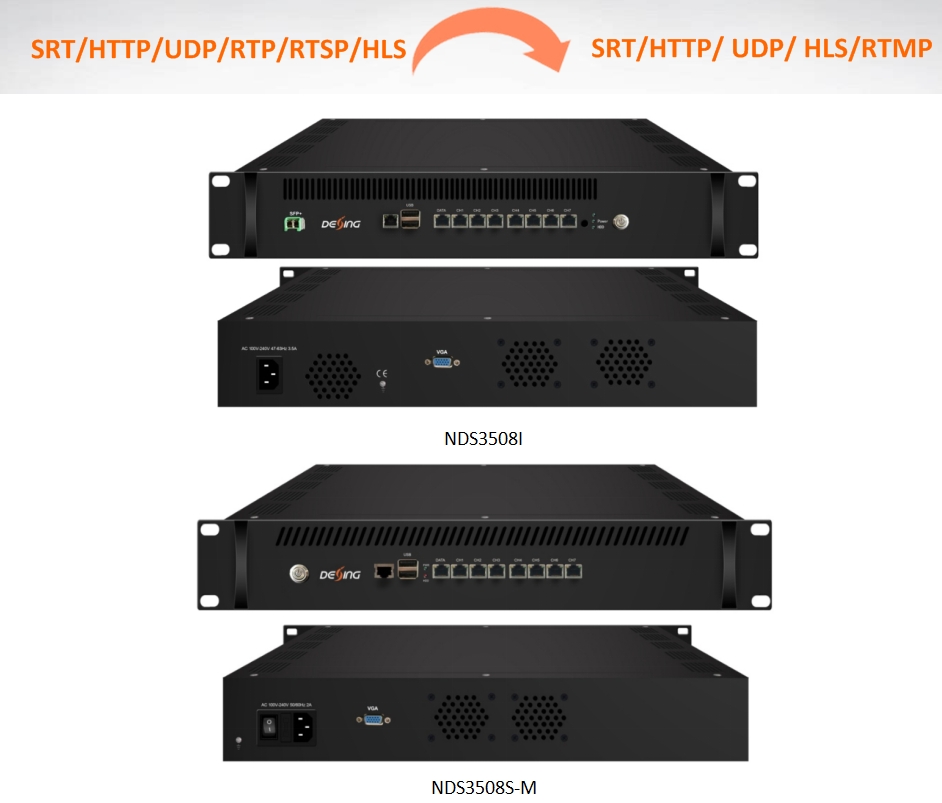

| NDS3508S-M | NDS3508I |
| Model No. | Feature |
| NDS3508F-M | Gateway+IPTV server |
| NDS3508S-M | Gateway+IPTV server |
| NDS3508S-I | Gateway+IPTV server |
| NDS3508I | Gateway+IPTV server |
