NDS3524C Encoder Modulator

Overview

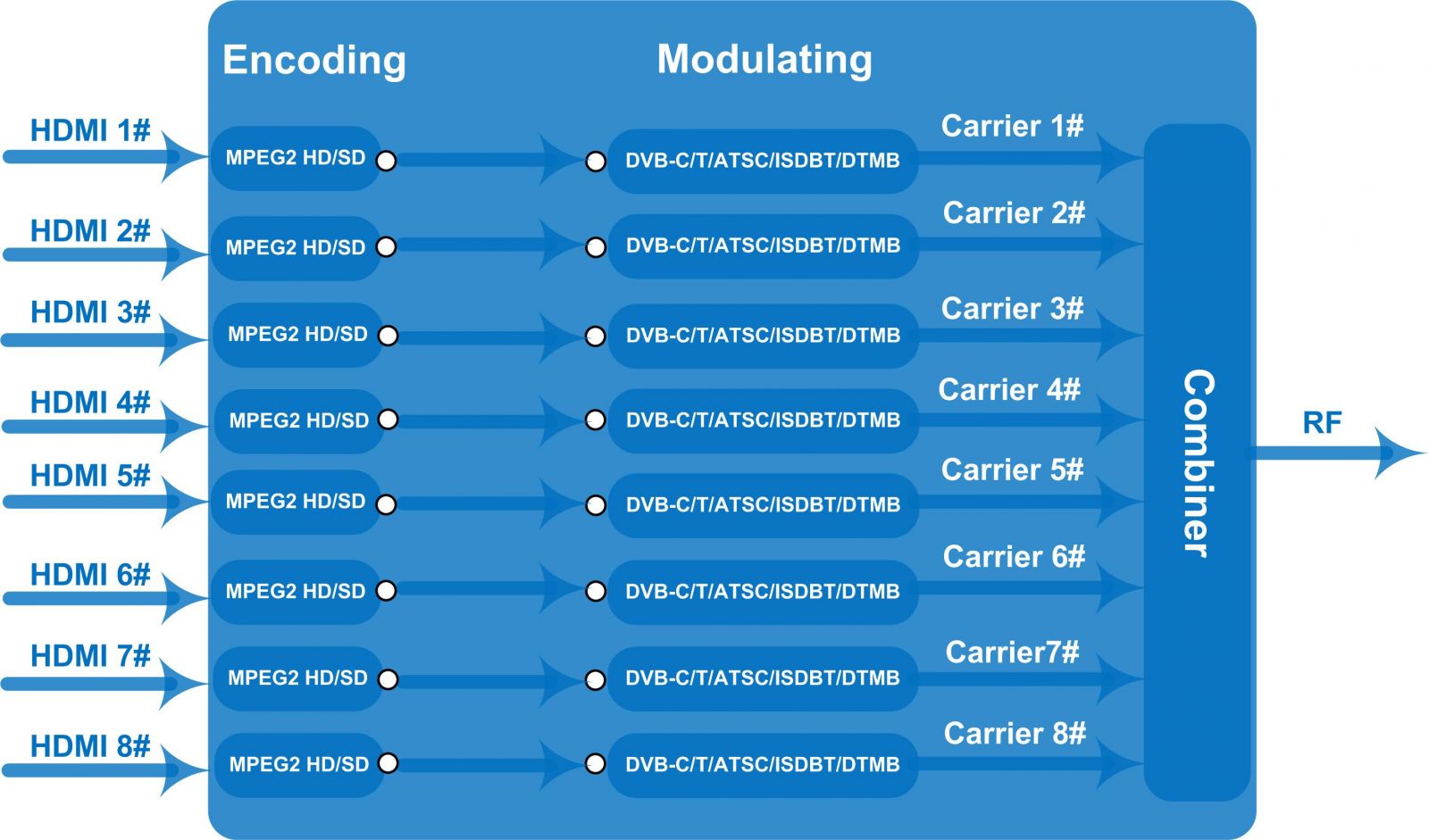

NDS3524C encoder modulator is DEXIN’s all-in-one device integrating MPEG2 encoding and modulating to convert audio/video signals into DVB-C/T/ATSC/ISDB-T/DTMB RF out. It supports 1/4/8 HDMI inputs, and its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, and very reliable with high performance. The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by TVs or STBs etc. (Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) Key Features: Support 1/4/8 HDMI channels input; Support MPEG2 video encoding; Support 1080p/i,720p, 576i , 480i video resolution; Support low latency (50~1000ms); Support CC (Closed Caption), EIA 608; Support LCN (Logical Cluster Number); DVB-C/T/ATSC/ISDB-T/DTMB RF out in one device, Modulation dynamic switching; Each channel supports 1 DVB-C/T/ATSC/ISDB-T/DTMB output option; Control via web-based NMS, and easy updates via web Specifications: 0.8~19Mbps for H.264 encoding; 1~19Mbps for MPEG-2 encoding; HDMI Encoding Section; RF output level; RF output level; RF output level
