NDS3536S-N DTV Processor
HEVC/H.265 & MPEG-4 AVC/H.264 Video encoding. 32 MPTS output over UDP and RTP/RTSP as mirror of 32 DVB-C carriers(or 16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-T/ATSC/ISDB-T carriers for option), 1*1000M Base-T…
Key Specifications
- Encoding HEVC/H.265 & MPEG-4 AVC/H.264
- Max input bitrate ≤170 Mbps per tuner
- Max input bitrate per tuner ≤170 Mbps
- Output 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720×576_25P,720×480_30P,
- Audio Gain 0-255 Adjustable
- Multiplexing Maximum PIDRemapping
- Bit-rate 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
- GOP Structure IP…P (P Frame adjustment)
Overview

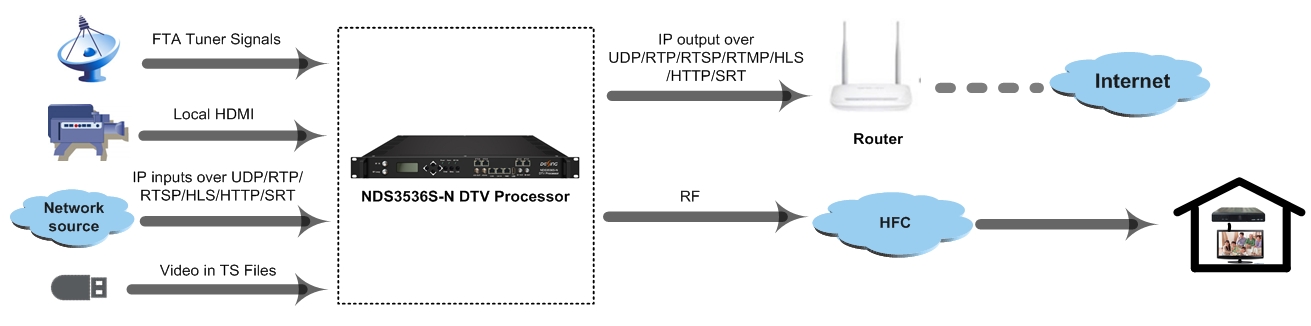

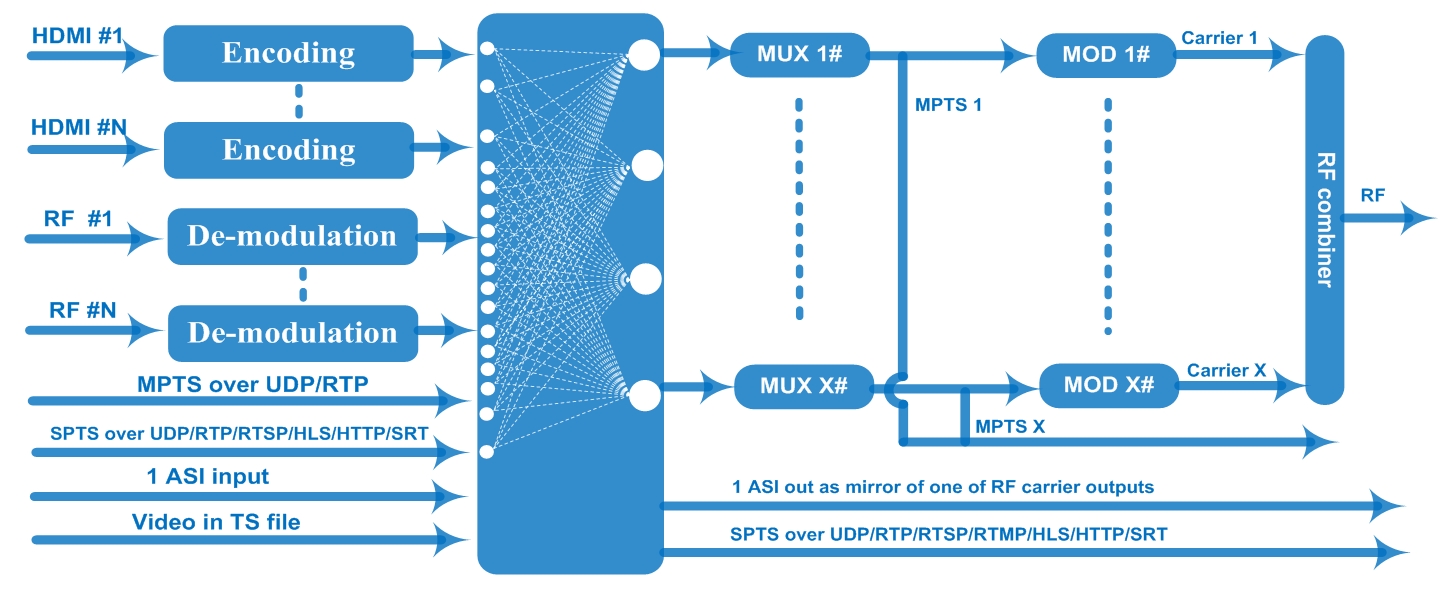

NDS3536S-N DTV processor is a high integration dual platform which includes DVB encoder/IRD-mux-modulator and IPTV streamer in one case. It supports 8/16/24 HDMI (or HDMI plus DVB-S/S2/S2X/C/T/T2/ISDB-T tuner mix input) inputs, 1 ASI input, 1 USB player input and 128 IP inputs via the GE port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports to convert the contents to IP streams out over multiple protocols to fit for internet transmission. Key Features: 8/16/24 HDMI (or HDMI plus DVB-S/S2/S2X/C/T/T2/ISDB-T tuner) inputs,; 1 ASI input for re-mux, TS files input by external USB disk; Support 32ch DVB-C RF out (16ch DVB-T, 16ch ATSC, or 16ch ISDB-T out for option, as per order); IP input over UDP/RTP/RTSP/HLS/HTTP/SRT; Support MPTS IP output over UDP/RTP/RTSP, and SPTS out over UDP/HLS /HTTP /RTP /RTSP /RTMP /SRT Protocol; Support LOGO, Caption and QR code insertion for local made channels; Control via web management, and easy updates via web Specifications: HEVC/H.265 & MPEG-4 AVC/H.264 Video encoding; 1 USB Player input for re-mux (“xxx.ts” video); HEVC/H.265 & MPEG-4 AVC/H.264
Full Specifications
| Output | 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720×576_25P,720×480_30P, |
| Encoding | HEVC/H.265 & MPEG-4 AVC/H.264 |
| Bit-rate | 1Mbps~13Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IP…P (P Frame adjustment) |
| Resolution | 24-bit |
| Audio Gain | 0-255 Adjustable |
| Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| Symbol Rate | 0.5~45 Msps |
| Constellation | QPSK |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Symbol Rate | QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps |
| Constellation | QPSK/8PSK/16APSK/32APSK |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9 |
| Max input bitrate | ≤170 Mbps per tuner |
| DVB-S2X | Symbol Rate |
| Constellation | QPSK/8PSK/16APSK/8APSK/32APSK |
| Max input bitrate per tuner | ≤170 Mbps |
| Signal Strength | -65 ~ -25dBm |
| Multiplexing | Maximum PIDRemapping |
