NDS3542 series encoder modulator
MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding. for MPEG4 AVC/H.264 only). 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only).
Key Specifications

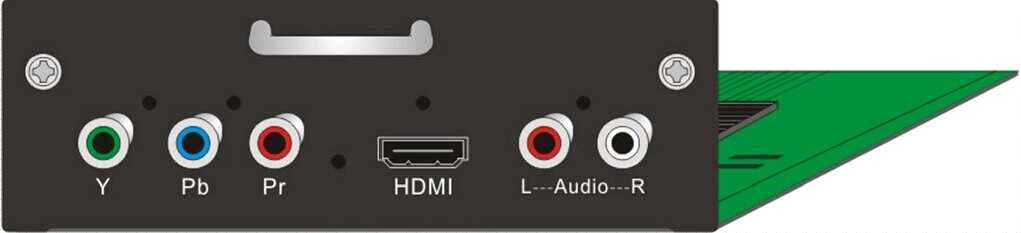

- HDMI/YPbPr/CVBS 3-in-1 Input(under developing) Video(HDMI)
- Encoding MPEG2; MPEG4 AVC/H.264
- Resolution 1920*1080_60P, 1920*1080_50P,(-for MPEG4 AVC/H.264 only)1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50P720*480_60i, 720*576_50i
- Input YpbPr*1 / CVBS *1
- Video(YpbPr/ CVBS) Encoding
- Bitrate 64/96/128/ 192/256/320kbps
- Aspect Ratio 16:9,4:3
- Sample rate 48KHz
Overview

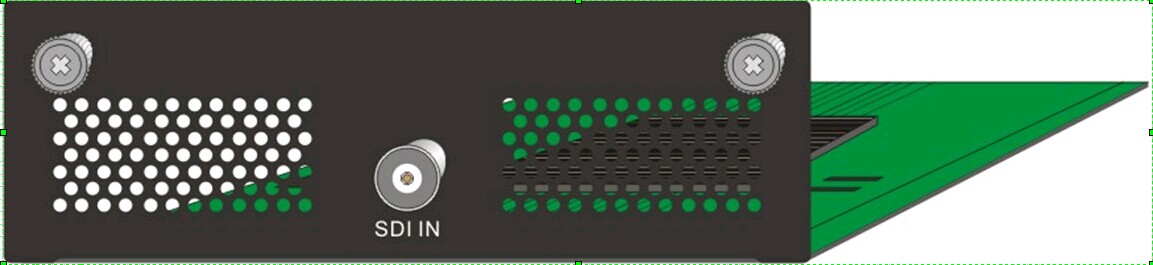

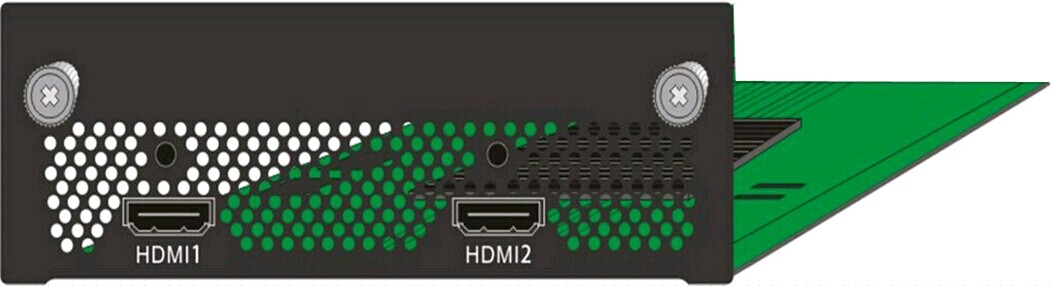

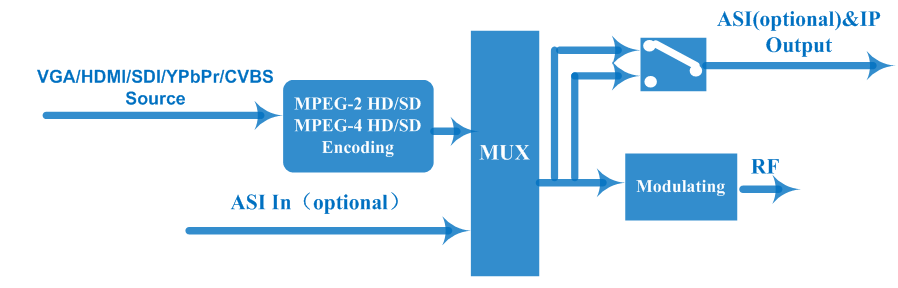

NDS3542 series products are DEXIN’s all-in-one devices which integrate encoding, multiplexing and modulation to convert V/A signals into digital RF output. It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/CVBS/SDI/YPbPr/…) as needed. To meet customers’ various requirements, NDS3542 is also optionally equipped with 1 ASI input for re-mux and 2 ASI out ports. MPTS and SPTS output are available via the gigabit DATA port. HDMI/CVBS/SDI/YPbPr… inputs (Now only HDMI and SDI board are available) Specifications: MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding; With its various inputs available, our NDS3542 series products are widely used in public places such as metro, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital…; Support low delay encoding mode(SDI and HDMI board); Modular design, pluggable encoding modules; MPEG2; MPEG4 AVC/H.264; HDMI/YPbPr/CVBS 3-in-1 Input; MPEG2; MPEG4 AVC/H.264; -for MPEG4 AVC/H.264 only)
Full Specifications
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Bitrate | 1-19.5Mbps |
| Resolution | 1920*1080_60P, 1920*1080_50P,(-for MPEG4 AVC/H.264 only)1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50P720*480_60i, 720*576_50i |
| Low Delay | Normal, Mode 1, Mode 2 |
| Chroma | 4:2:0 |
| Aspect Ratio | 16:9,4:3 |
| Sample rate | 48KHz |
| Bitrate | 64/96/128/ 192/256/320kbps |
| HDMI/YPbPr/CVBS 3-in-1 Input(under developing) | Video(HDMI) |
| Input | HDMI*1 |
| Bitrate | 1-19.5Mbps |
| Resolution | 1920*1080_60P, 1920*1080_50P,-for MPEG4 AVC/H.264 only)1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50P720*480_60i, 720*576_50i |
| Low Delay | Normal, Mode 1, Mode 2 |
| Chroma | 4:2:0 |
| Aspect Ratio | 16:9,4:3 |
| Input | HDMI*1 |
| Sample rate | 48KHz |
| Bitrate | 64/96/128/ 192/256/320kbps |
| Video(YpbPr/ CVBS) | Encoding |
| Input | YpbPr*1 / CVBS *1 |
