NDS3542A（V2）4K Encoder Modulator
2 or 4 HDMI inputs with H.265/h.264 video（4K encoding for H.265 only）. IP output over UDP, RTP/RTSP from the 100/1000M self-adaptive data port. 2 ASI out(BNC type, same one mirror out TS as one of 4/2 MPTS outputs.
Key Specifications
- Encoding HEVC/ H.265 , MPEG 4 AVC/H.264
- Input 2/4 HDMI in. 2/4 HDMI loop out1 ASI in for re-mux
- Chroma Input:4:4:4/4:2:2; output:4:2:0
- RF output level -20~+3dbm, 0.1db step
- Constellation QPSK, 16QAM, 64QAM
- Multiplexing Maximum PIDRemapping
- Bit-rate 18Kbps~384Kbps
- GOP Structure IBBP, IPPP
Overview

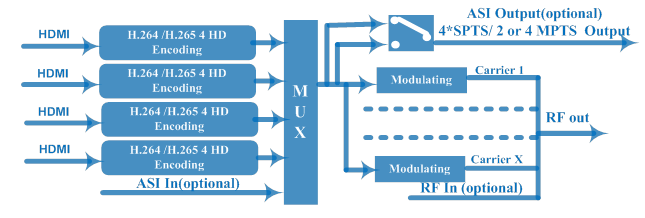

NDS3542A V2 4K encoder modulator is DEXIN’s new breakthrough all-in-one devices which integrate encoding (H.264 /H.265) and modulating to convert V/A signals into Digital RF output. It is equipped with 4 HDMI channels input and 1 ASI input(optional) and output via 2 ASI ports(optional) and 1 DATA (4*SPTS or 2 or 4 MPTS--as per carrier numbers)output over UDP, RTP/RTSP. The latency has been greatly reduced to achieve an extremely low value from the encoding progress to the decoding terminals. It adopts an inner drawer-type structural design which greatly facilitates the change of encoding modules as needed. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Specifications: *2 or 4 HDMI inputs with H.265/h.264 video（4K encoding for H.265 only）; HEVC/ H.265 , MPEG 4 AVC/H.264; 255 input per channel; *IP output over UDP, RTP/RTSP from the 100/1000M self-adaptive data port; *Excellent modulation quality; RF output level; RF output level; RF output level
Full Specifications
| Input | 2/4 HDMI in. 2/4 HDMI loop out1 ASI in for re-mux |
| Encoding | HEVC/ H.265 , MPEG 4 AVC/H.264 |
| Bit-rate | 2Mbps~20Mbps |
| Rate Control | CBR/VBR |
| Chroma | Input:4:4:4/4:2:2; output:4:2:0 |
| GOP Structure | IBBP, IPPP |
| Bit-rate | 18Kbps~384Kbps |
| Multiplexing | Maximum PIDRemapping |
| Function | PID remapping ( automatically or manually) |
| Modulation | DVB-C |
| Standard | EN300 429/ITU-T J.83A/B |
| MER | ≥40db |
| RF frequency | 50~960MHz, 1KHz step |
| RF output level | -20~+3dbm, 0.1db step |
| Symbol Rate | 3.000~9.000Msps adjustable |
| Constellation | J.83A |
| 16/32/64/128/256QAM | 64/256QAM |
| Transmission Mode | 2K,4K, 8K |
| Bandwidth | 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
