NDS3542B MPEG2/MPEG4 4-in-1 Encoder Modulator
4xDVB-C carriers out (4x DVB-T, 2x ISDB-T, 4x ATSC carriers out optional); IP out. 2 ASI out (BNC type, the same one mirror ts out as one of 4/2 MPTS outputs and 4 SPTS outputs). MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding.
Key Specifications
- Encoding MPEG2; MPEG4 AVC/H.264
- Resolution 1920*1080_60P, 1920*1080_50P (-for MPEG4 AVC/H.264 only)1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50P
- Interface HDMI*4 /SPDIF*4/Audio(L/R)*4
- Bitrate 64/96/128/ 192/256/320kbps
- Aspect Ratio 16:9,4:3
- Sample rate 48KHz
- Low Delay Normal, Mode 1, Mode 2, Manual
- Chroma 4:2:0
Overview

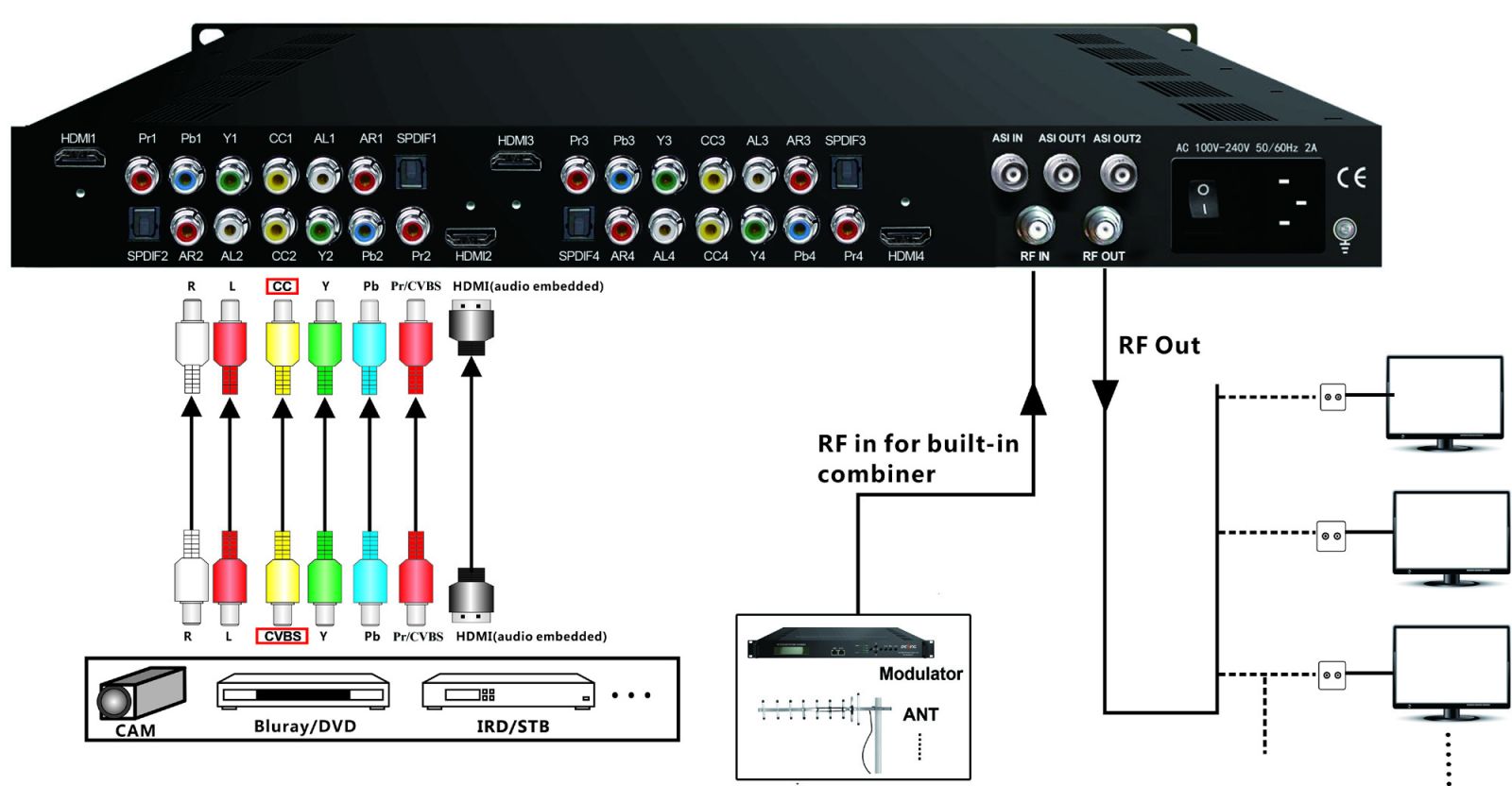

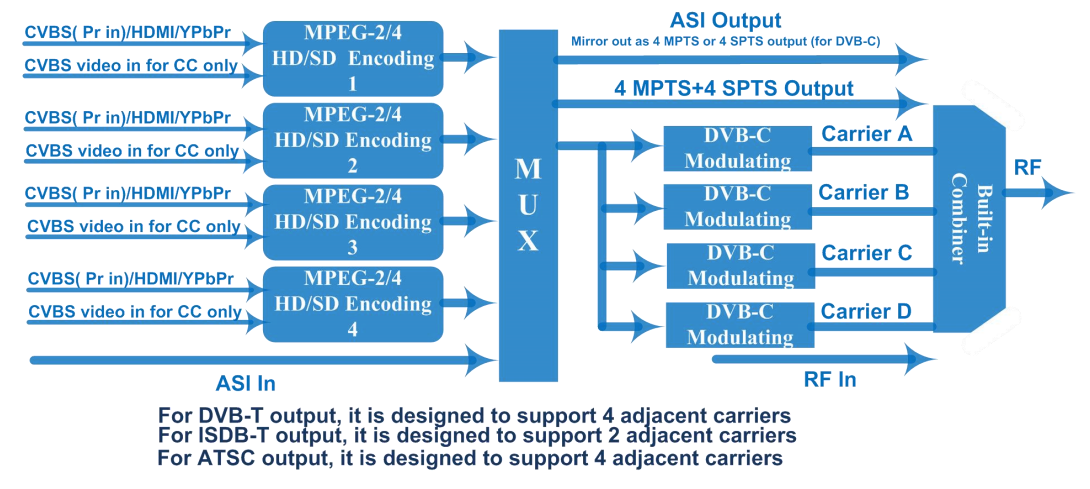

To meet customers’ various requirements, NDS3542B is also equipped with 1 ASI input(optional), and output with 2 ASI ports (optional) and 1 DATA port. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard. Key Features: MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding; Resolution Downscale (the same frame rate); 4x HDMI/YPbPr/CVBS (Pr in) channels in; 1x ASI in for re-mux and 2xASI out(optional); 1xRF in for RF mix; 4xDVB-C carriers out (4x DVB-T, 2x ISDB-T, 4x ATSC carriers out optional); IP out; Support CC (Closed Caption) Line 21 (from CVBS source only); Support Low Delay; LCN (Logical Channel Number) support; VCT (Virtual Channel Table) support— for DVB-C and ATSC; Excellent modulation quality; LCD display, Remote control and firmware; Web-based NMS management; Updates via web Specifications: MPEG2; MPEG4 AVC/H.264; 1920*1080_60P, 1920*1080_50P (-for MPEG4 AVC/H.264 only); MPEG2; MPEG4 AVC/H.264; Available Out Resolution; RF output level; RF output level; RF output level; RF output level
Full Specifications
| Encoder Section | HDMI |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Bitrate | 1-19.5Mbps |
| Resolution | 1920*1080_60P, 1920*1080_50P (-for MPEG4 AVC/H.264 only)1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50P |
| Low Delay | Normal, Mode 1, Mode 2, Manual |
| Chroma | 4:2:0 |
| Aspect Ratio | 16:9,4:3 |
| Dialog Normalization | -31 ~ -1 dB (Applicable for DD AC3 only) |
| Sample rate | 48KHz |
| Bitrate | 64/96/128/ 192/256/320kbps |
| Interface | CVBS/YPbPr*4 (RCA) |
| Bitrate | 1-19.5Mbps |
| Resolution | YPbPr:1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50PCVBS:720*480_60i, 720*576_50i |
| Low Delay | Normal, Mode 1, Mode 2, Manual |
| Chroma | 4:2:0 |
| Aspect Ratio | 16:9,4:3 |
| Interface | HDMI*4 /SPDIF*4/Audio(L/R)*4 |
| Dialog Normalization | -31 ~ -1 dB (Applicable for DD AC3 only) |
| Sample rate | 48KHz |
| Bitrate | 64/96/128/ 192/256/320kbps |
