NDS3542C MPEG2 HD MPEG4 HD 2-in-1 encoder modulator

Overview

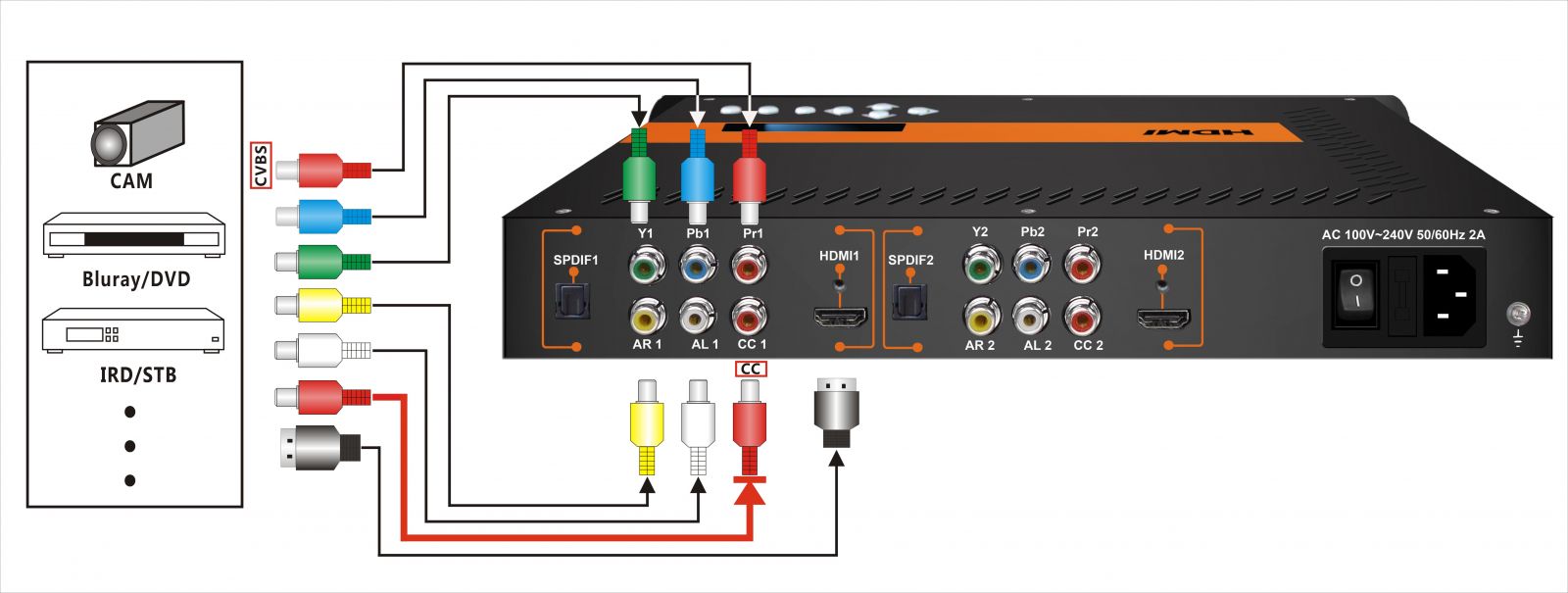

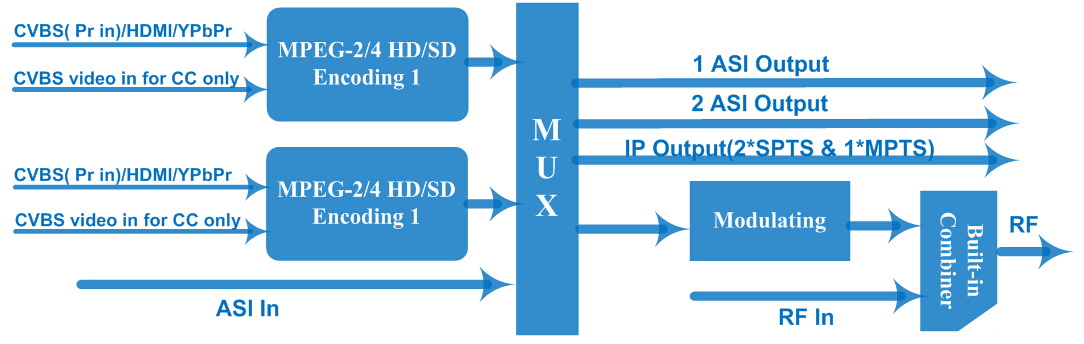

NDS3542C series products are DEXIN’s all-in-one devices which integrate encoding (MPEG-2, MPEG-4/AVC H.264) and modulating to convert HDMI/YPbPr /CVBS (Pr in) signals etc to digital RF output. To meet customers’ various requirements, NDS3542C is also equipped with 1 ASI input, and output with 2 separate ASI ports and 1 IP port. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard. Key Features: MPEG2 HD & MPEG4 AVC H.264 HD video encoding; Support DD AC3 (2.0/5.1/7.1) passthrough (for HDMI and SPDIF interface); Support AC3 Dialog Normalization; 2* HDMI/YPbPr/CVBS (Pr in) channels in; 1*ASI in for re-mux; 1*RF in for RF mix; 4* DVB-C/4* ATSC/2* DVB-T/1*ISDBT RF out in one device,; Support DVB-C & ATSC& DVB-T& ISDBT modulation dynamic switching; 2 separate ASI output to mirror MPTS or one carrier programs;; IP (2*SPTS & 1*MPTS) out over UDP/RTP/RSTP; Support CC (Closed Caption) EIA608; Support Low Delay; LCN (Logical Channel Number) support Specifications: (only for DVB-C modulation)  protocol; MPEG2; MPEG4 AVC/H.264; MPEG2

Full Specifications
