NDS3542HB Encoder Modulator
8/12/16/24 A/V inputs with MPEG-2, MPEG4 AVC/H.264 Encoding. 4*RF DVB-C out (4 carriers combined output). 4*RF DVB-T out (4 carriers combined output).
Key Specifications

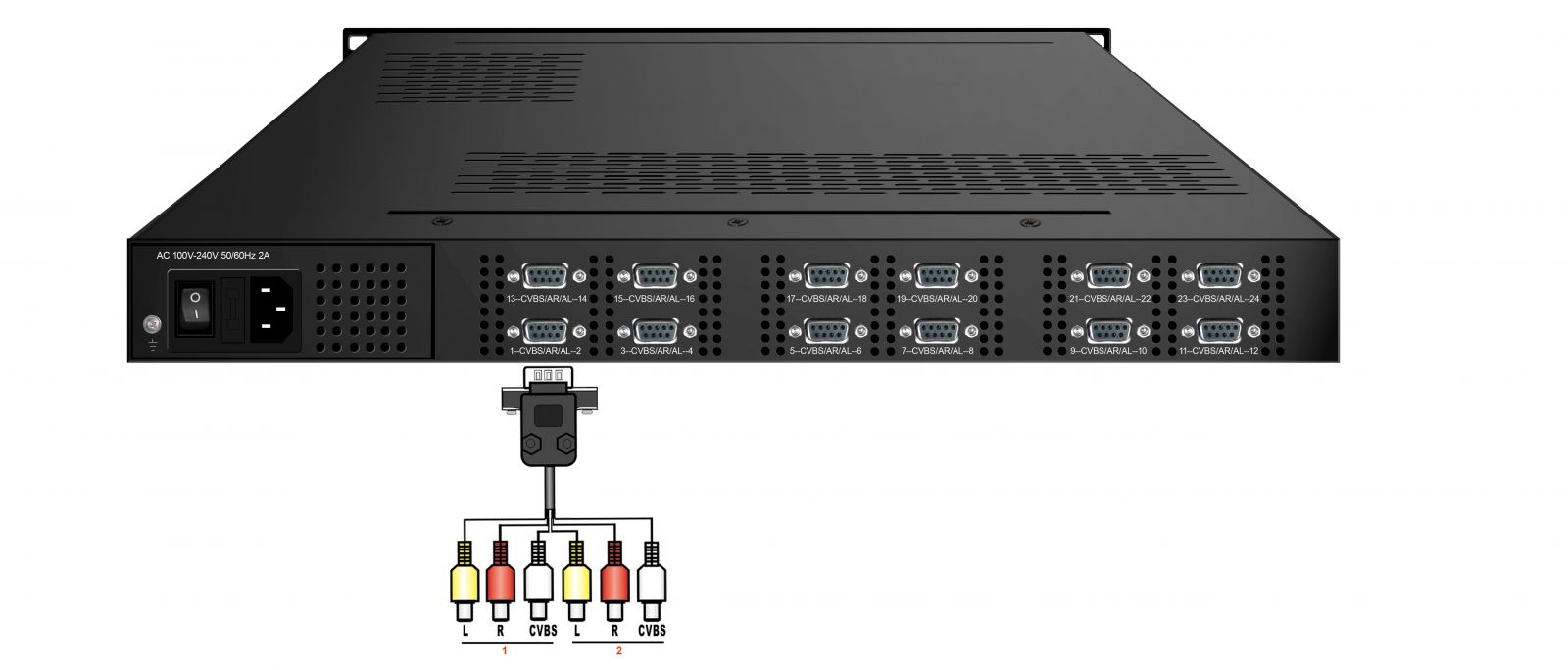

- Input 8/12/16/24 CVBS inputs , RCA interface ,1 DVB-C/T/(T)/ISDBT/S/S2 (Optional) Tuner for re-mux, F type interface128 IP input over UDP and RTP through DATA1 and DATA2, RJ45
- Encoding MPEG-2, MPEG4 AVC/H.264
- Bit-rate 48Kbps~384Kbps (each channel)
- Video Resolution 720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz
- RF output level -25~-1dBm, 1dBm step
- Multiplexing Maximum PIDRemapping
- GOP Structure IPPP, IBPBP, IBBPB, IBBBP
- Modulation DVB-C
Overview

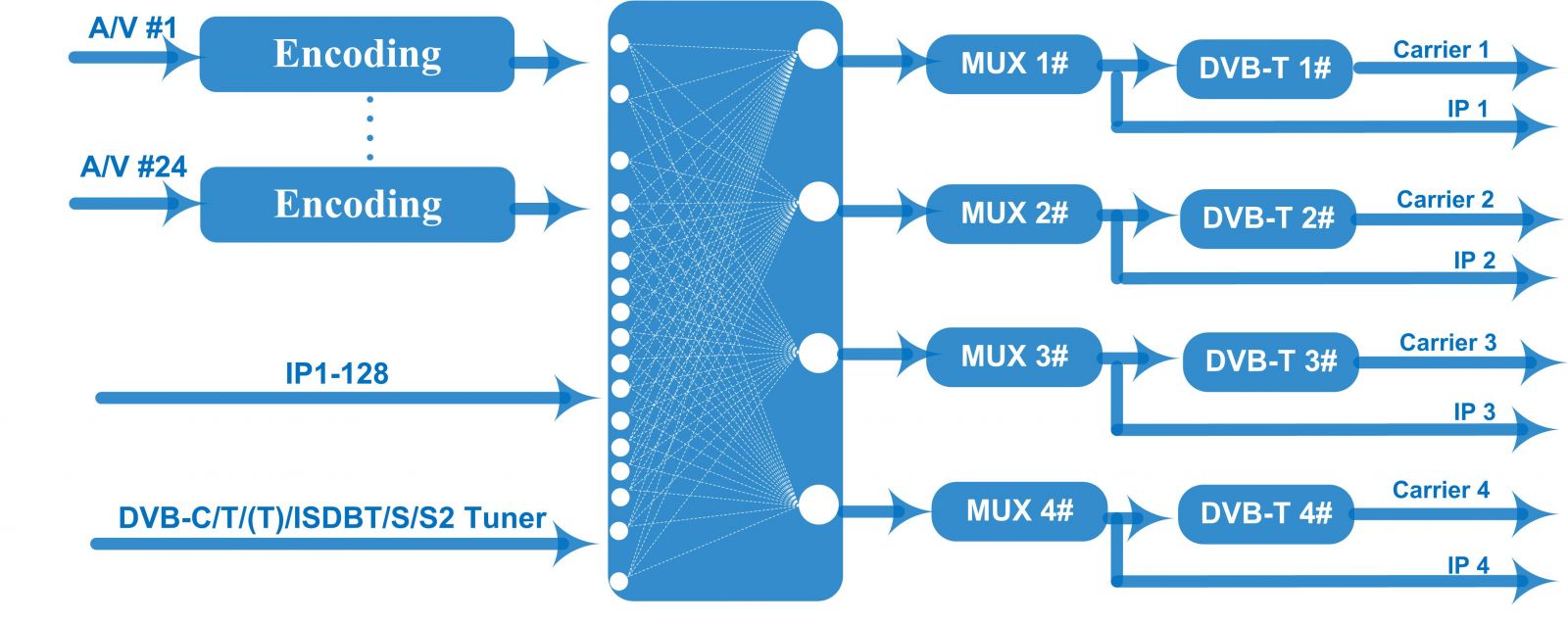

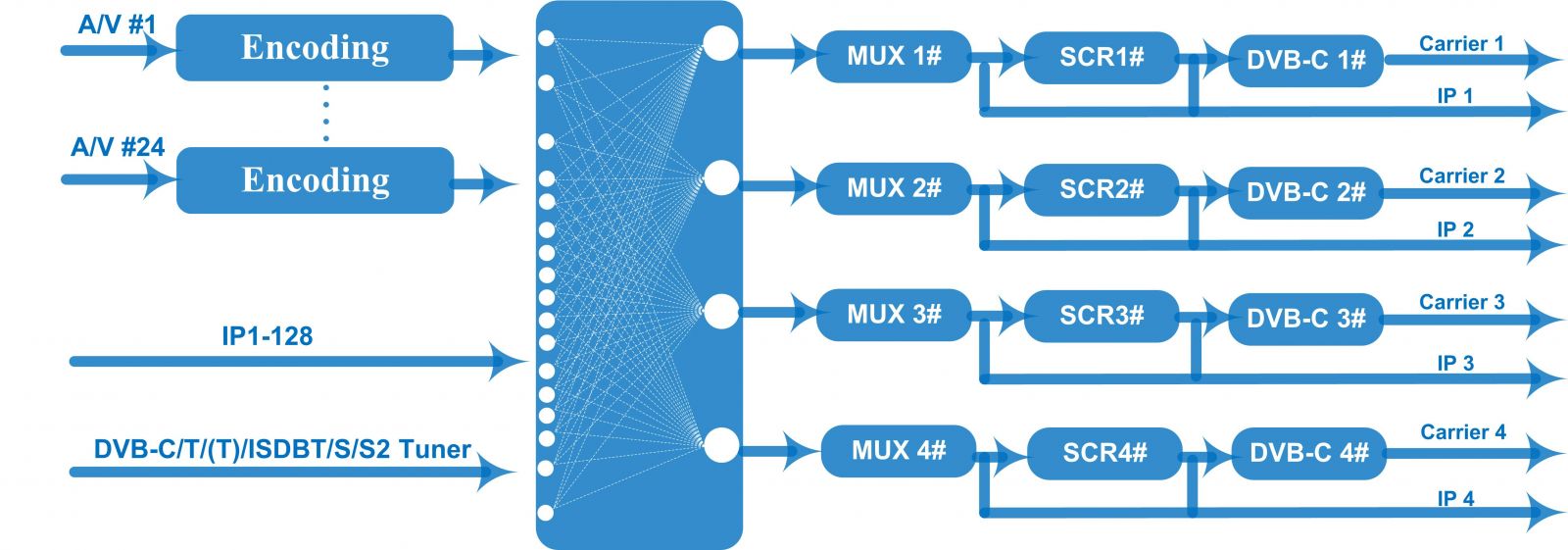

NDS3542HB SD encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. It supports 8/12/16/24 CVBS inputs, one tuner input and 128 IP input through Data1 (GE) and Data2 (FE) port. It also supports 4 DVB-C/T RF out and 4 MPTS out. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment… Key Features: 8/12/16/24 A/V inputs with MPEG-2, MPEG4 AVC/H.264 Encoding; 1 DVB-C/T/(T)/ISDBT/S/S2 (Optional) tuner input for re-mux; 128 IP input (Data1&Data2) over UDP and RTP protocol; Support 4 MPTS IP (DATA1 port only) output over UDP and RTP protocol; 4 DVB-C or 4 DVB-T RF out; Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting; Support Logo, QR code, Caption insertion; Control via web management, and easy updates via web Specifications: 8/12/16/24 CVBS inputs , RCA interface ,; RF output (F type interface); 4 IP MPTS output over UDP/RTP through Data1 (1000M Base-T Ethernet interface); 128 PID input per channel; 1 DVB-C/T/(T)/ISDBT/S/S2 (Optional) Tuner for re-mux, F type interface
Full Specifications
| Input | 8/12/16/24 CVBS inputs , RCA interface ,1 DVB-C/T/(T)/ISDBT/S/S2 (Optional) Tuner for re-mux, F type interface128 IP input over UDP and RTP through DATA1 and DATA2, RJ45 |
| Video Resolution | 720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz |
| Encoding | MPEG-2, MPEG4 AVC/H.264 |
| Bit-rate | 0.5~5Mbps |
| Rate Control | CBR/VBR |
| GOP Structure | IPPP, IBPBP, IBBPB, IBBBP |
| Advanced Pretreatment | De-interlacing, noise reduction |
| Bits per sample | 32-bit |
| Bit-rate | 48Kbps~384Kbps (each channel) |
| Multiplexing | Maximum PIDRemapping |
| Function | PID remapping ( automatically or manually) |
| Scrambling (Only for DVB-C RF out) | Maximum simulcrypt CA |
| Standard | EN300 429/ITU-T J.83A/B |
| Connection | Local/remote connection |
| Modulation | DVB-C |
| Standard | EN300 429/ITU-T J.83A/B |
| MER | ≥40dB |
| RF frequency | 50~960MHz, 1KHz step |
| RF output level | -25~-1dBm, 1dBm step |
| Symbol Rate | 5.0Msps~7.0Msps, 1ksps step |
